Yamaha HS5 MP Matched Pair Monitor Speakers

Yamaha HS5 MP Matched Pair Monitor Speakers

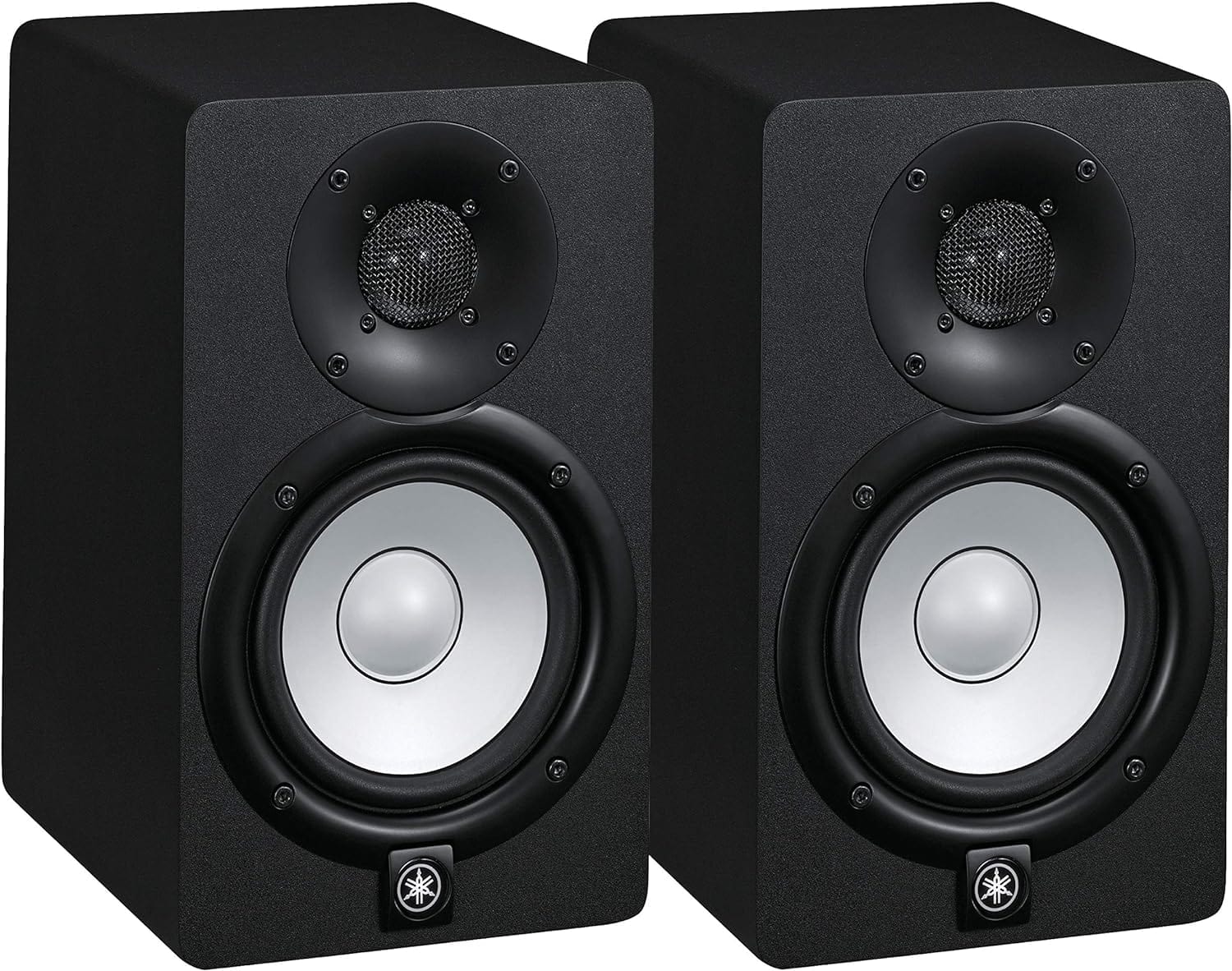

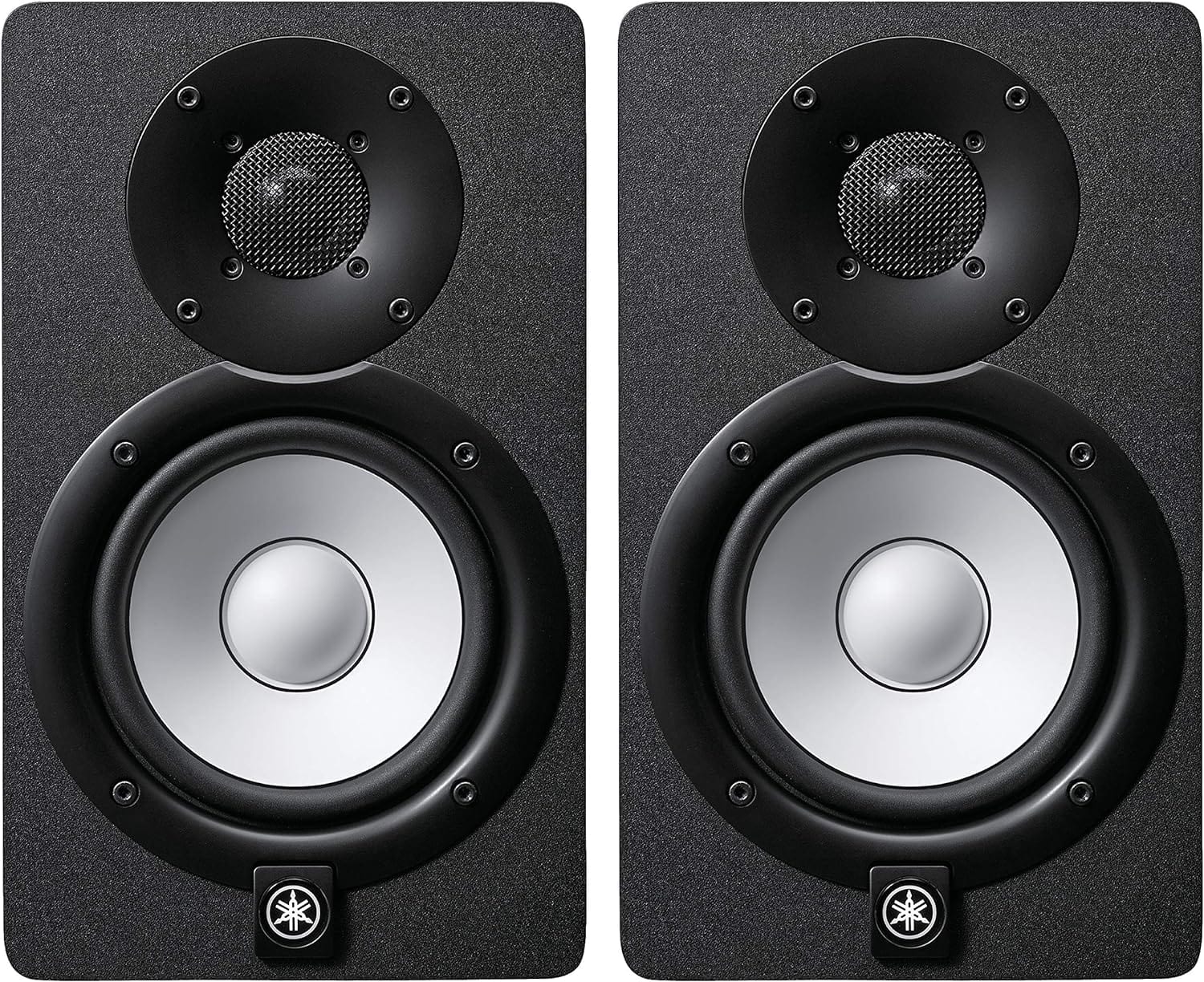

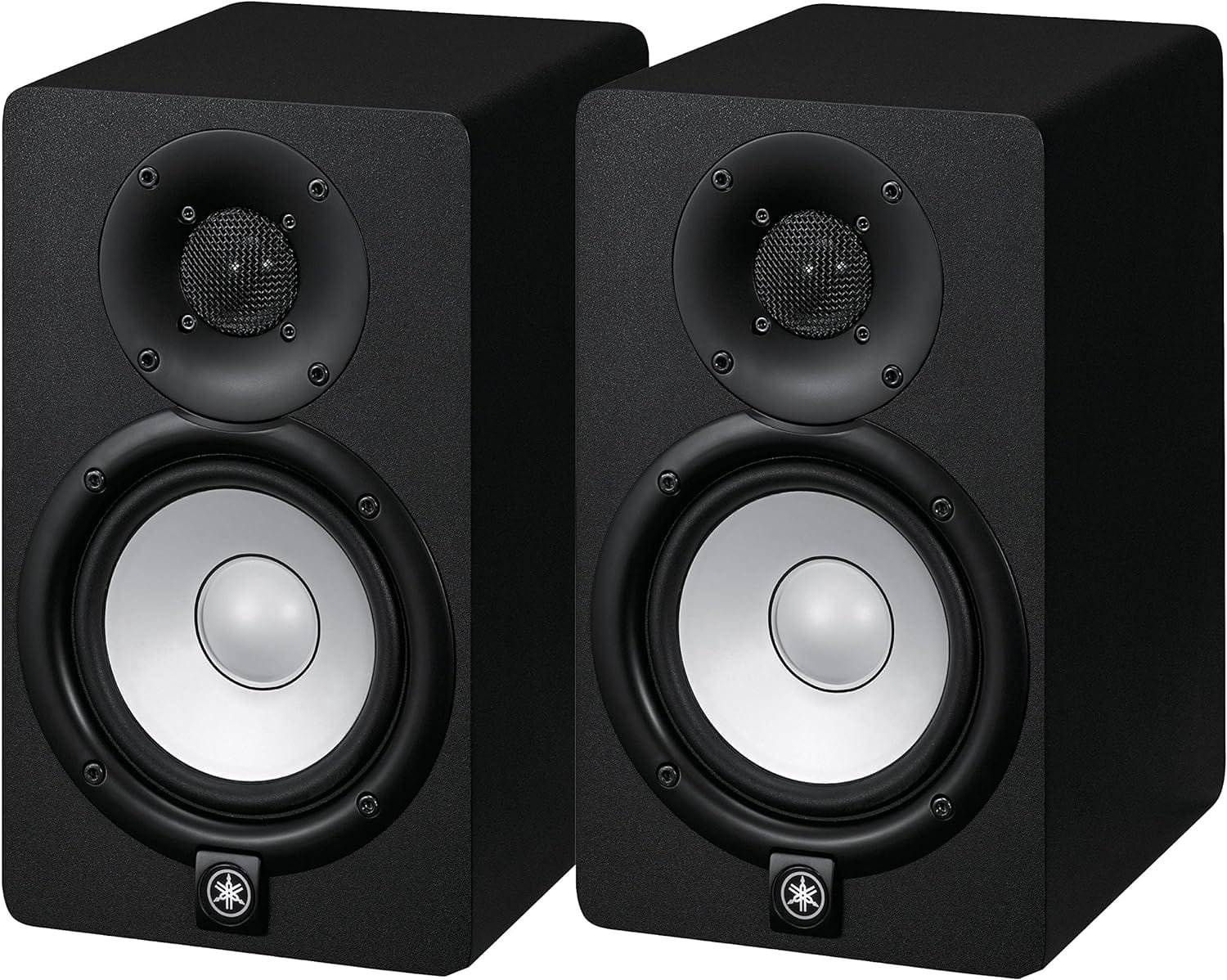

The black HS5 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 70W of total output and features a 5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30 kHz. The HS5 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

Features:

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
• 54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
• ROOM CONTROL and HIGH TRIM response controls

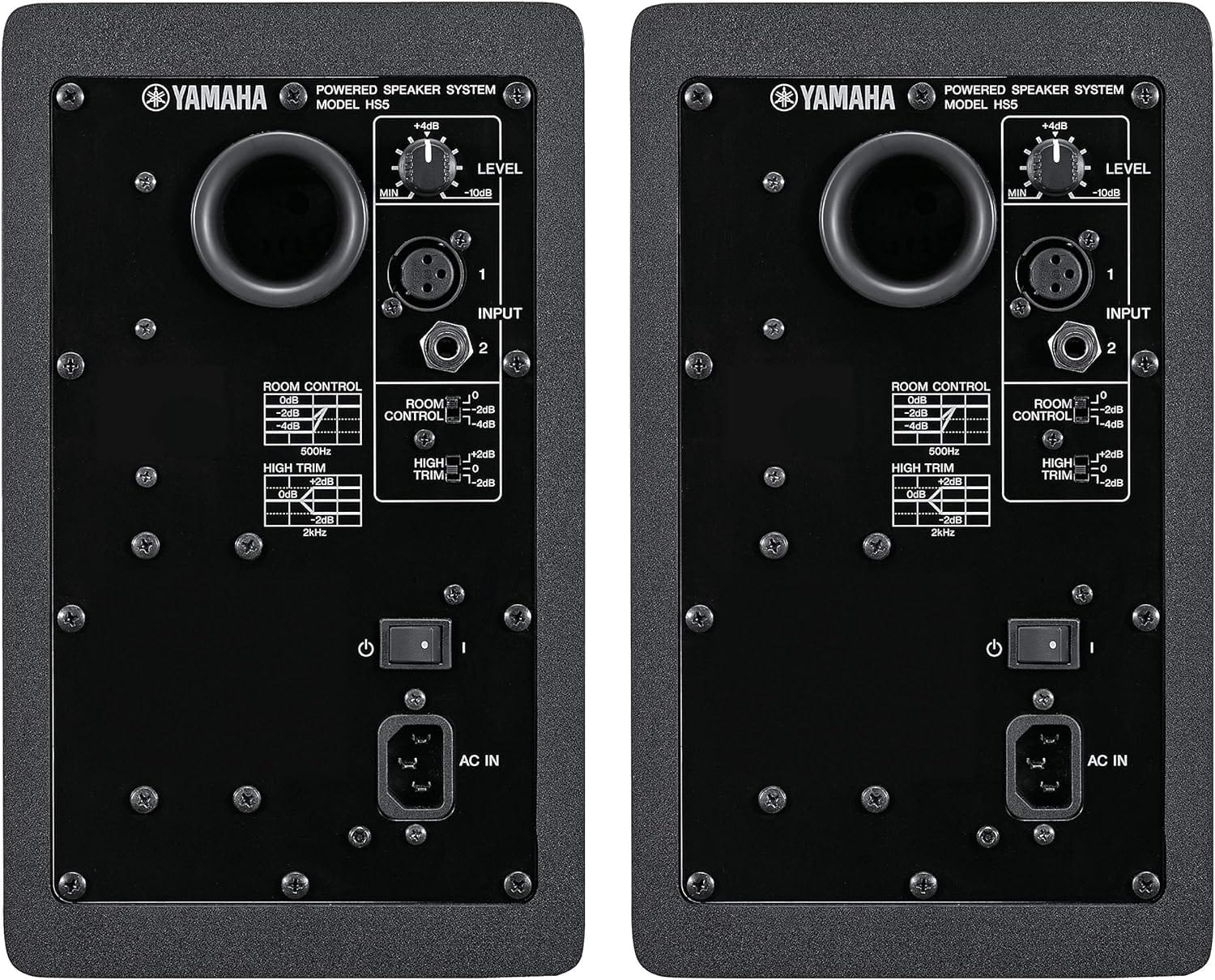

• XLR and TRS phone jack inputs accept balanced or unbalanced signals

Specifications:

• Number of speakers: 2 (Matched Pair)
• Speaker type: 2-way bi-amp powered studio monitor
• Frequency range (-10dB): 54Hz - 30kHz
• Components: LF 5" cone, HF 1" dome
• Crossover: 2kHz
• Output power: 70W (LF:45W, HF:25W)
• I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
• Power consumption: 45W
• Shape: Bass-reflex type
• Cabinet material: MDF
• Dimensions:
  • Width (each): 170mm (6.7")
  • Height (each): 285mm (11.2")
  • Depth (each): 222mm (8.7")
  • Net weight (each): 5.3kg (11.7 lbs.)
• Controls:
  • LEVEL control (+4dB/center click)
  • EQ: HIGH TRIM switch (+/- 2dB at HF)
  • ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
