Yamaha DM7 Control Expansion Controller

Yamaha DM7 Control Expansion Controller

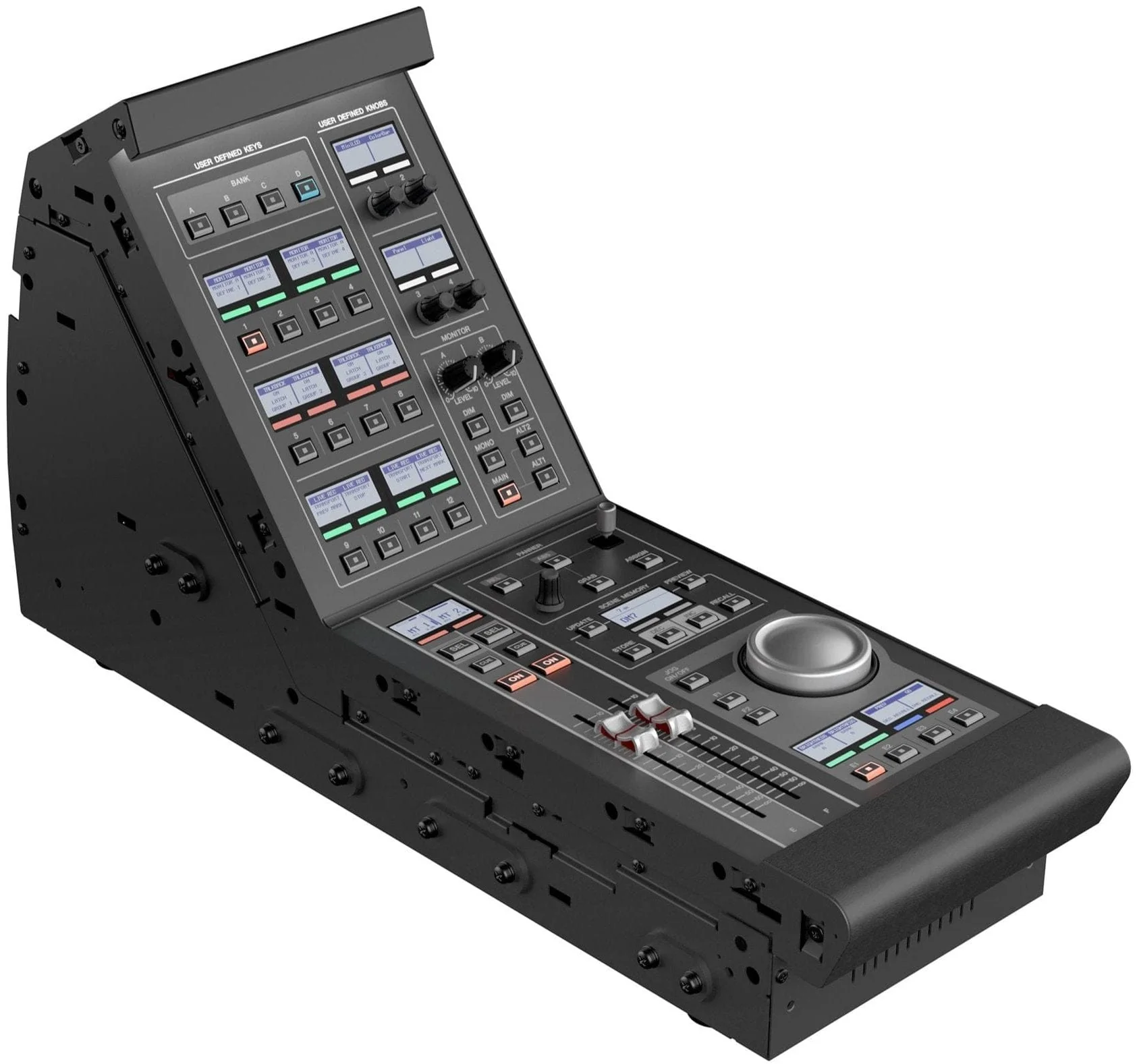

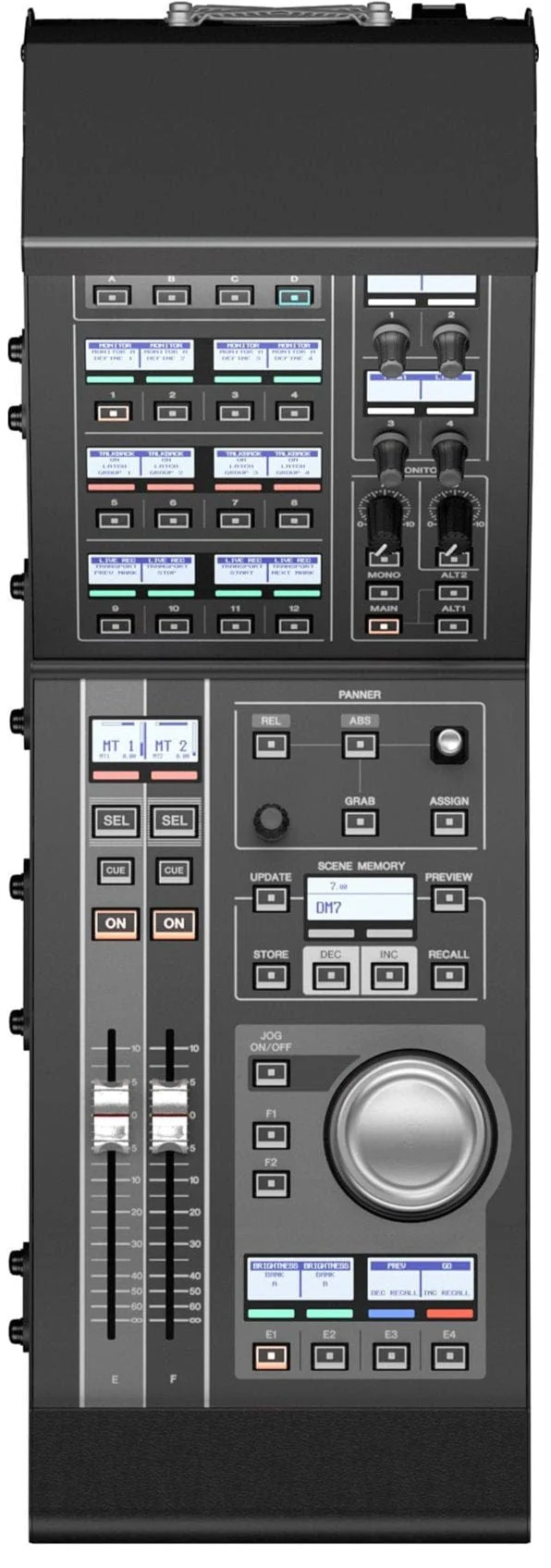

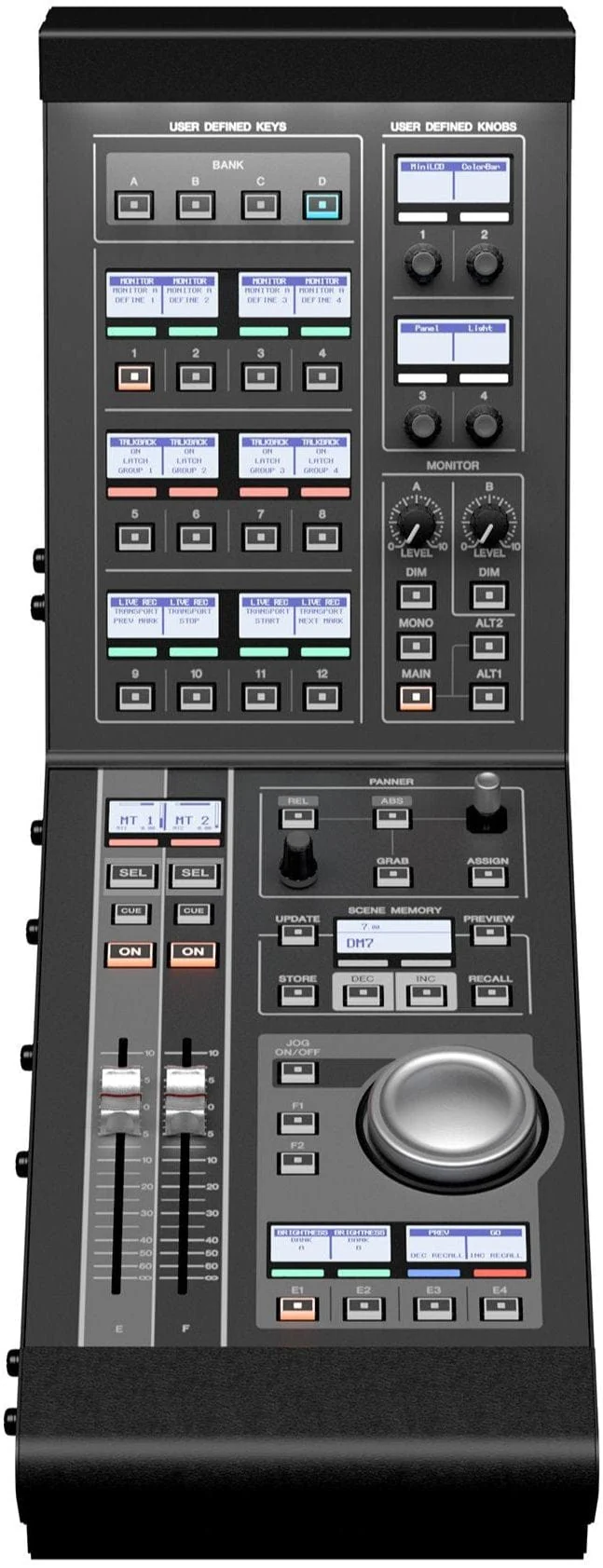

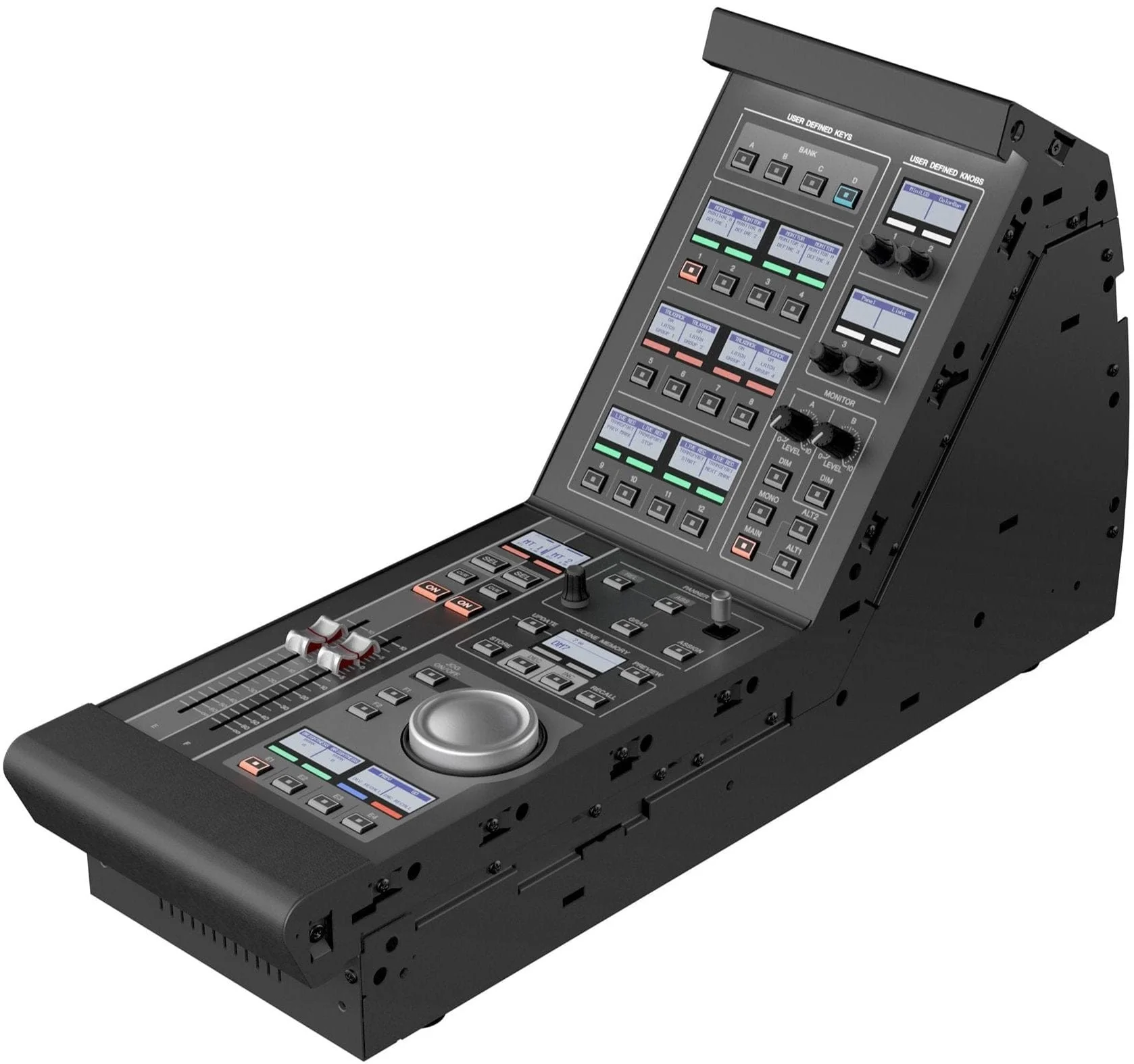

The DM7 Control is an expansion controller with a variety of physical control devices that can be used to conveniently control functions for a number of applications, such as User Defined Keys, Scene Memory keys, Monitor Control keys and knobs, and Panner joystick. The Broadcast / Theatre Package is included with the DM7 Control controller.

* Side pads not included.

• Faders: 2
• User Defined Keys: 16
• User Defined Knobs: 4
• Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec
• Monitor Control for Monitor A/B
• Panner: 1
• Jog Wheel: 1

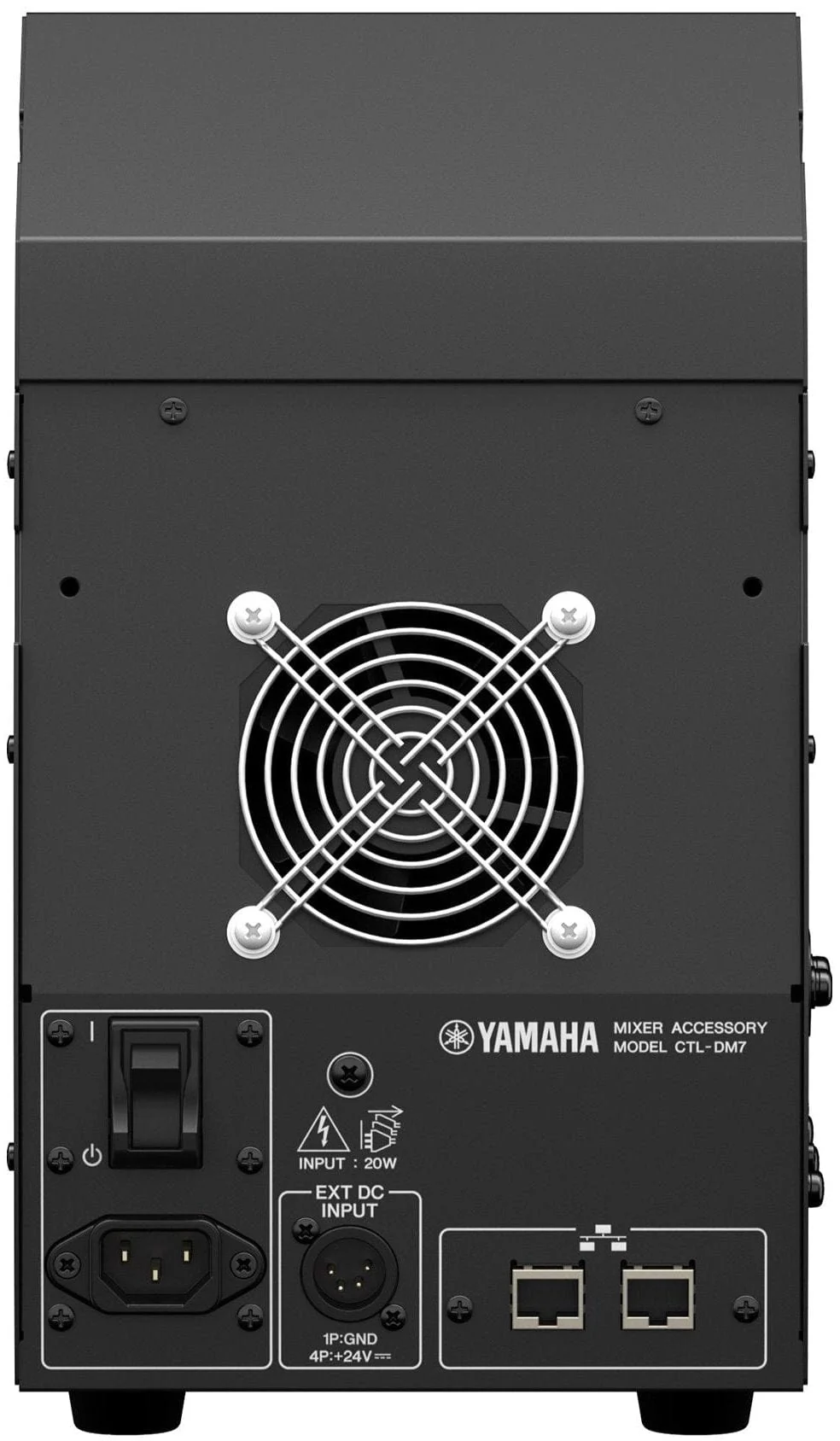

• Dual power supplies (AC INPUT and EXT DC INPUT) - optional PA-700 AC adaptor available for redundancy
• Power consumption: 20 W
• Dimensions (W x H x D): 191 mm x 323 mm x 562 mm (7.6" x 12.8" x 22.2")
• Net Weight: 7 kg (15.5 lb)

Racks:

• Yamaha Rio1608-D3 I/O Rack
• Yamaha Rio3224-D3 I/O Rack
• Yamaha RPio222 I/O Rack
• Yamaha RPio622 I/O Rack
