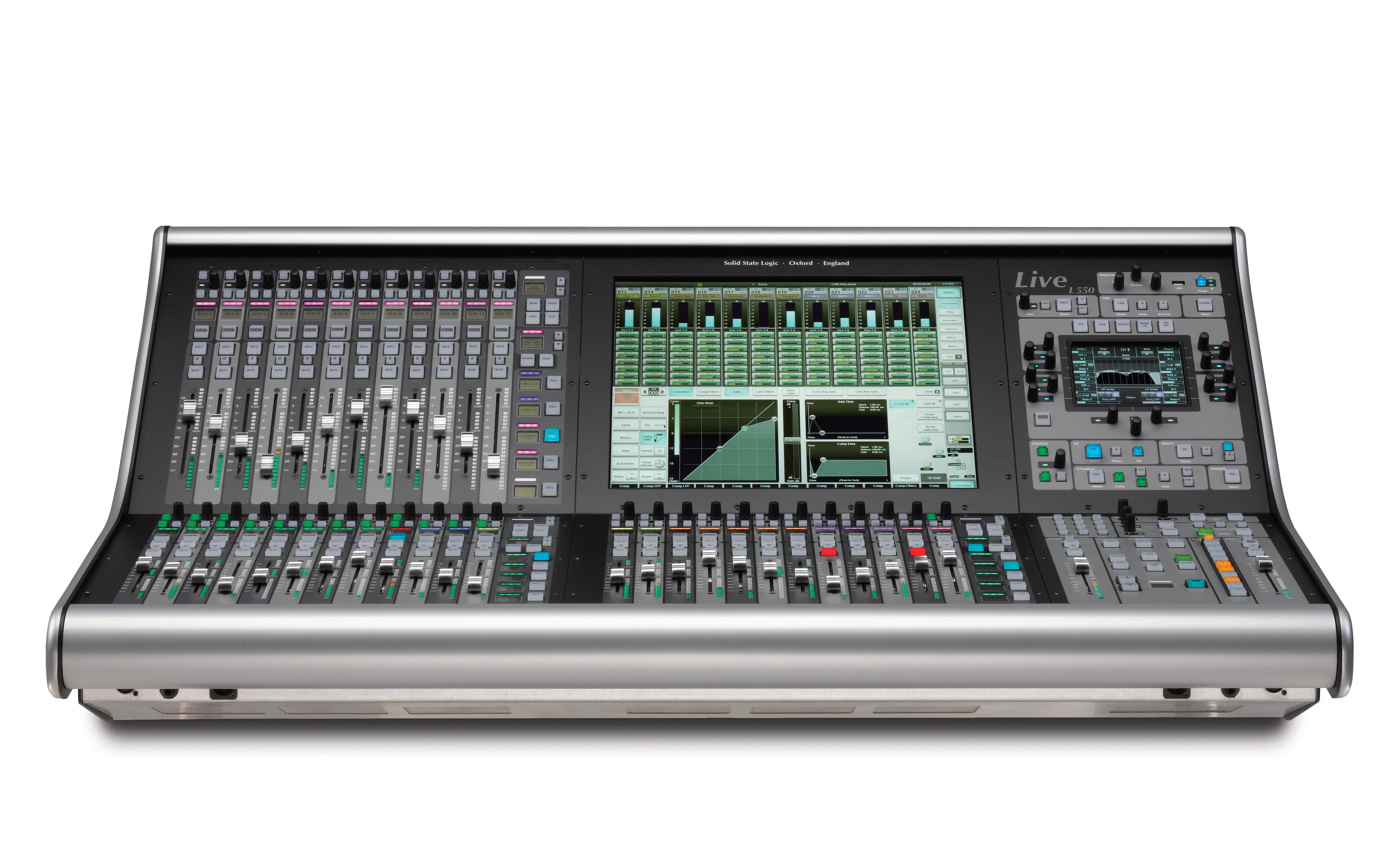

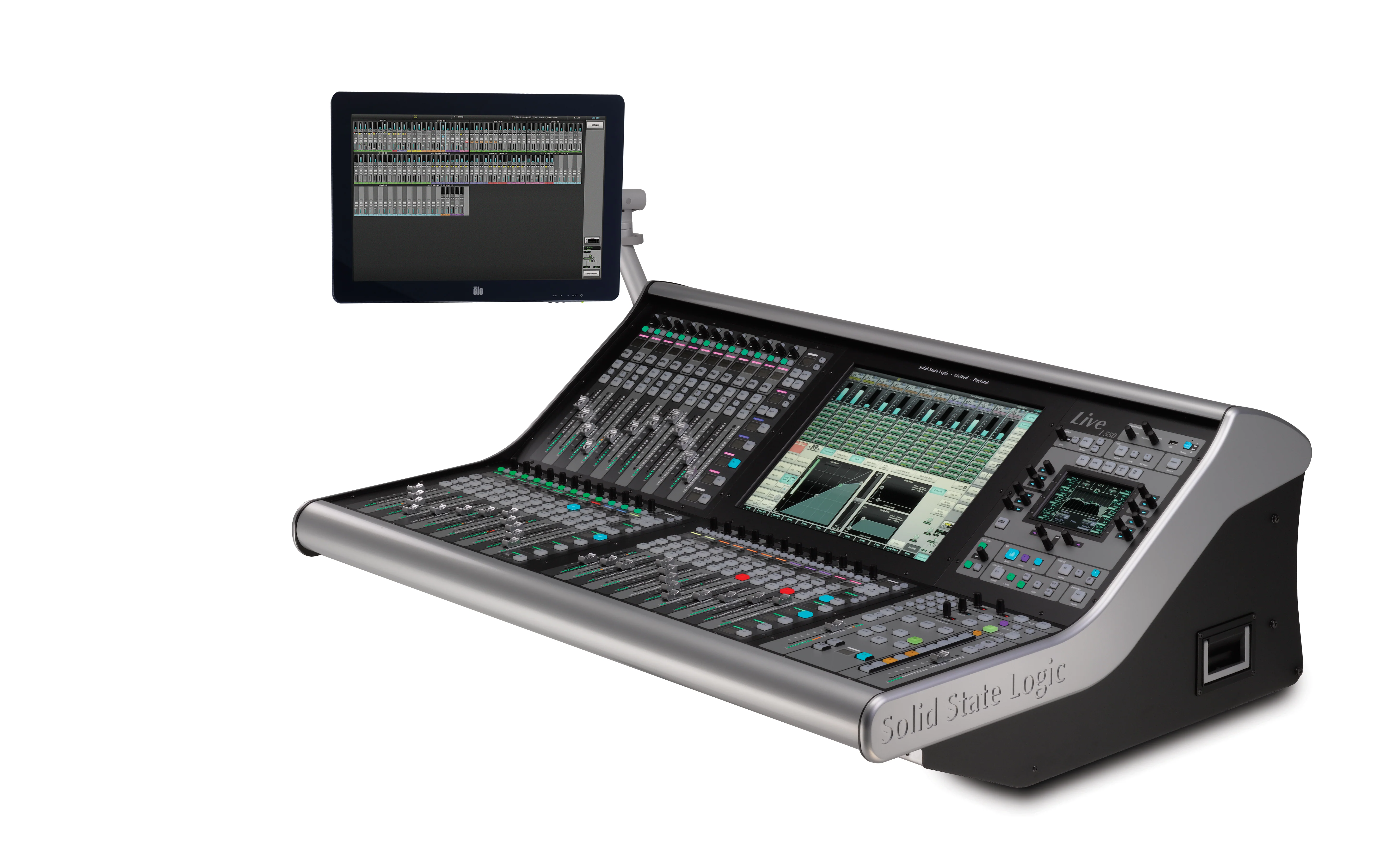

SSL L550 Plus Digital Mixing Console

SSL L550 Plus

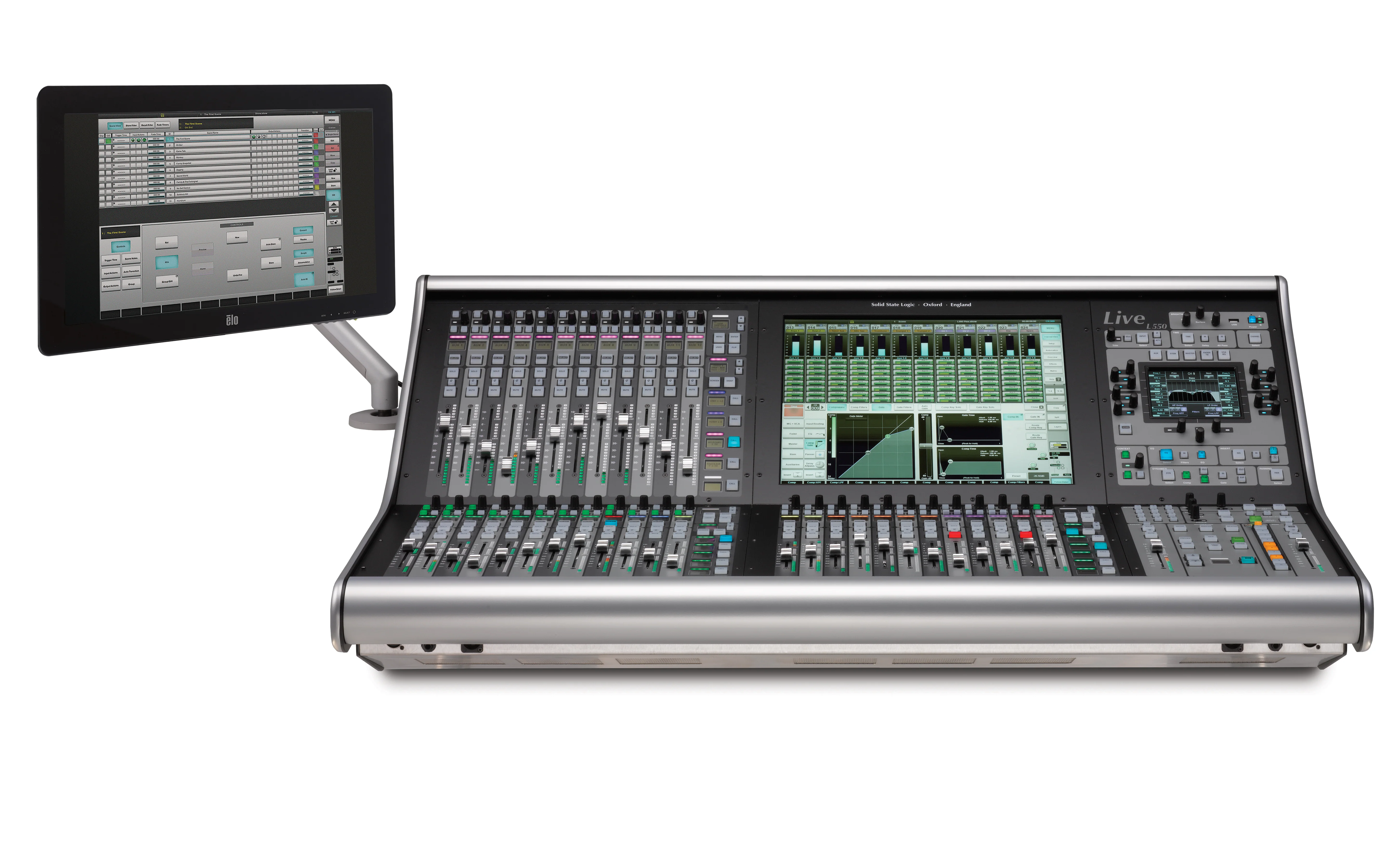

The L550 Plus features a 19-inch multi-touch screen central to its operation, enabling seamless system and I/O configuration, surface layouts, and automation control. It supports 1136 inputs and outputs and delivers 288 mix paths at 96 kHz with full processing power.

The console has a 32 x 36 output matrix ensuring versatile routing option. Also, with the L550 Plus a tablet can be used to bring additional touch screen control over Channel Processing and Effects Rack.

Features:

• 288 Paths
• 288 Input Channels with full processing
• 84 Stem Groups
• 204 Auxes
• 30 Masters
• 4 x 32 Inputs / 36 Outputs Matrix
• 48 VCAs
• 96 FX Slots
• 96kHz or 48kHz- Sample Rate
• 32 mic/line, 32 line out, 2x headphone- Local Analogue I/O
• 8 Pairs (with SRC)- Local AES/EBU I/O
• 12 Coax, 4 Optical MADI Ports
• Optical in/out x 1- MADI FX Loop
• 1 Optional Redundant Pair- SSL Blacklight II
• 1 Optional Redundant Pair- SSL X-Light
• Opt. 32x32 Redundant Pair- Local DANTE @ 96 kHz
• Up to 1136 in/out- Maximum I/O @ 96kHz

I/O Racks:

• SSL SB 32.24 - Dante Analogue Stagebox
• SSL SB 16.12 - Dante Analogue Stagebox
• SSL SB 8.8 - Dante Analogue Stagebox
• SSL SB i16 - Dante Analogue Stagebox
• SSL X-Light Bridge
• SSL BL II-Bridge
• SSL MADI-Bridge - MADI to DANTE Interface
