Shure WL93SHU Omnidirectional Lavalier Microphone

Shure WL93 SHU Omnidirectional Lavalier Microphone

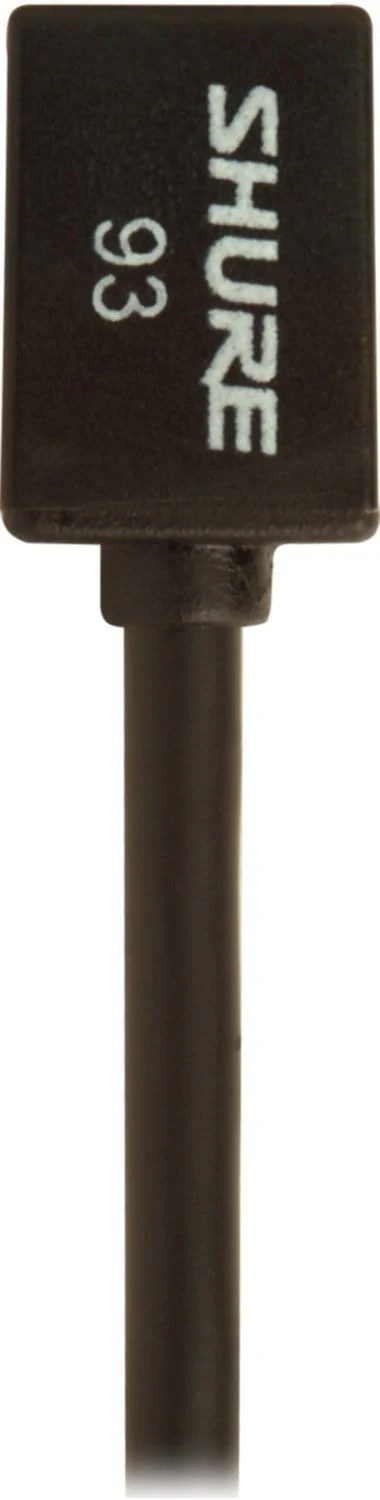

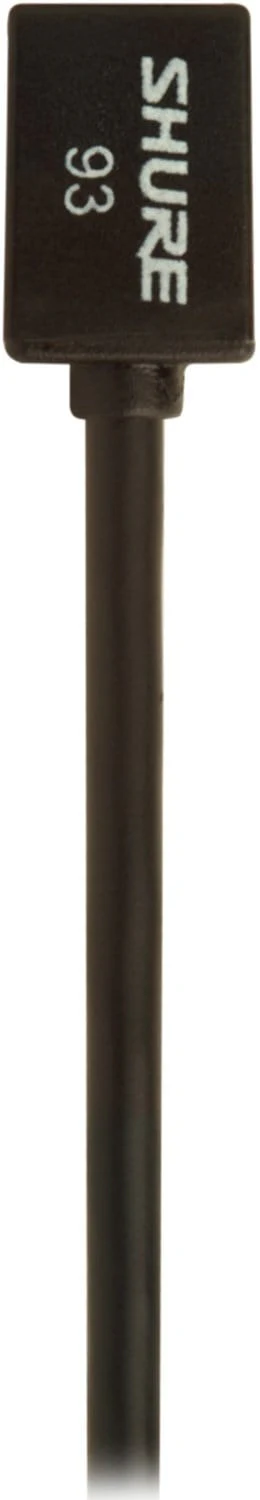

Shure Model WL93 Microphone is omnidirectional, subminiature, lavalier electret condenser microphone. It's visually unobtrusive design and tailored frequency response makes it ideal for body-worn applications in TV broadcasting, theater, and sound reinforcement. The Model WL93 features a small microphone element that provides full, clear sound comparable to that of much larger microphones. The WL93, intended for wireless use, connects directly to a Shure wireless body-pack transmitter.

Features:

• Subminiature lavalier design; ideal size for theater, television broadcasting, video, film, and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency rolloff reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Versatile mounting accessories allow a variety of low-visibility applications
• Preamplifier assembly can be pocketed, strapped to the body, or clipped to belt or waistband
• Omnidirectional condenser
• Frequency response: 80 to 20,000 Hz

Specifications:

• Type: Condenser (electret bias)
• Frequency Response: 50 to 20,000 Hz
• Polar Pattern: Omnidirectional, uniform with frequency
• Connector type: Shure plug
• Output Impedance: 3000 Ω
• Output Level: open circuit voltage: −38 dBV/Pa(13 mV)
• Output Clipping Level:
  • at 1 kHz
  • 0.25 V at 120 dB
• Total Harmonic Distortion: Less than 1% at 120 dB
• Maximum SPL: 120 dB
• Dynamic Range (Maximum SPL, A-weighted): 102 dB
• Output Noise (equivalent SPL): 18 dB typical, A-Weighted
• Hum Pickup: N/A
• Signal-to-Noise Ratio: 76 dB at 94 dB SPL (IEC 651)
• Recommended Operating Voltage: 2 to 10 V; 5 V
• Current Drain: 40 µA typical
• Environmental Conditions:
  • Operating Temperature : −18 to 57°C (0 to 135°F)
  • Storage Temperature : −29 to 74°C (−20 to 165°F))
• Case: Microphone - Black ABS thermoplastic case with stainless-steel-mesh grille
• Net Weight: Microphone: 16 g (0.57 oz.)
