Shure P10T H22 (518-584Mhz) Double Transmitter Used Package
Shure P10T H22 (518-584Mhz) Double Transmitter Used Package
Package includes:
- 1x P10T Dual-Stereo IEM Transmitter H22 518-584MHz
- 2x P10R IEM Beltpack Receiver H22 518-584MHz

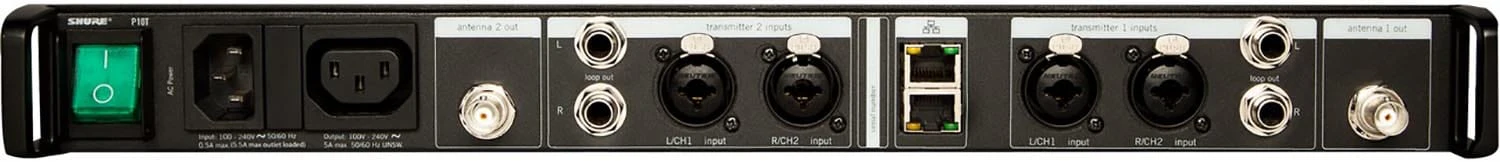

The Shure P10T Dual Wireless Transmitter is intended for use with the P10R wireless bodypack personal listening receivers, as part of the PSM1000 series. The dual channel P10T allows for up to 2 programs to be transmitted simultaneously, on different frequency channels. The P10T features balanced 1/4" phone and XLR connections, as well as an extra 1/4" input on the front. Its 72 MHz wide tuning bandwidth is sure to provide stable transmission. Additional features include networked remote control via Wireless Workbench software and PSM900 backwards compatibility.
Features:
- Frequency Band: H22 / 518-584MHz
- For P10R Personal Listening Receivers
- Dual Chanel for Double Program Material
- 72MHz Wide Bandwidth Tuning Range
- Networkable via Ethernet
- Wireless Workbench Software Control
- Front Panel Audio Input
- Switchable RF Output Power
Specifications
- RF Output Power:
- Selectable: 10, 50, 100 mW (+20 dBm) varies by region
- RF Output Impedance: 50 Ω (typical)
- Impedance 70.2k Ω: (actual)
- Nominal Input Level: Switchable: +4 dBu, -10 dBV
- Maximum Input Level:
- +4 dBu: +29.2 dBu
- -10 dBV: +12.2 dBu
- Connector Type:
- Input: Combination XLR and 6.35 mm (1/4") TRS
- Output: 1/4" TRS (6.35mm)
- Pin Assignments
- XLR: 1=ground, 2=hot, 3=cold
- 1/4" TRS (6.35mm): Tip=hot, Ring=cold, Sleeve=ground
- Polarity
- XLR: Non-inverting (pin 2 positive with respect to pin 3)
- 1/4" (6.35mm) TRS: Tip positive with respect to ring
- Electronically balanced
- Phantom Power: Phantom power protection: Up to 60 VDC
- Power Requirements:
- Input: 100―240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
- Output: 100―240V AC, 5A max, unswitched
- Dimensions: 19 x 13.50 x 1.73" (483 x 343 x 44mm)
- Weight: 1.87 lbs. (850 g)
- Packaging Info:
- Package Weight: 16.5 lbs.
- Box Dimensions (LxWxH): 27.6 x 17.7 x 3.74"
