Shure Axient AD3 Axient Digital AD3 plug-on Transmitter - X55 Band
Shure Axient AD3 Axient Digital AD3 plug-on Transmitter - X55 Band

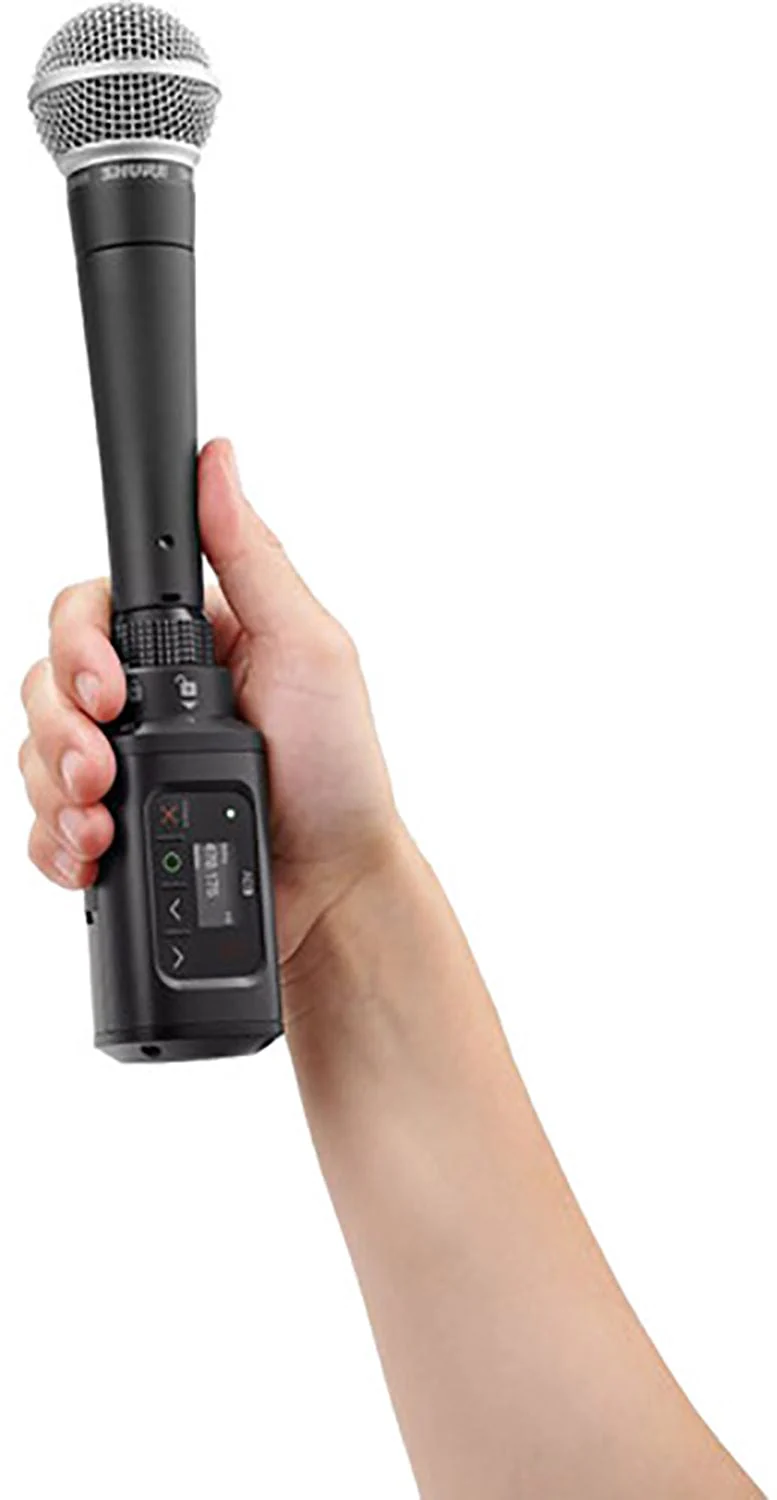

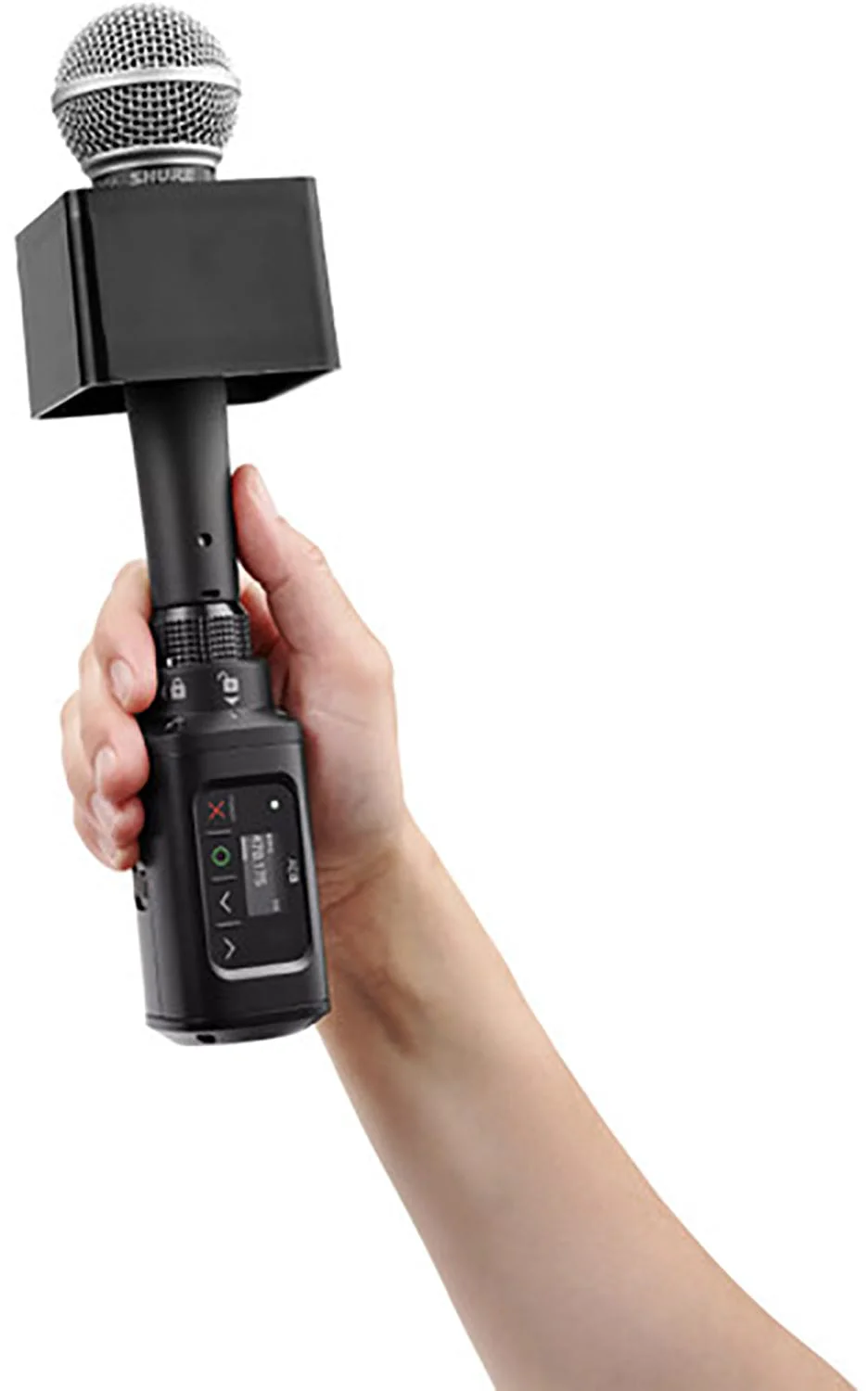

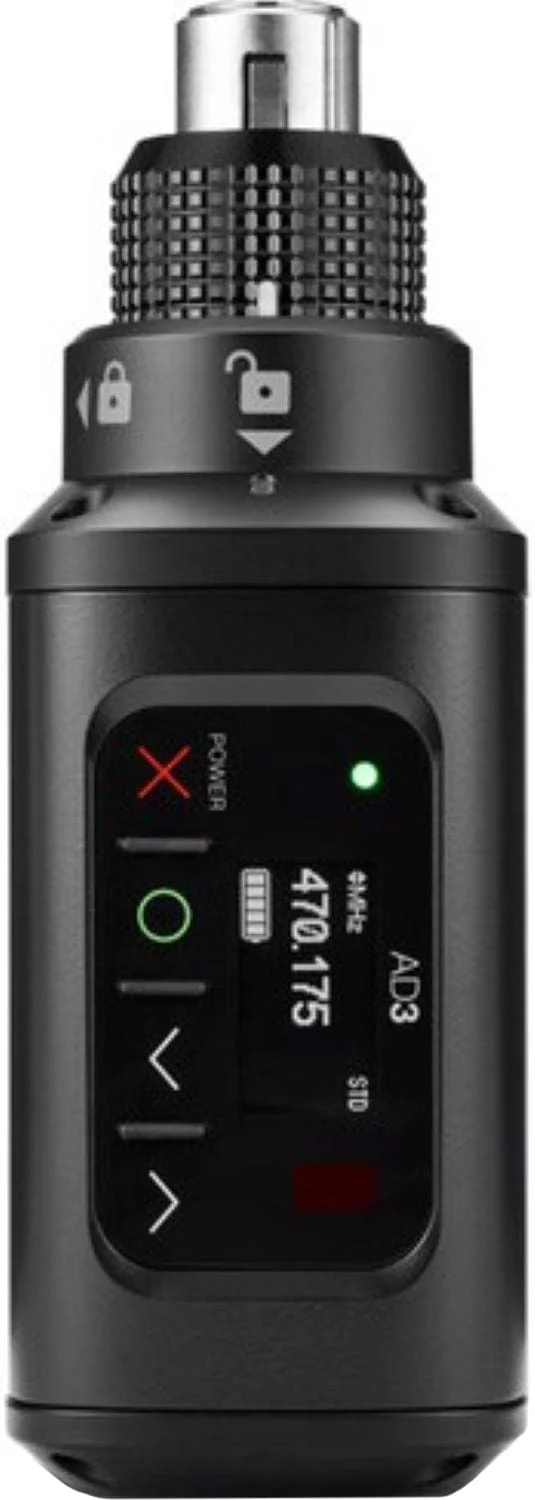

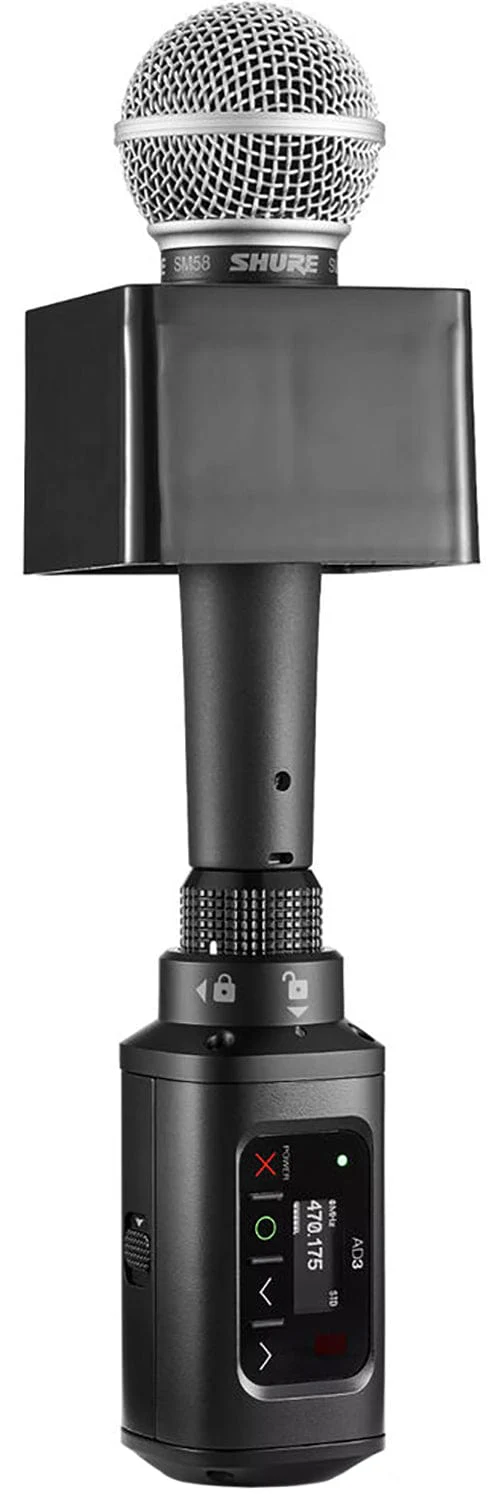

The Shure AD3 is a digital handheld wireless plug-on microphone transmitter compatible with Axient Digital series receivers. The AD3 features a secure XLR connector and supplies 48 V phantom power, allowing you to use any handheld or shotgun XLR microphone with the Axient digital wireless system.

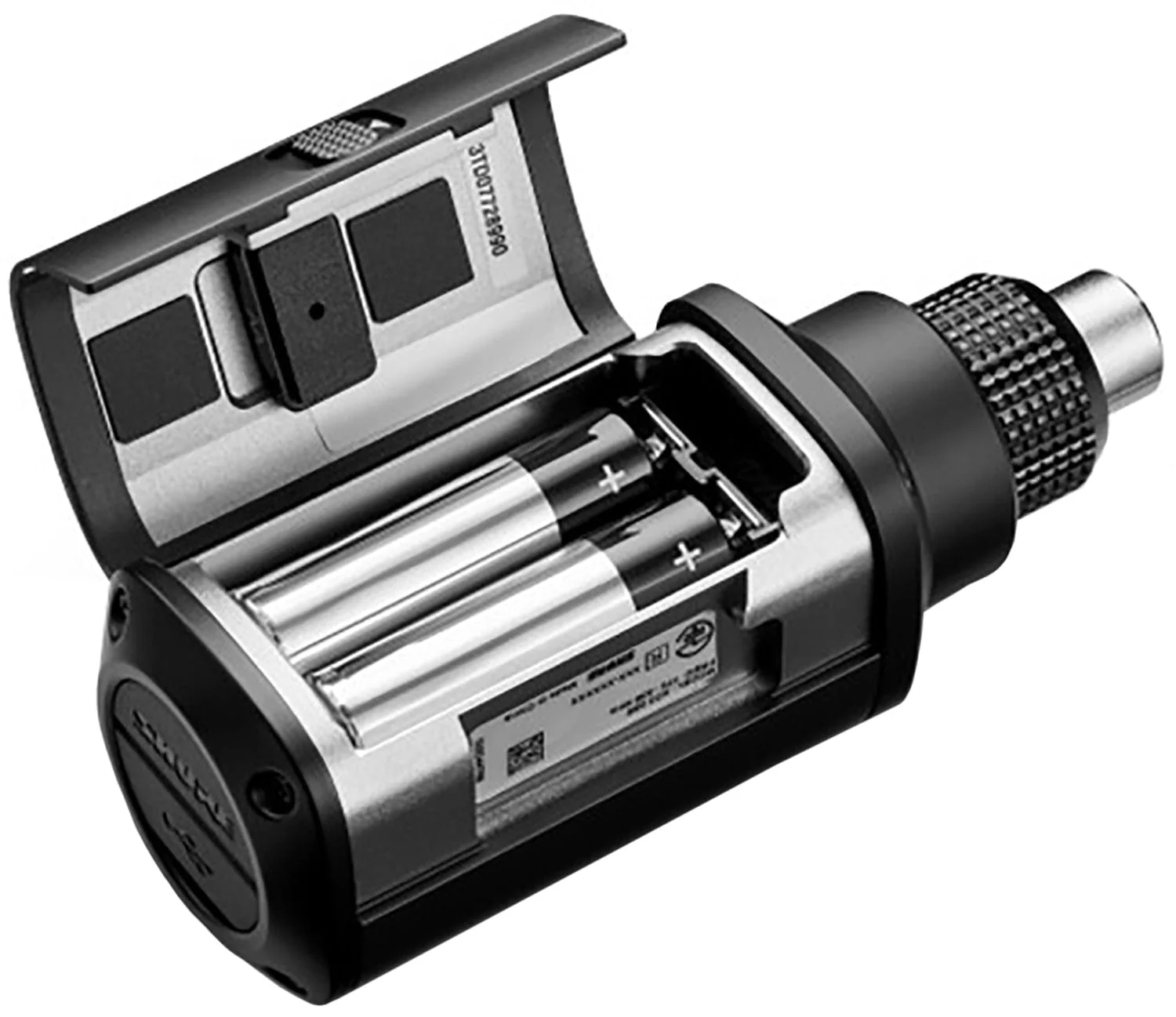

The transmitter operates in a single 146 MHz ultrawide UHF bandwidth with selectable 2/10/35mW RF output power and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB900A lithium-ion rechargeable battery (available separately).
With a durable, moisture-resistant, lightweight aluminum housing, the AD3 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.
Features:
- For Axient Digital Receivers

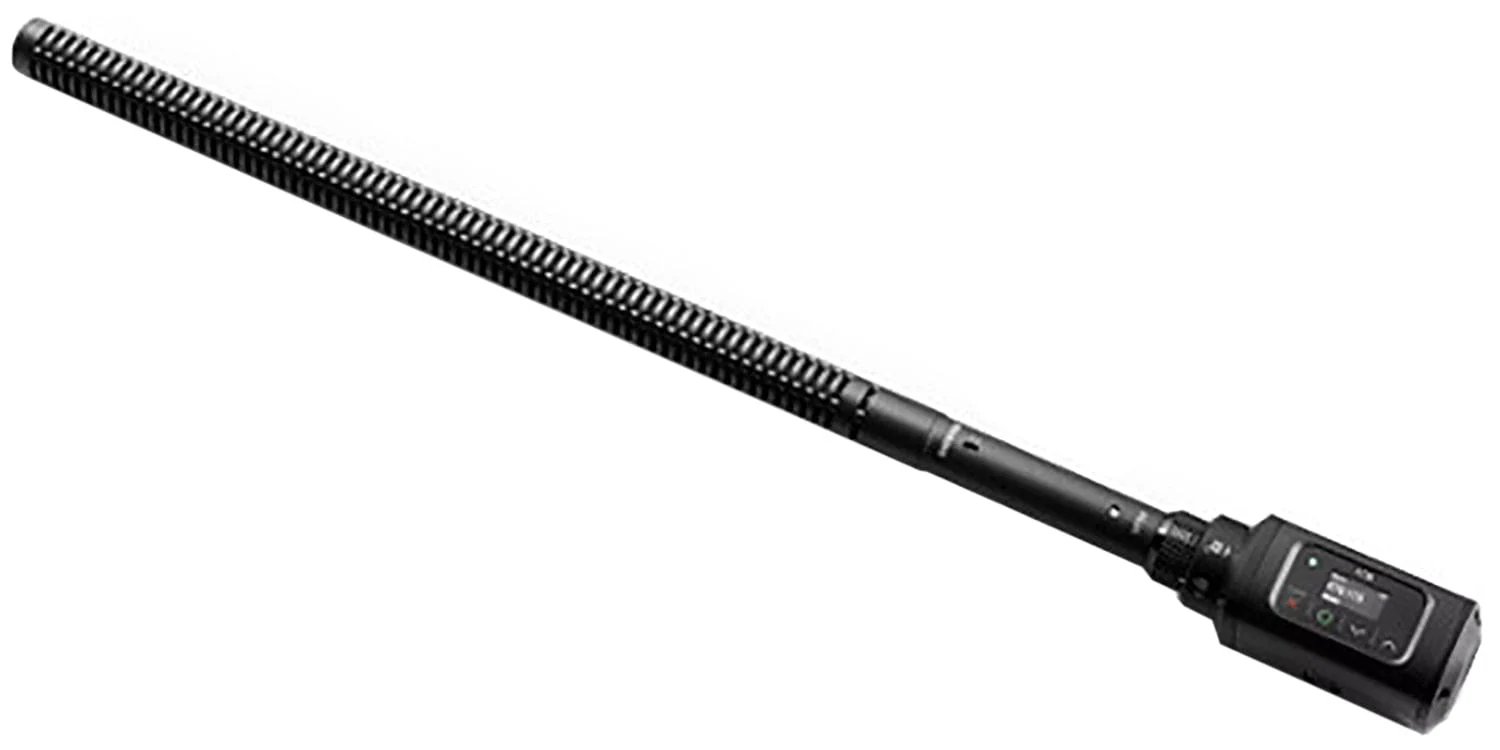

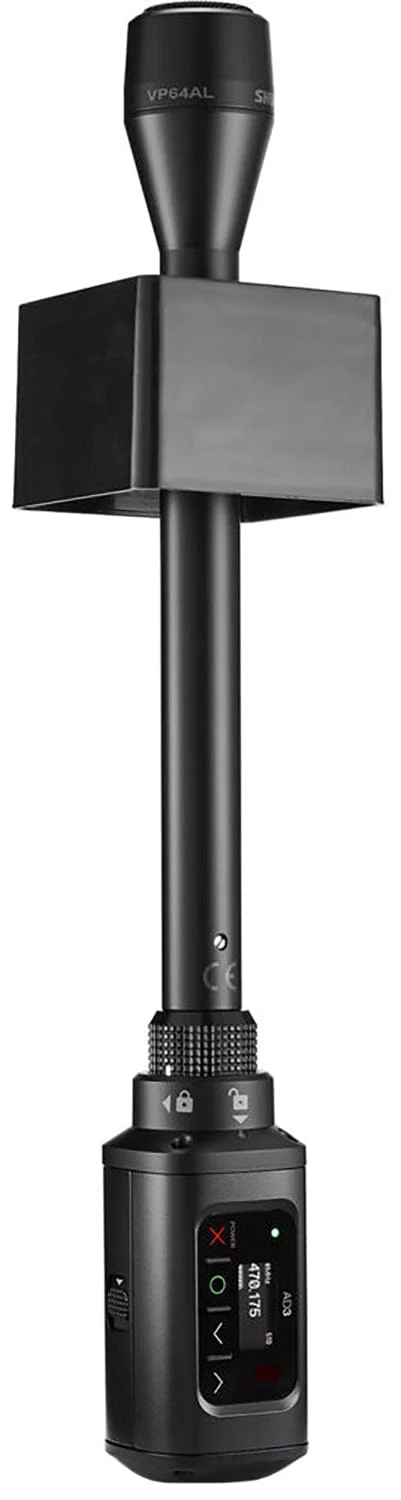

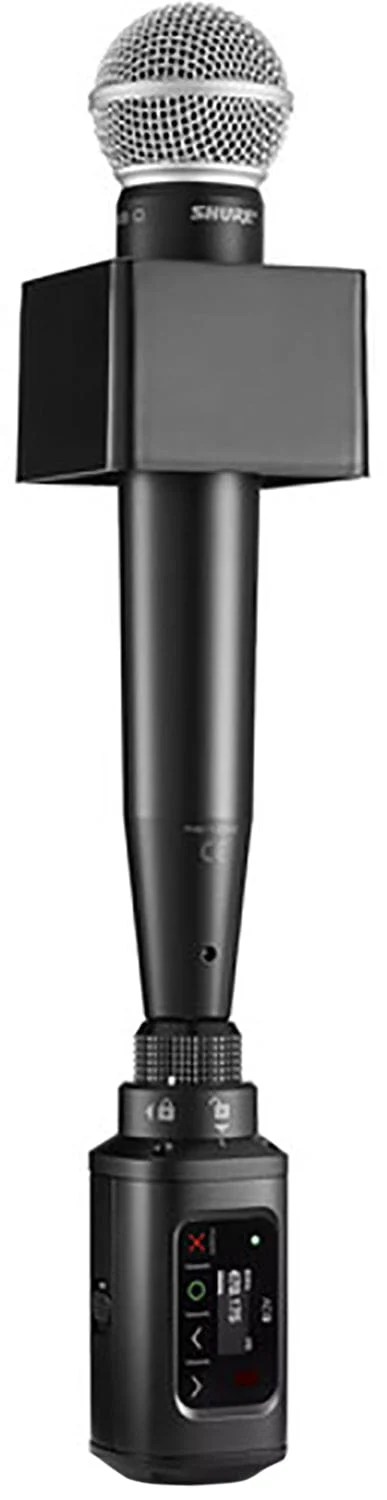

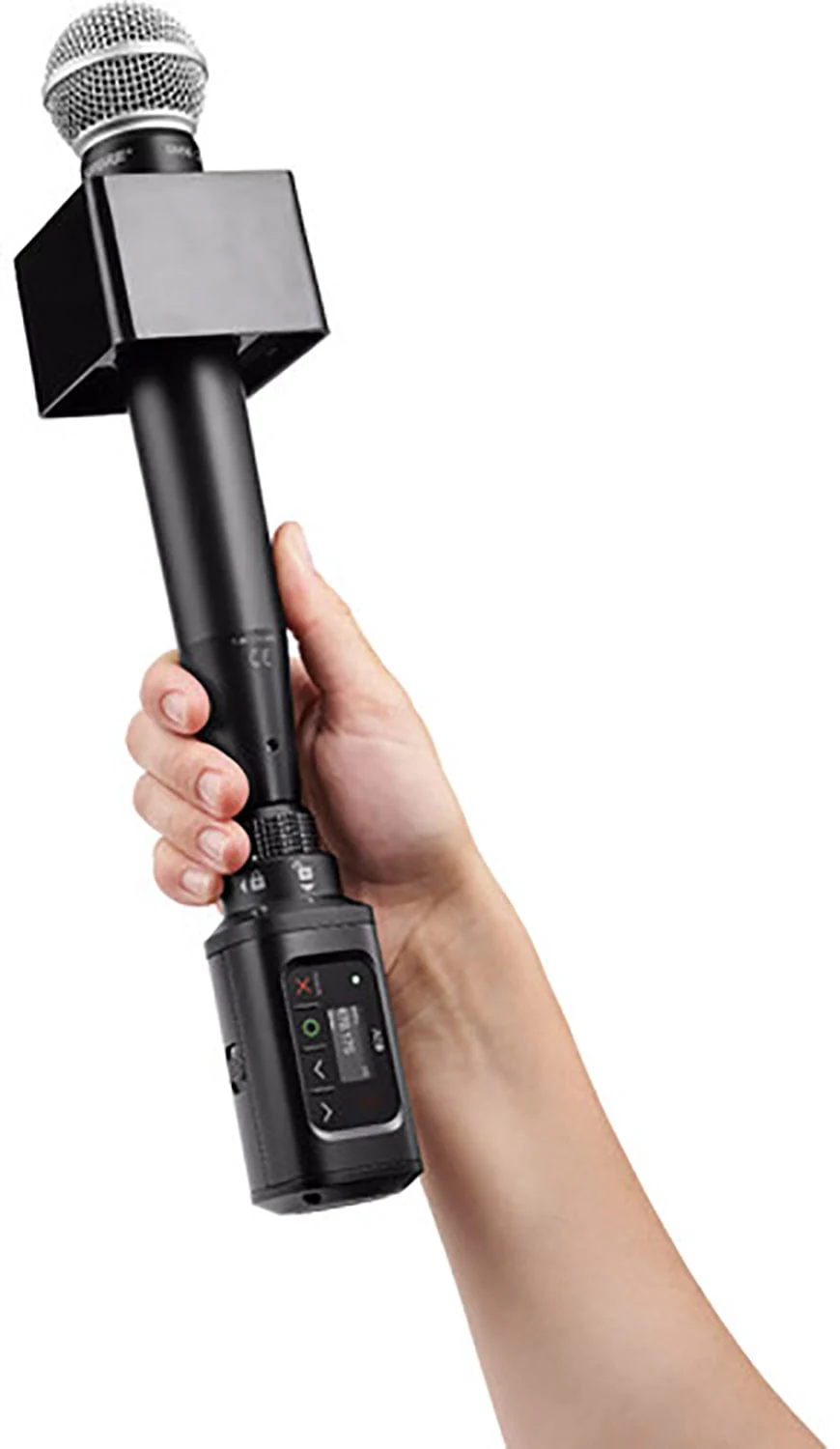

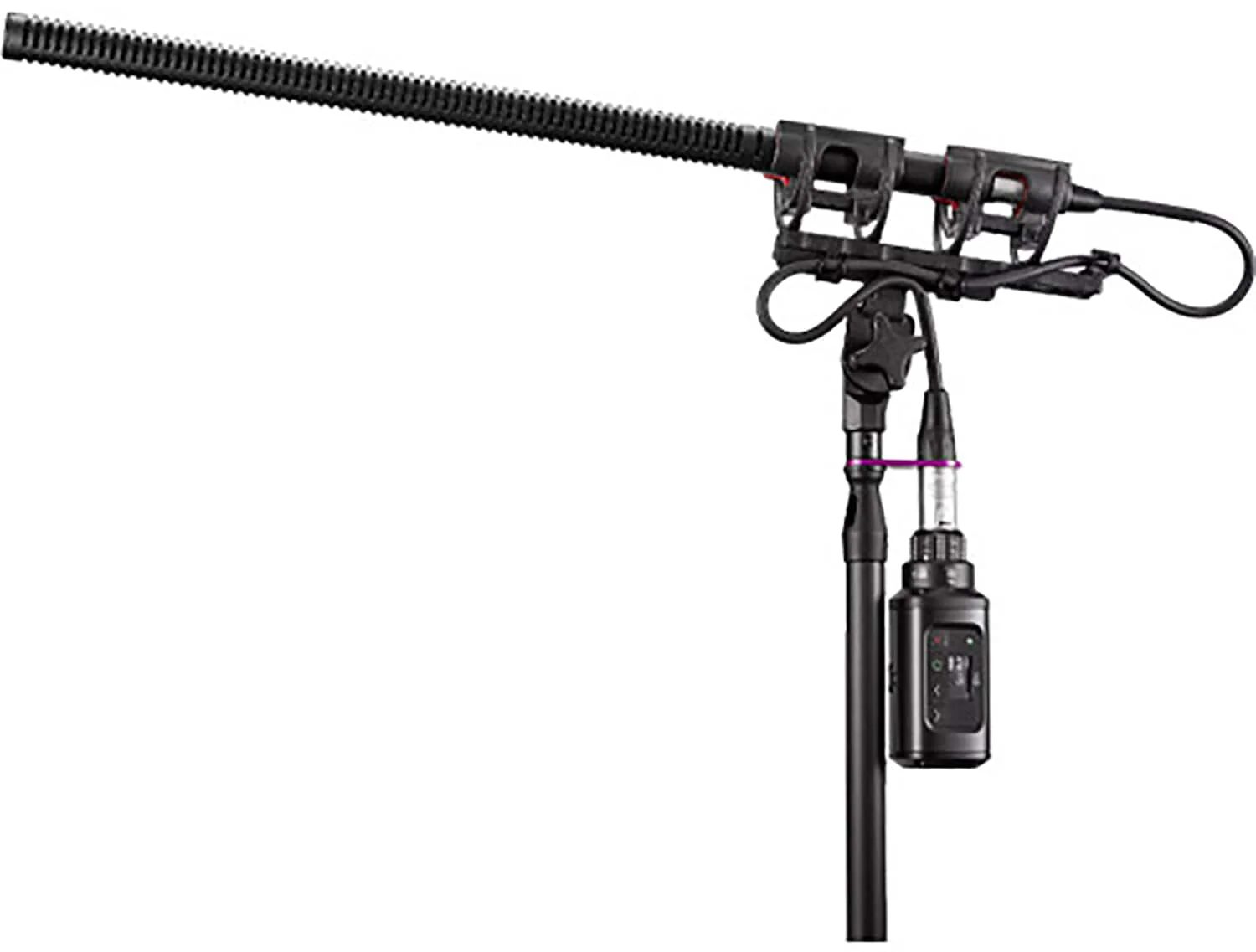

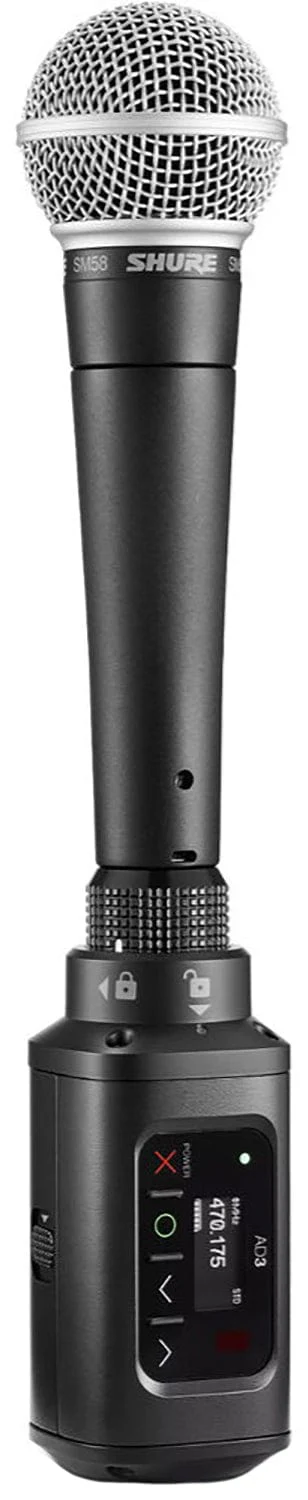

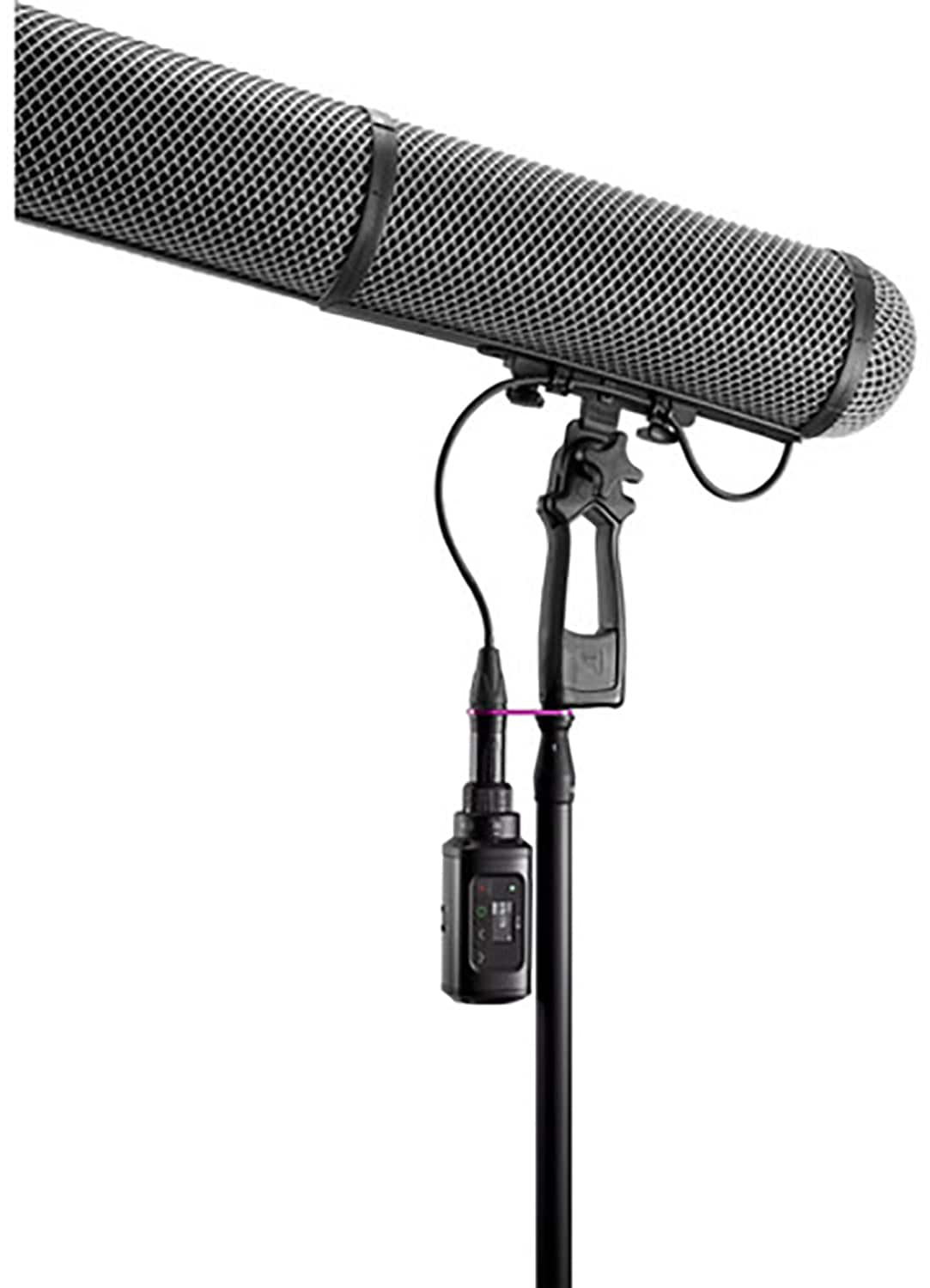

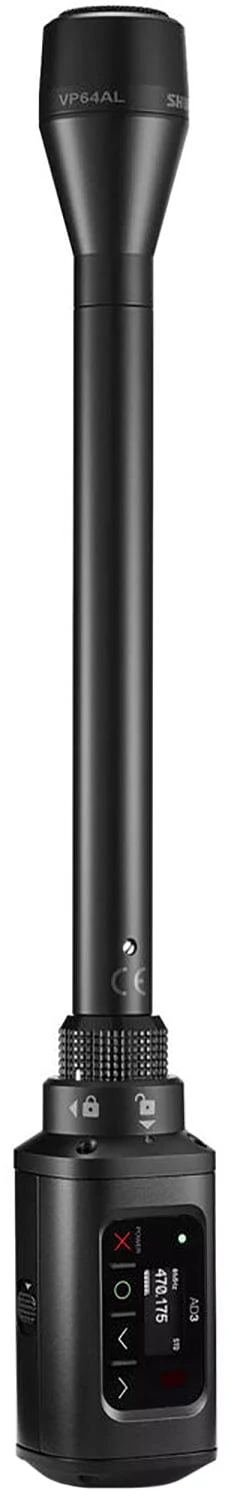

- Use with Any Handheld or Shotgun Mic
- XLR Connector with 48V Phantom
- Automatic Gain Adjustment
- 2/10/35mW RF Output Power
- Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 8 Hours with SB900A Rechargeable Battery
Specifications:
- RF Frequency Band: 941 to 960 MHz
- RF Bandwidth: 166 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m (Line of Sight)
- Latency: 2 to 2.9 ms (Selectable)
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Plug-On
- RF Output Power: 2 / 10 / 35 mW
- Audio I/O: 1 x XLR 3-Pin Female Balanced Input (Lockable)
- Phantom Power: +48 V
- Pad: None
- Auto-Level Control: Yes
- Gain Range: -12 to +21 dB (3 dB Steps)
- Signal Processing: None
- Frequency Response: 20 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical (Handheld)
- Power Requirements: Battery
- Battery Type:

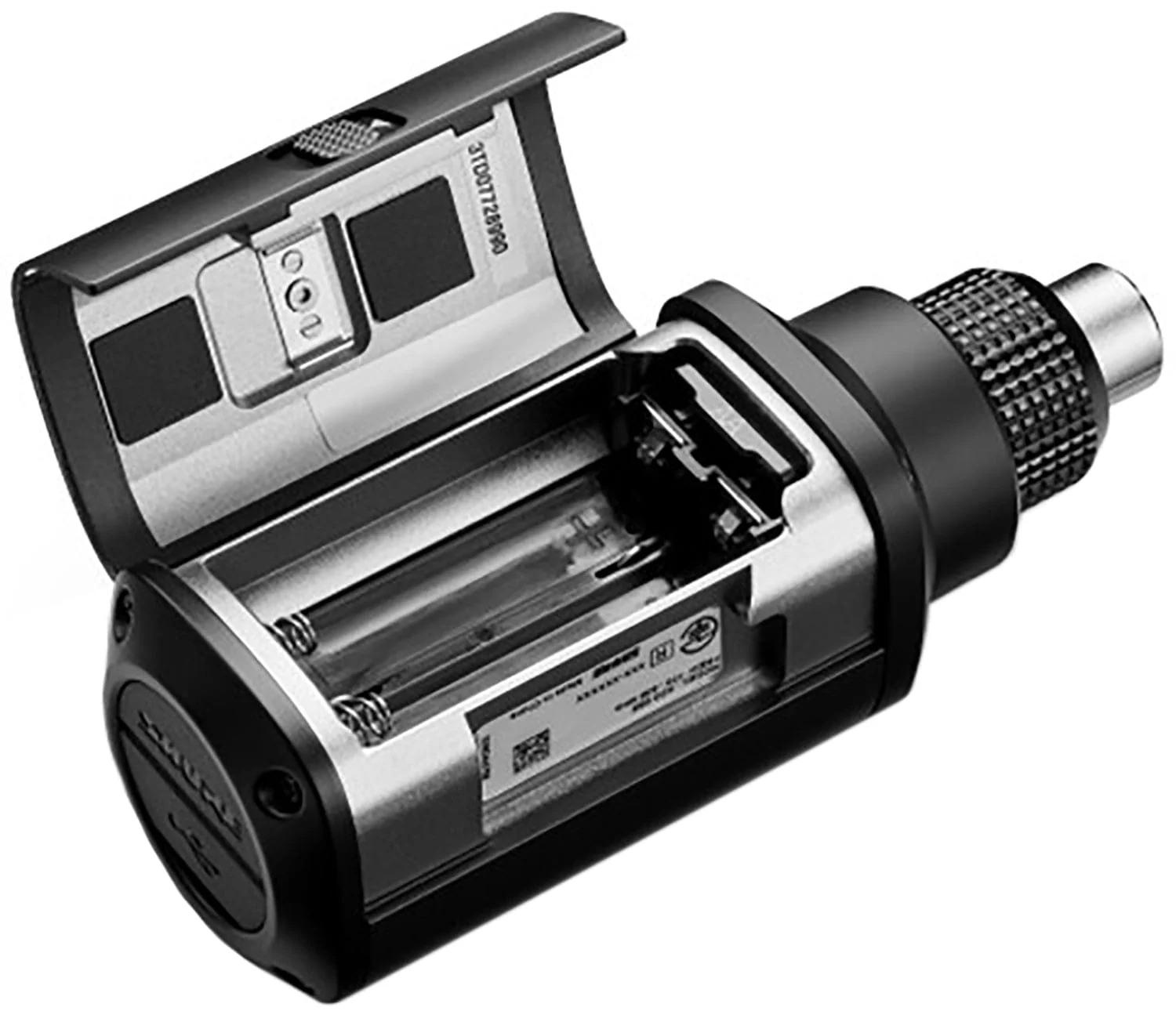

- 2 x AA (Included)

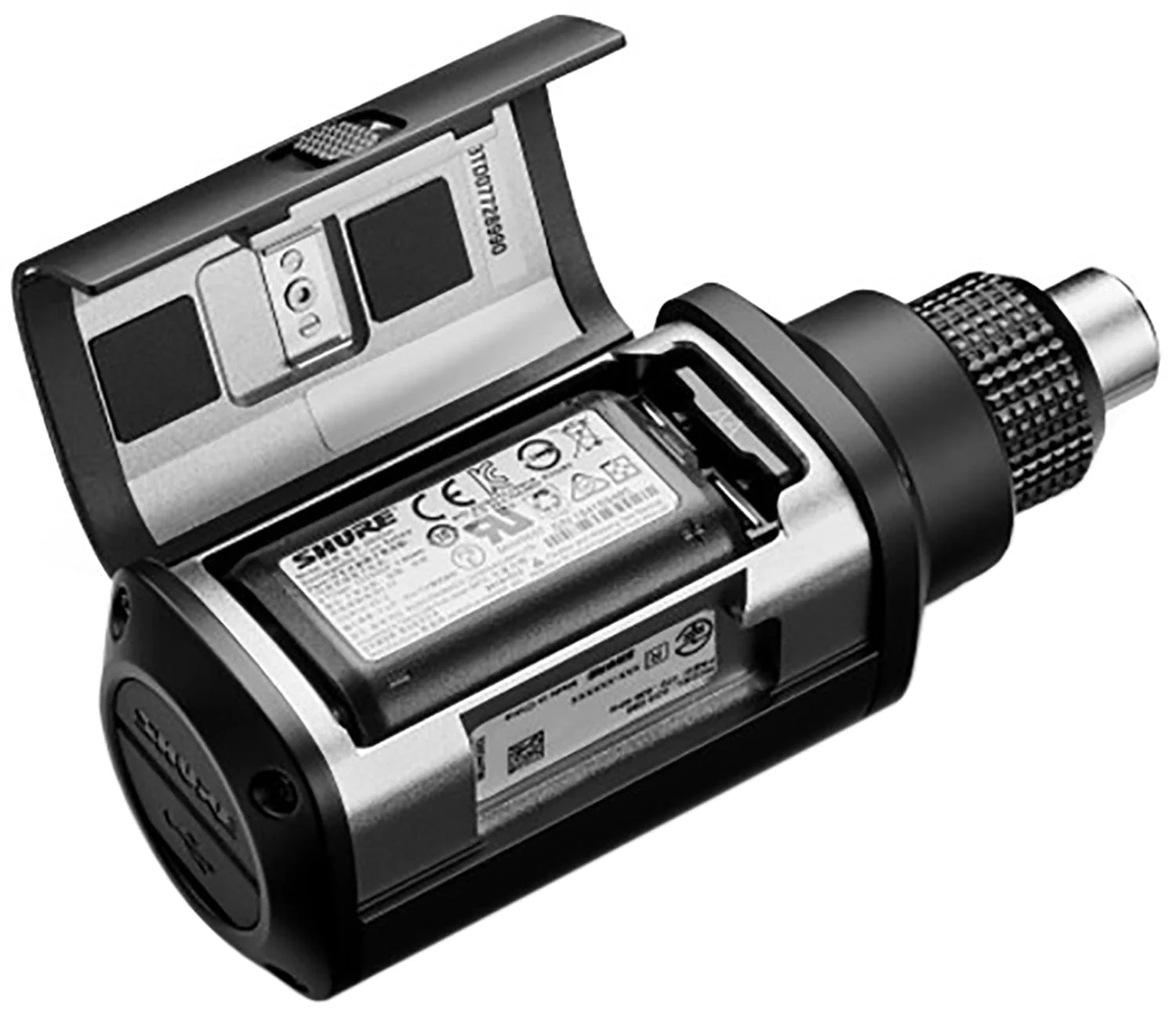

- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 8 Hours (Alkaline)
- Med.: 8 Hours (Lithium Shure SB900A)

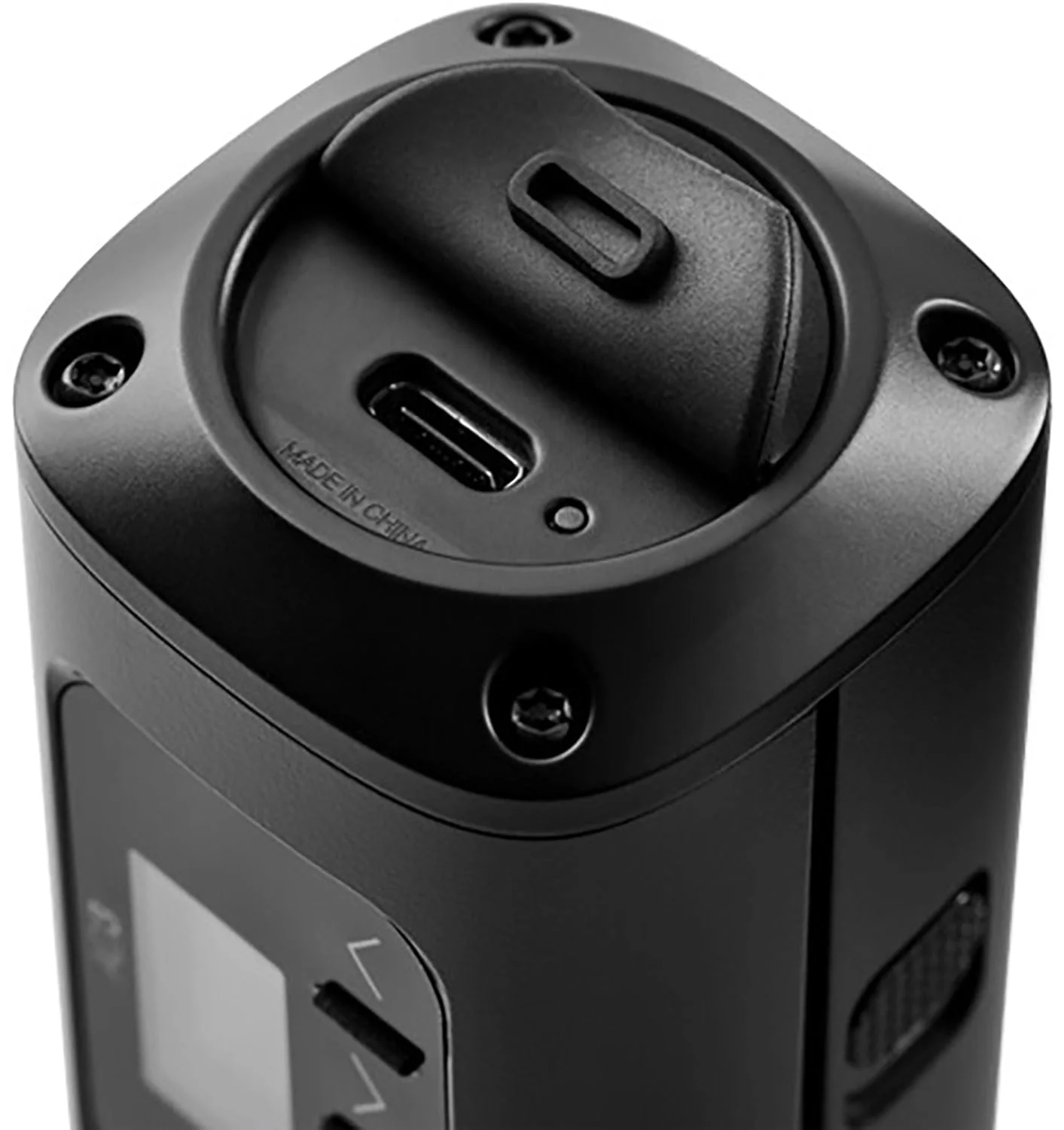

- USB/Lightning I/O: 1 x USB-C (Charging)

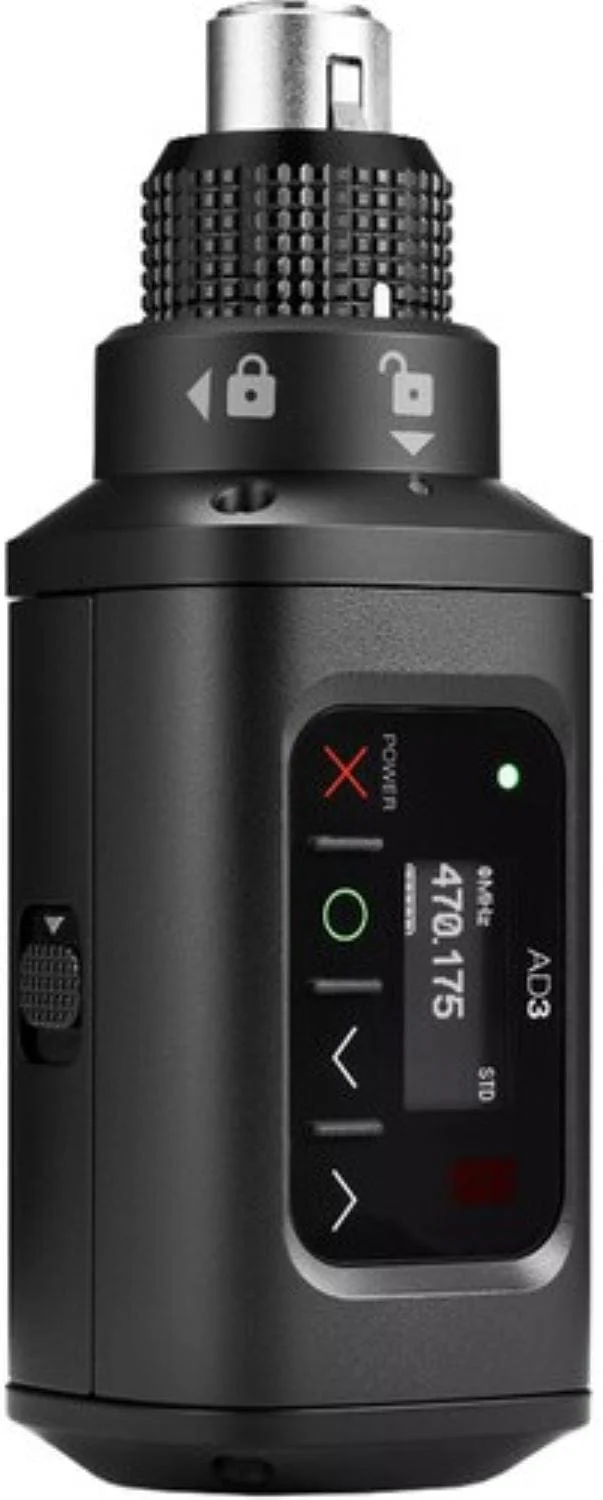

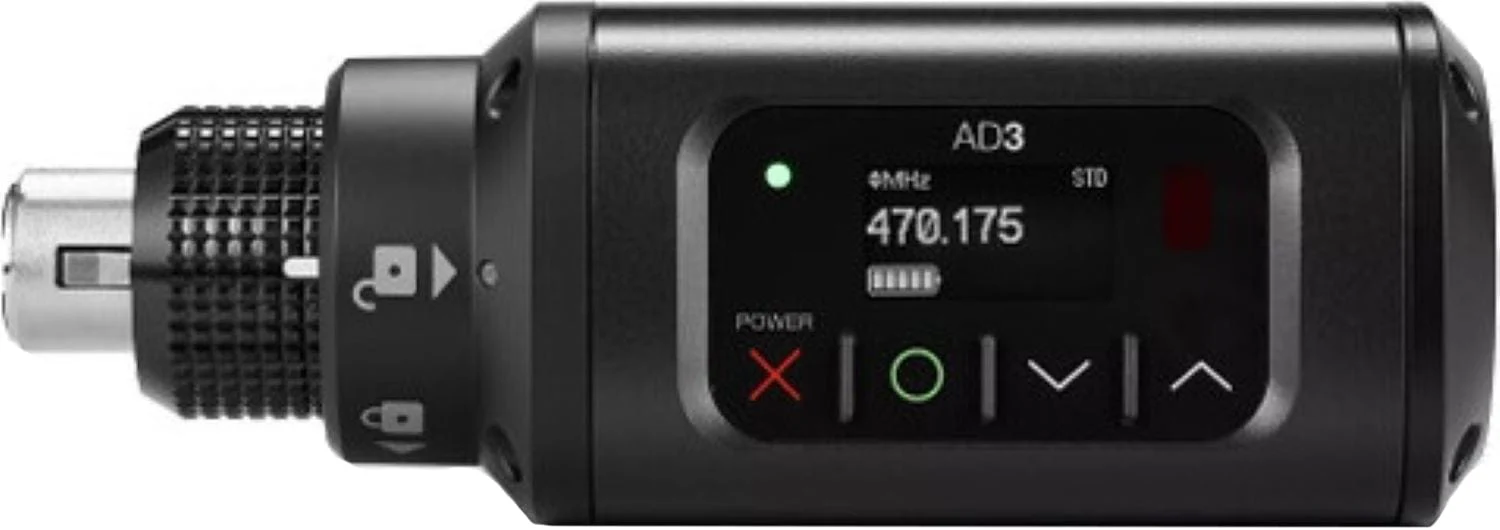

- Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Packaging Info:
- Package Weight: 1.475 lb
- Box Dimensions (LxWxH): 12.1 x 4.6 x 3.4"
