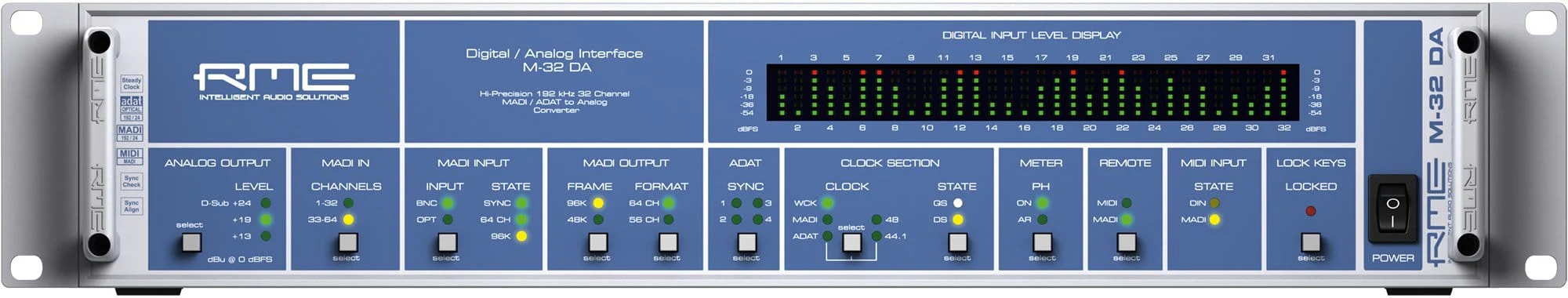

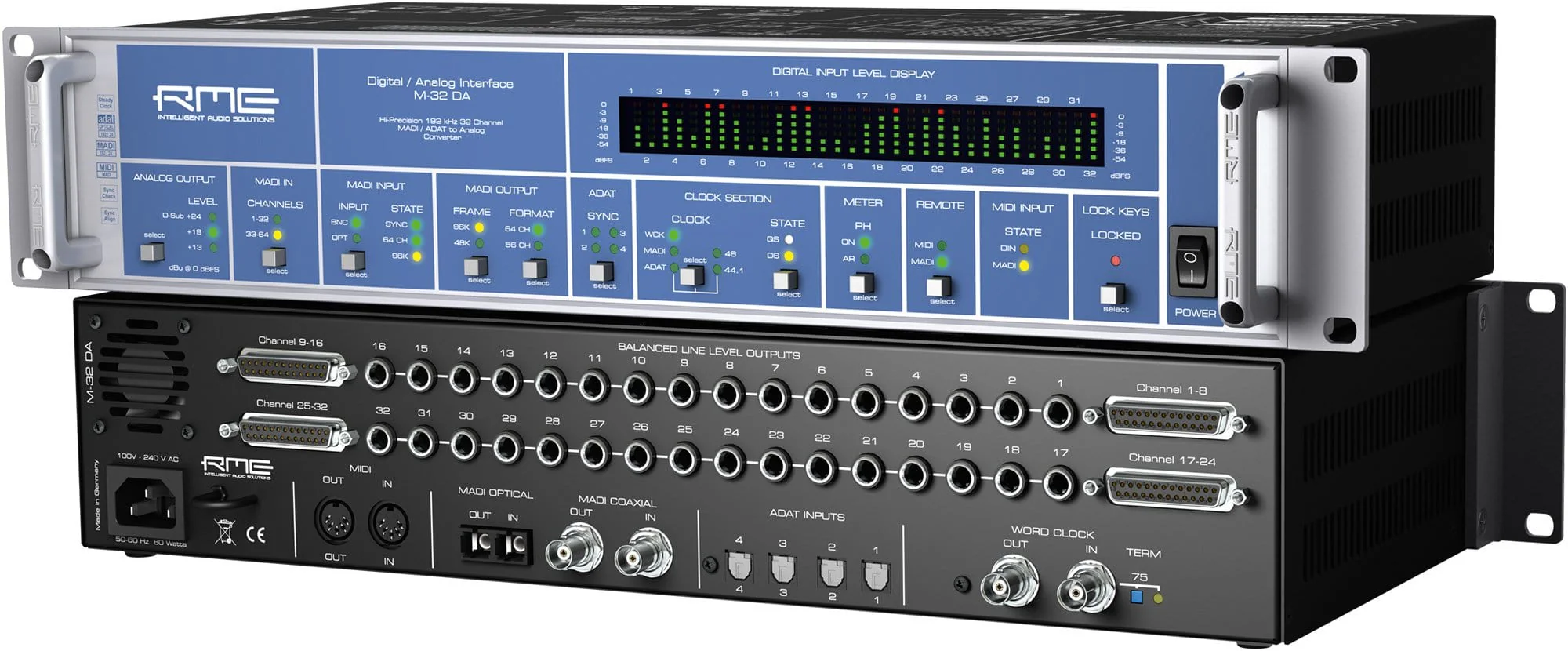

RME M32DA 32-Channel MADI/ADAT to Analog Converter
RME M32DA 32-Channel MADI/ADAT to Analog Converter
RME's M-32 DA is a 32-channel high-end DA converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art DA conversion - not less than 32 times!
Features:
- 32-channel* DA converter, double balanced output, 118 dBA
- 19" enclosure with only 2 units height
- 1 x MADI I/O, 32 channels @ 96 kHz, 16 channels @ 192 kHz
- 4 x ADAT In, 16 channels @ 96 kHz, 8 channels @ 192 kHz
- Automatic Delay Compensation: no user operation necessary when stacking units
- 32* LED level meters with 6 LEDs each
- SteadyClock(TM) - pristine sound quality independently from the quality of the external clock signal
- SyncCheck(TM) - unique technology to check clock synchronization
- Noise suppression on power-on and power-off at the analog outputs
- All settings are stored permanently
- Fully remote controllable via MIDI and MIDI over MADI
Specifications:

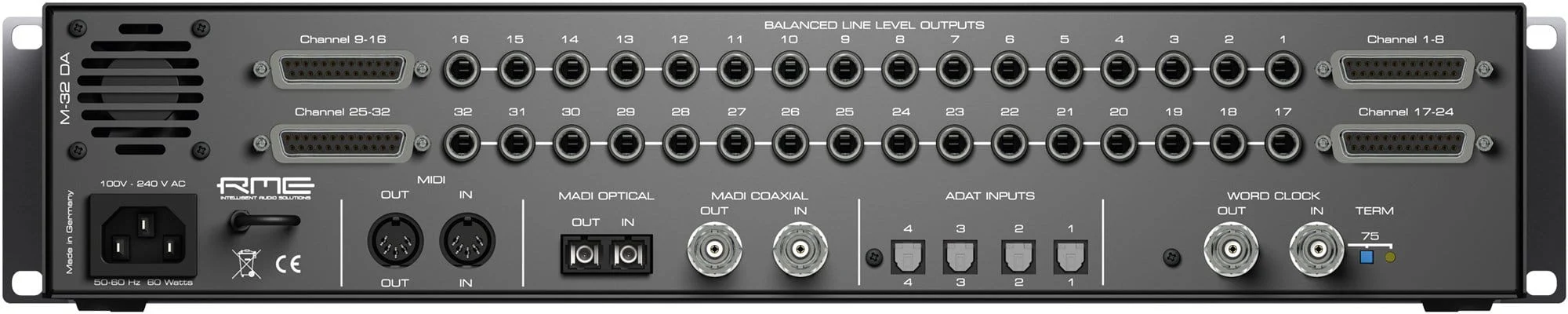

- Input DA: 4 x ADAT optical, 1 x MADI optical/coaxial
- Output DA: 1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu
- Dynamic Range DA (SNR): 114 dB RMS unweighted, 118 dBA
- THD DA: < -104 dB (< 0.00063%)
- THD+N DA: < -100 dB (< 0.001%)
- Crosstalk DA: > 110 dB
- Frequency response DA, -0.5 dB: 5 Hz - 22 kHz (sf 48 kHz)
- Frequency response DA, -0.5 dB: < 5 Hz - 34 kHz (sf 96 kHz)
- Frequency response DA, -1 dB: < 5 Hz - 50 kHz (sf 192 kHz)
- Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
- Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
- Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
- Jitter suppression: >30 dB (2.4 kHz)
- Jitter sensitivity: all PLLs operate error-free even at 100 ns
- Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
- Dimensions: (WxHxD) 483 x 88 x 200 mm
$5,599.00
