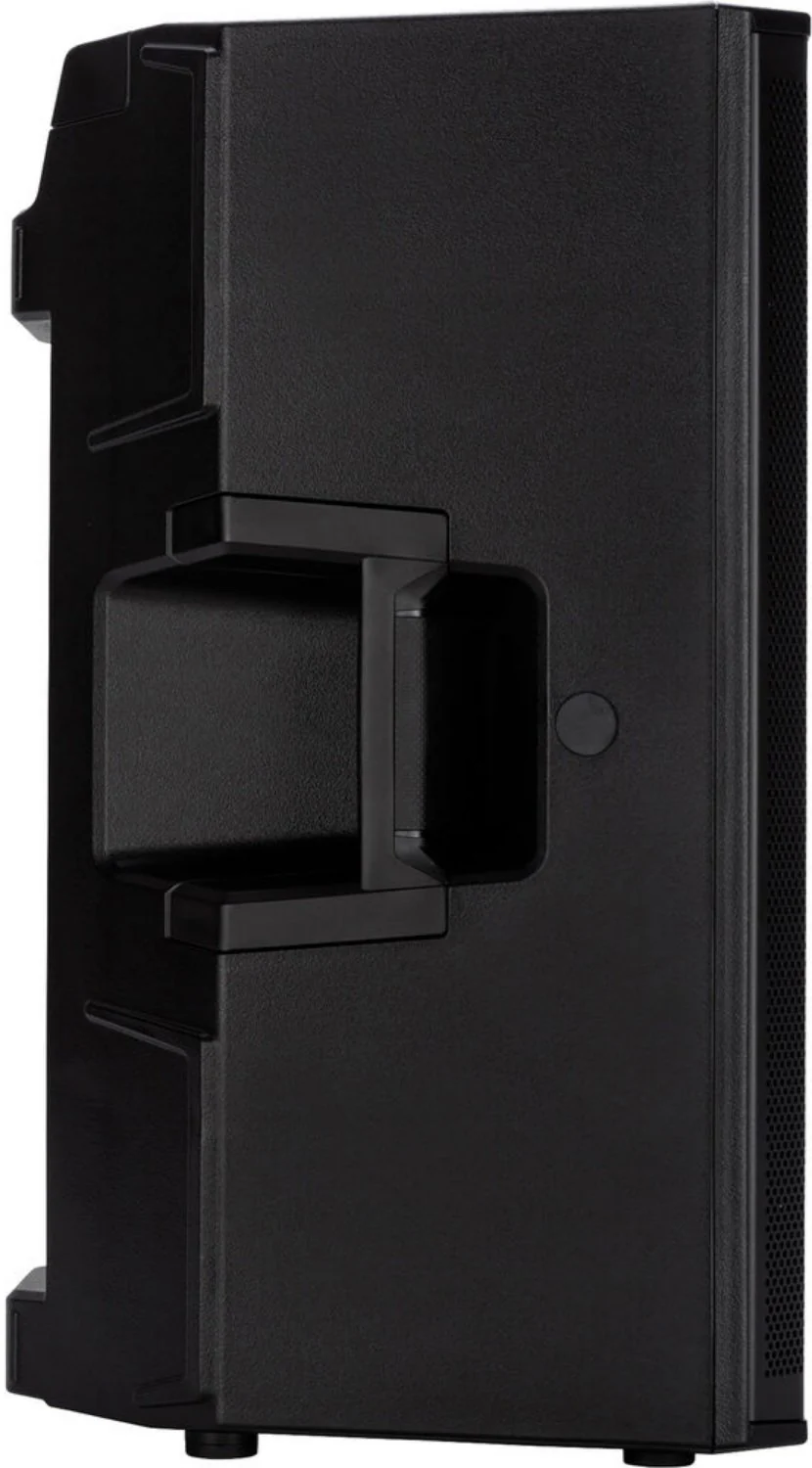

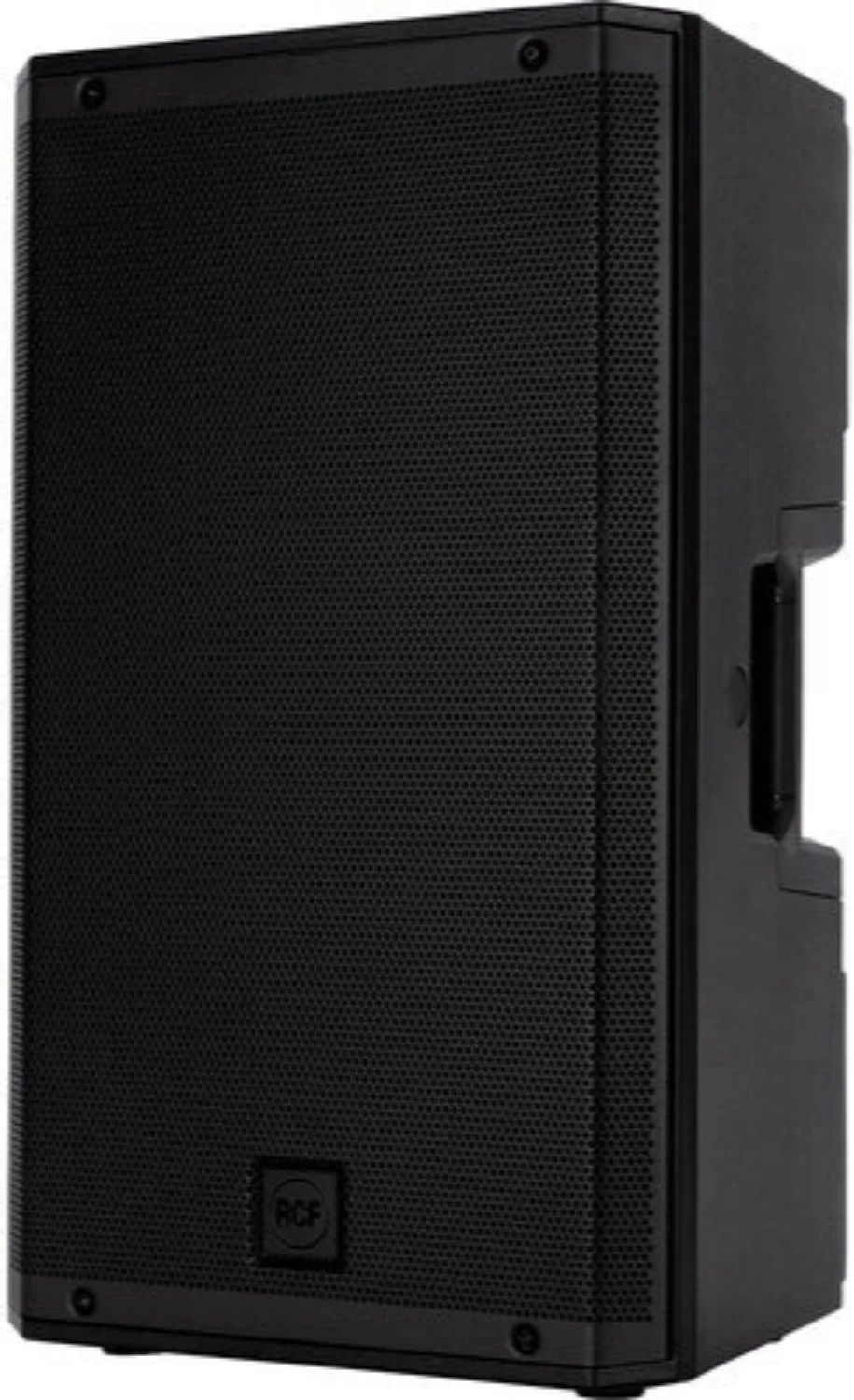

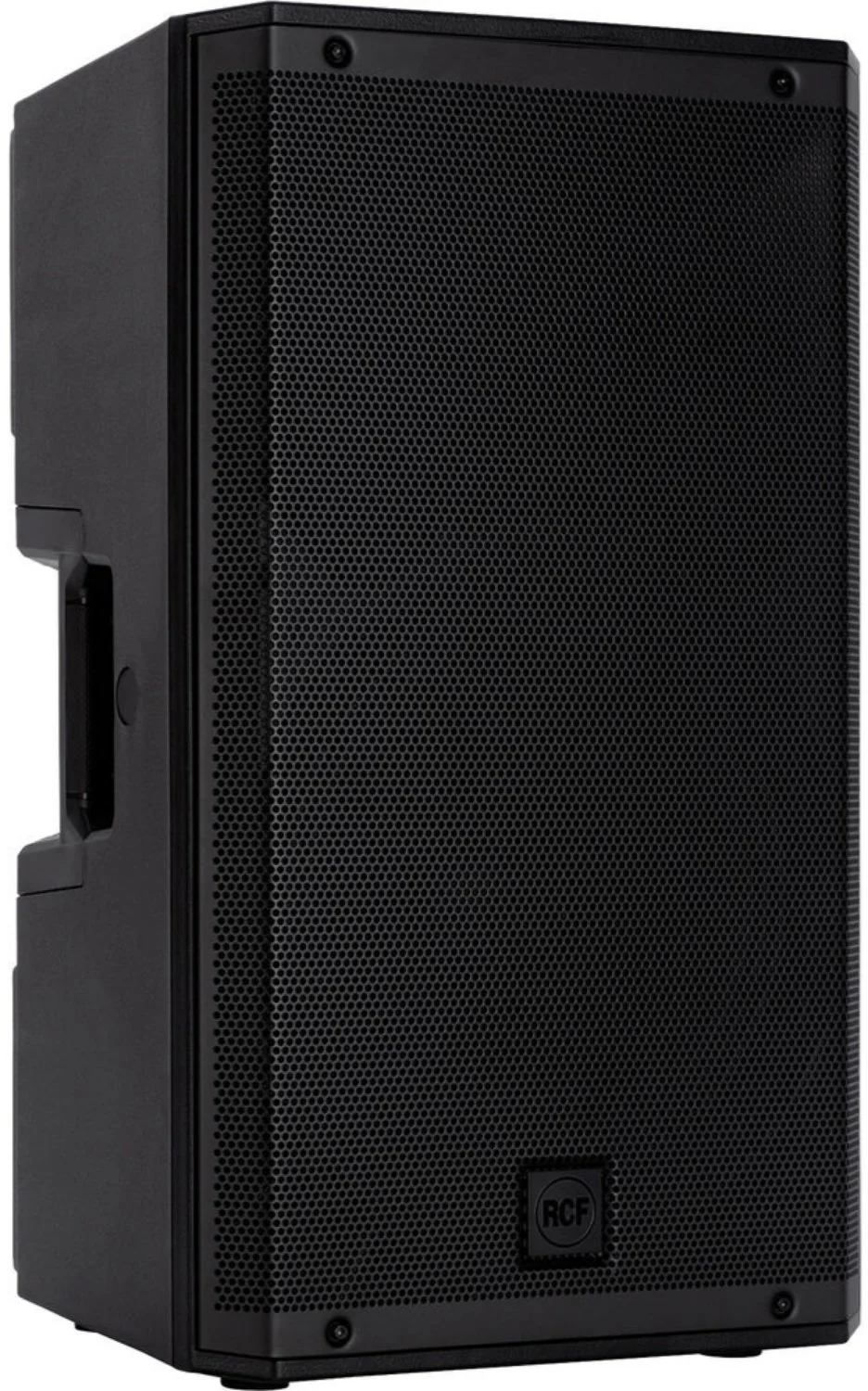

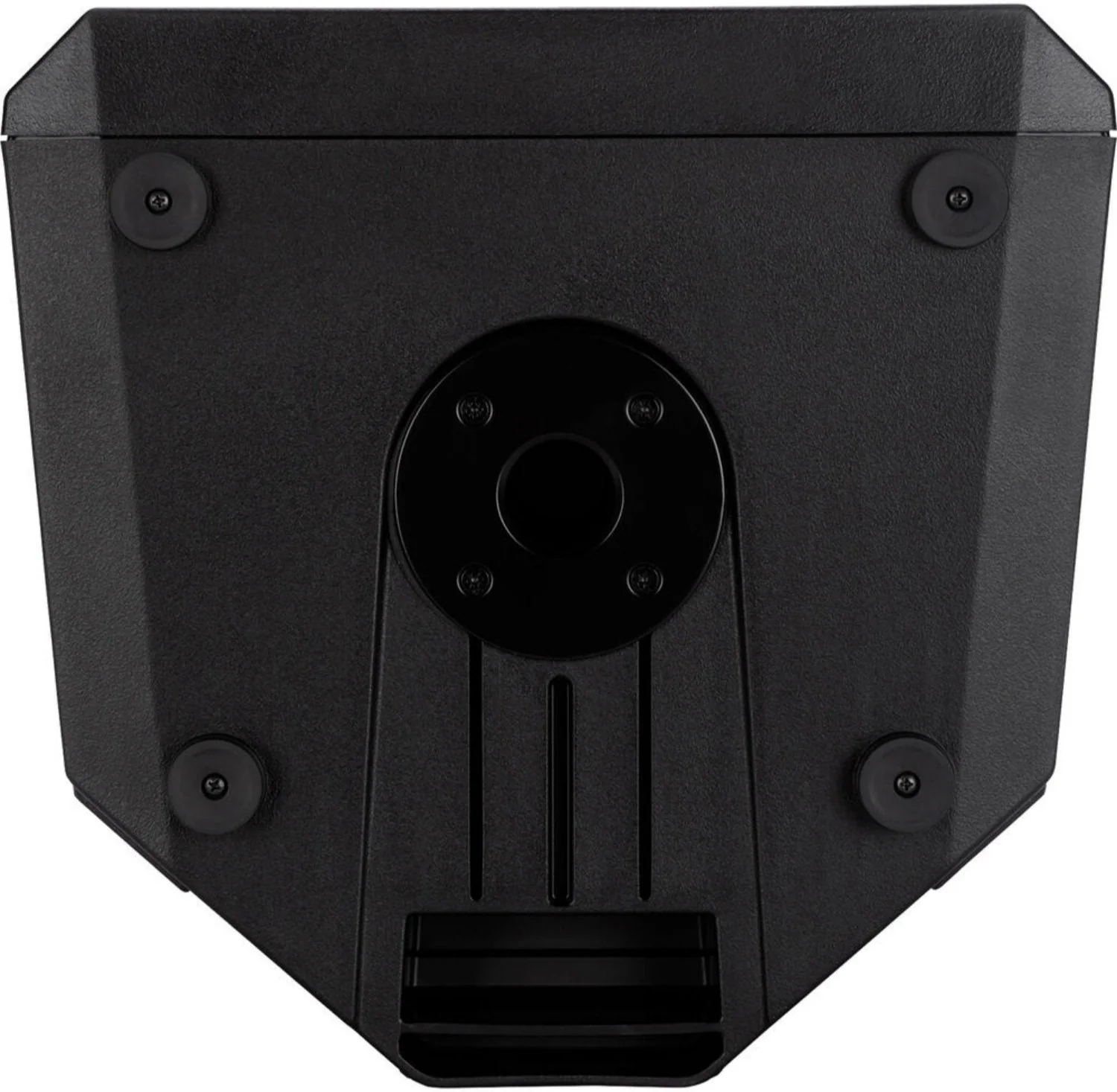

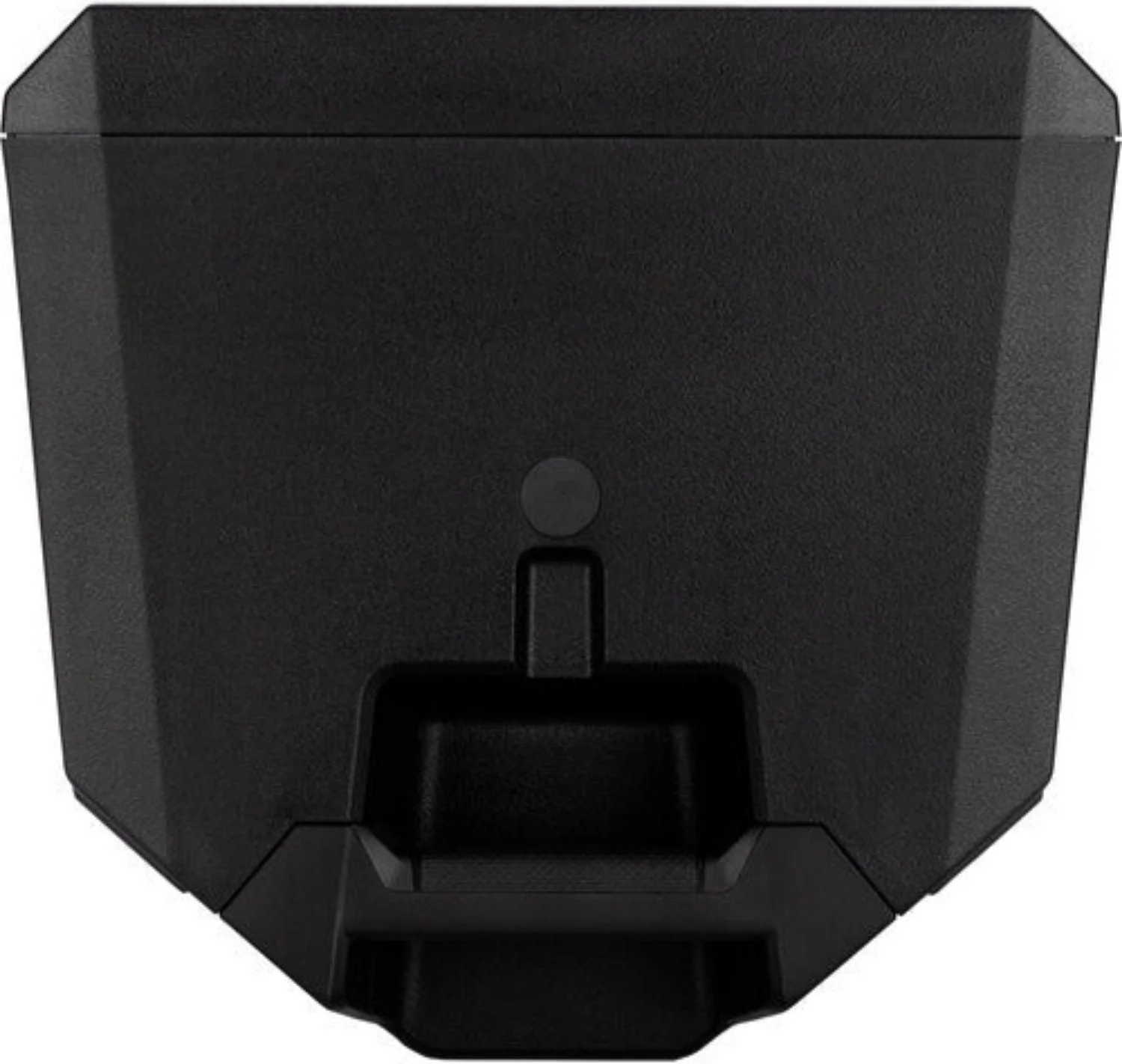

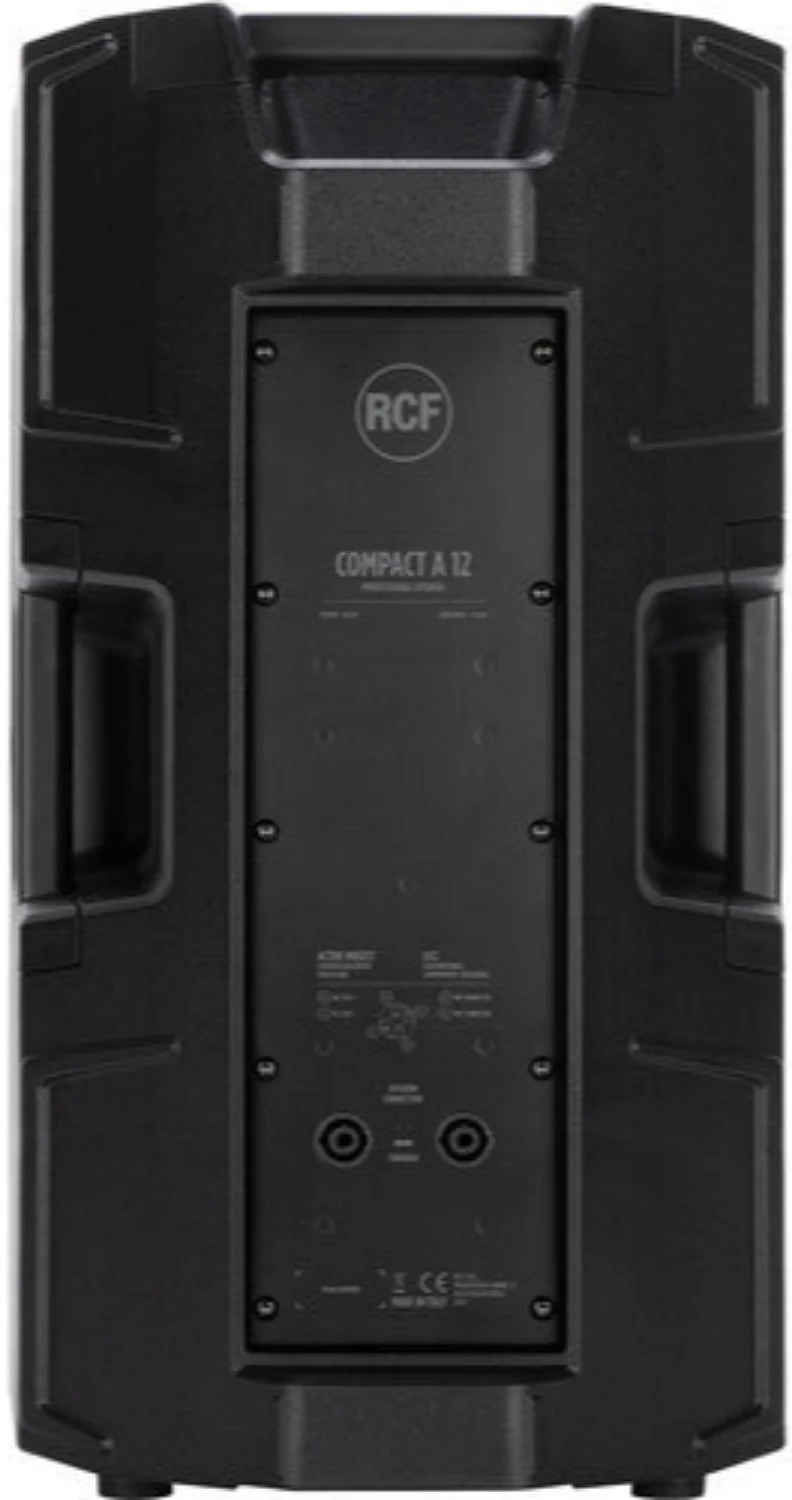

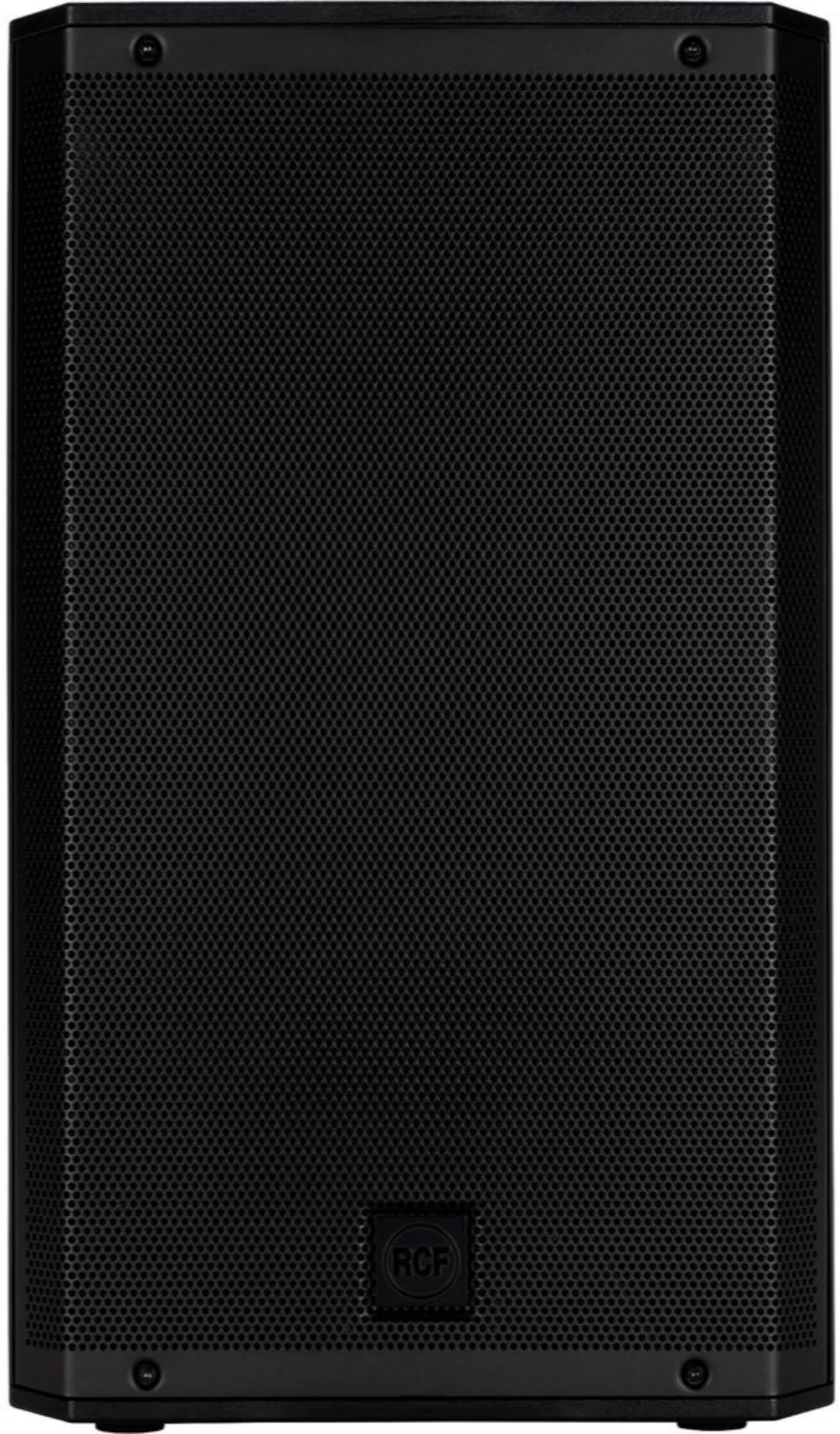

RCF COMPACT A 12 Passive 12 Inch 2-Way Speaker - 400 Watt - Black

RCF COMPACT A 12 Passive 12 Inch 2-Way Speaker - 400 Watt - Black

The COMPACT A 12 is a multipurpose two-way full-range professional speaker system, suitable for a wide range of applications, such as live sound reinforcement and stage monitoring as well as distributed sound systems for clubs or music venues. The combination of a 1.75" compression driver, 12" woofer, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with high SPL, distortion-free sound. The sleek and lightweight cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points and available accessories.

Features:

• 400 W power handling
• Up to 129 dB Sound Pressure Level
• 55-20000 Hz linear frequency response
• 1.75" Compression Driver
• 12" High Power Woofer
• Robust composite material cabinet
• Steel full front grille
• Optional mounting accessories
• 2 x SPEAKON connectors

Specifications:

• Acoustical specifications:
  • Frequency Response (-10dB): 55 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 129 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 60°
  • System Sensitivity: 97 dB
• Power section:
  • Amplification: Full Range
  • Nominal Impedance: 8 ohm
  • Power Handling: 400 W
  • Peak Power Handling: 1600 W PEAK
  • Recommended Amplifier: 800 W
  • Protections: Dynamic Active Mosfet
  • Crossover Frequencies: 1200 Hz
• Transducers:
  • Compression Driver: 1.0'', 1.75'' v.c
  • Woofer: 12'', 2.5'' v.c
• Input/Output section:
  • Input connectors: Speakon
  • Output connectors: Speakon
• Standard compliance:
  • CE marking: Yes
• Physical specifications:
  • Cabinet/Case Material: PP Composite
  • Hardware: 1 x M10 top, 1 x M10 each side
  • Handles: 1 top, 1 each side
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Colour: Black
  • Size:
    • Height: 641.6 mm / 25.26 inches
    • Width: 369.9 mm / 14.56 inches
    • Depth: 363 mm / 14.29 inches
    • Weight: 18.2 kg / 40.12 lbs
• Shipping information:
  • Package Height: 685 mm / 26.97 inches
  • Package Width: 430 mm / 16.93 inches
  • Package Depth: 423 mm / 16.65 inches
  • Package Weight: 20.2 kg / 44.53 lbs
