Neumann MT 48 12x16 USB-C Audio Interface w/ 2x Preamps

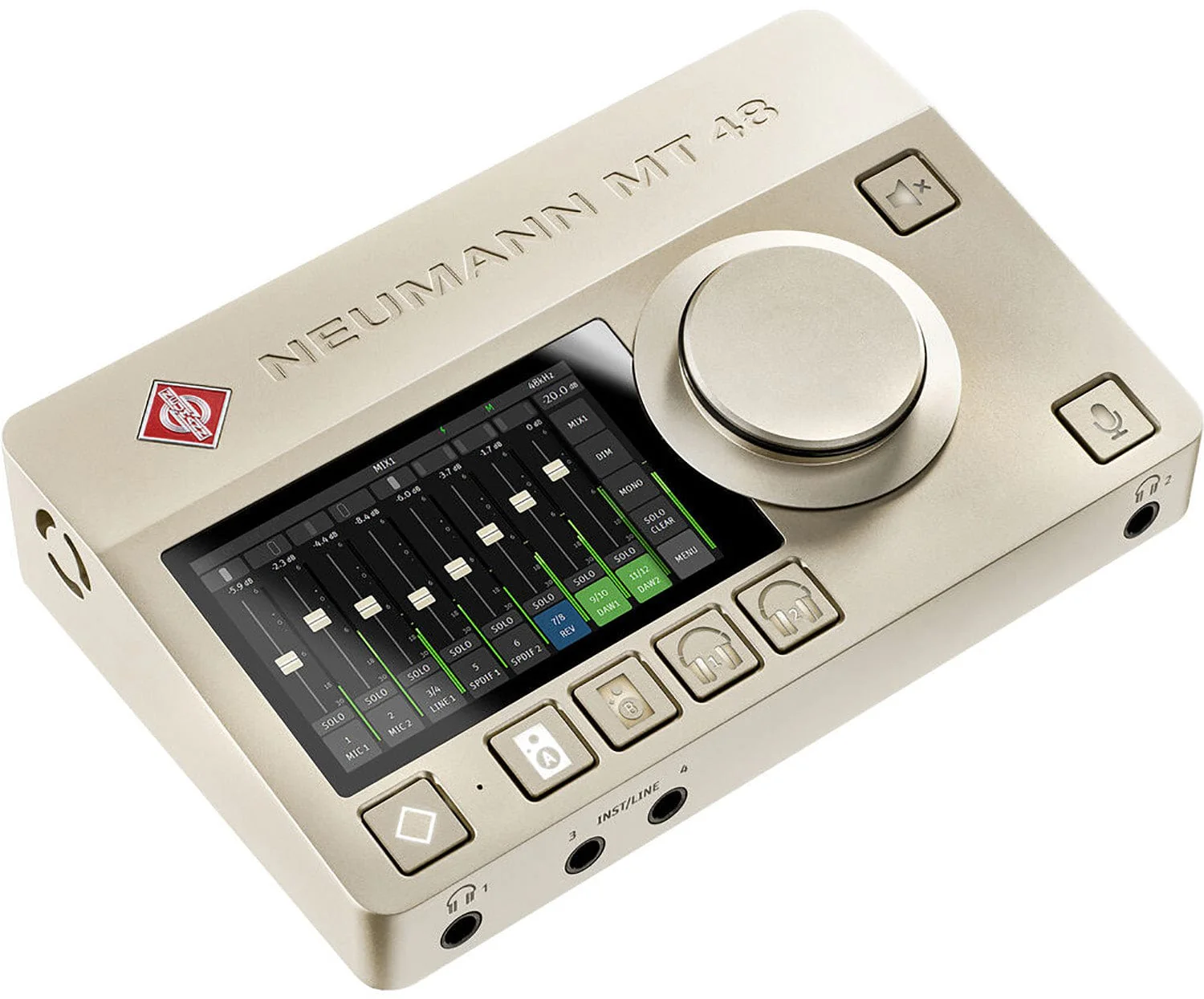

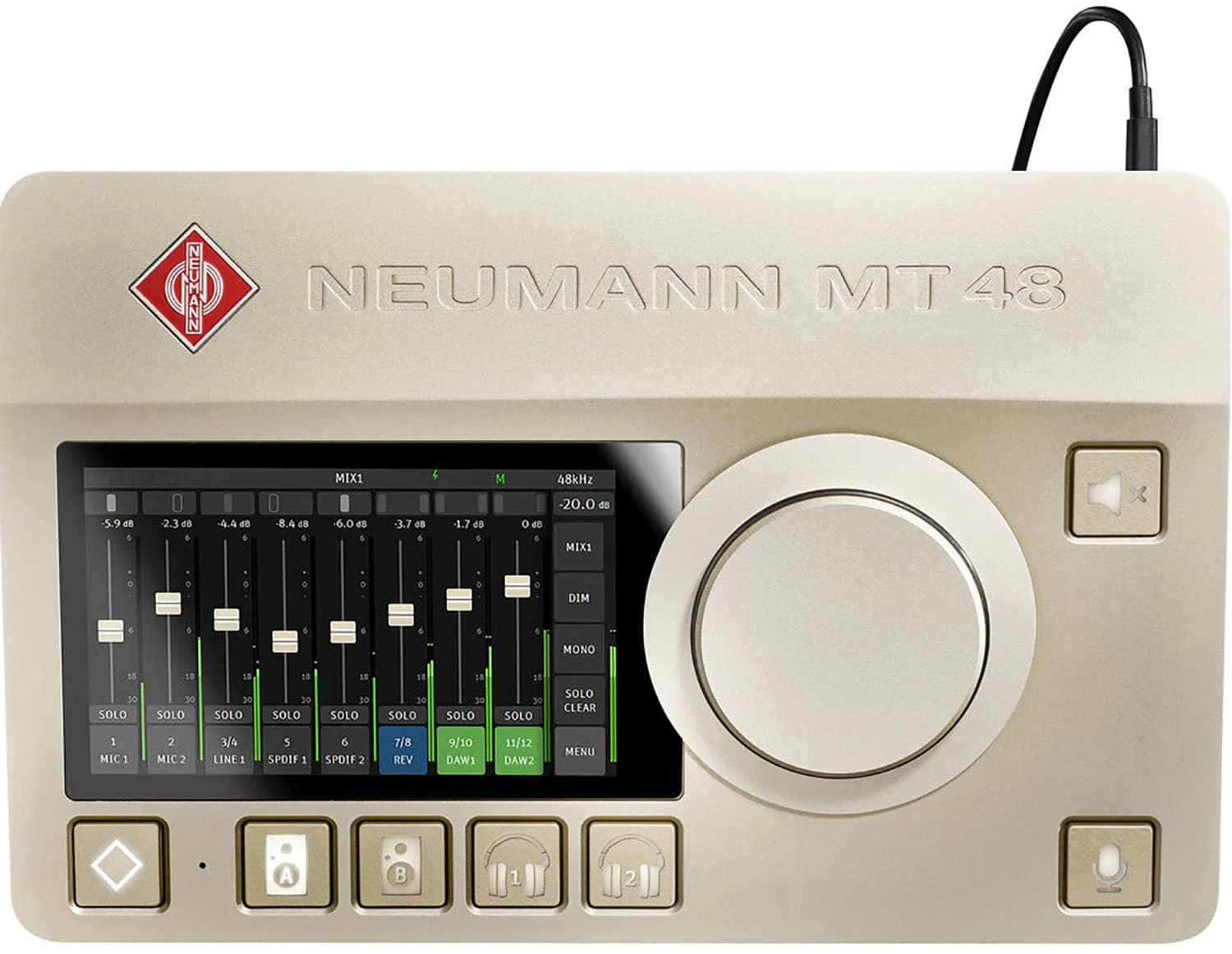

Neumann MT-48 USB / AES67 Audio Interface

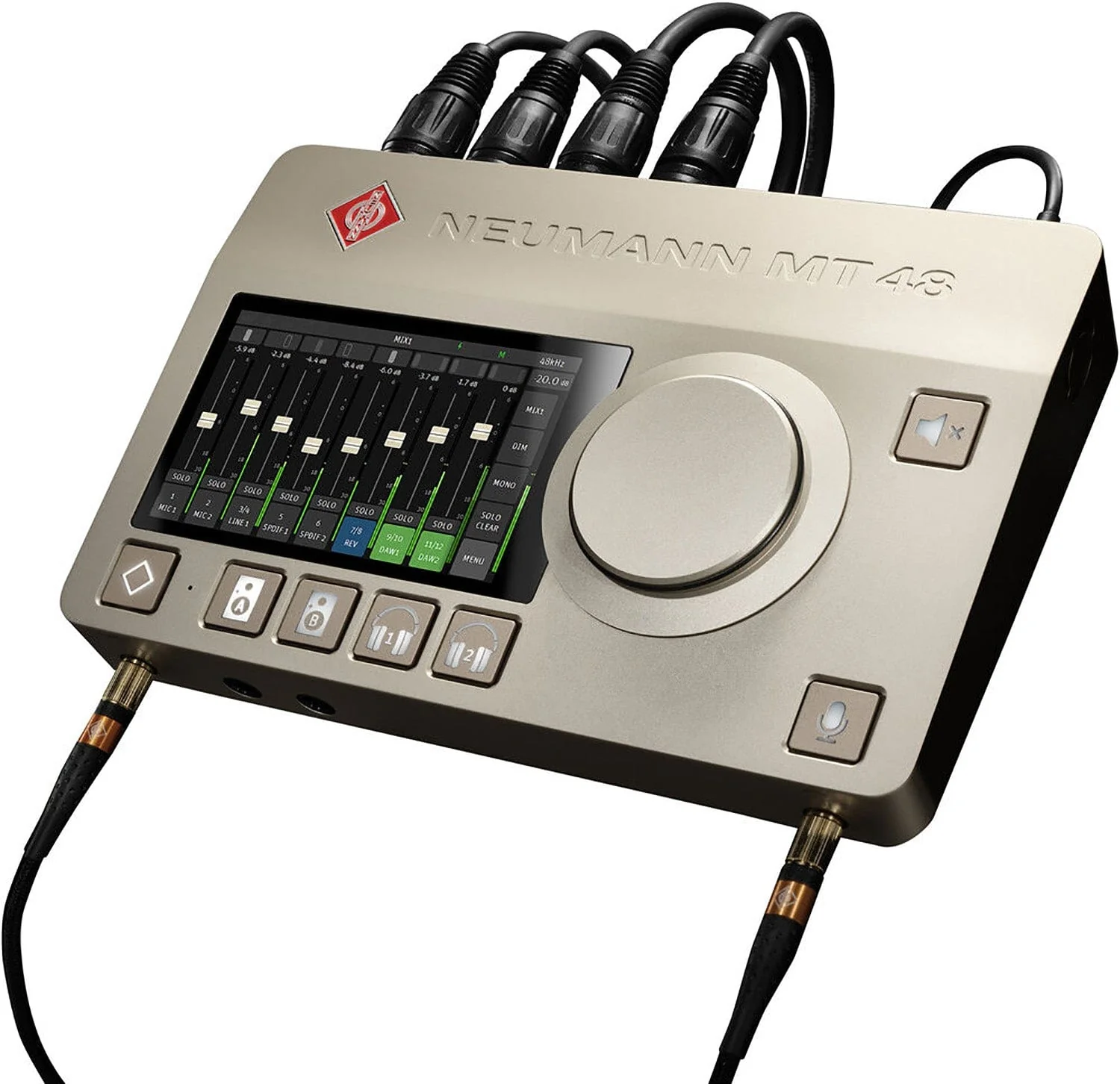

The MT-48 saunters into the sold-out audio interface arena leaving the crowd breathless. With a dynamic range of 136 dB(A), this interface accurately captures everything from a whisper to a scream making it the perfect partner for Neumann condenser microphones (sold separately). The MT-48 is also capable of up to 78 dB more gain than the competition so you can dust off your vintage low-output ribbon mic and realize its full potential. A high-resolution touchscreen user interface gives you access to an integrated digital mixing console featuring EQ and dynamics processing on every channel. Powerful ultra-low impedance headphone outputs offer better performance than many external headphone amps allowing you to get the optimal performance out of any headphones you choose. And the onboard DSP includes a high-end digital reverb so you can deliver monitor mixes designed to inspire the artist and elevate their performance. Neumann's unique Dual Output technology even allows simultaneous pre and post-FX recording for the kind of flexibility you'll appreciate at mixdown. With everything you need for personal recording plus built-in expandability via optical and network ports, the MT-48 is designed to grow with you, always capturing the best you have to offer. Experience legendary Neumann audio quality today.... and tomorrow with the MT-48.

Features:

• Unmatched AD-converter resolution with a dynamic range of 136 dB
• 2 premium-quality mic/line preamps, 2 pristine line/instrument inputs

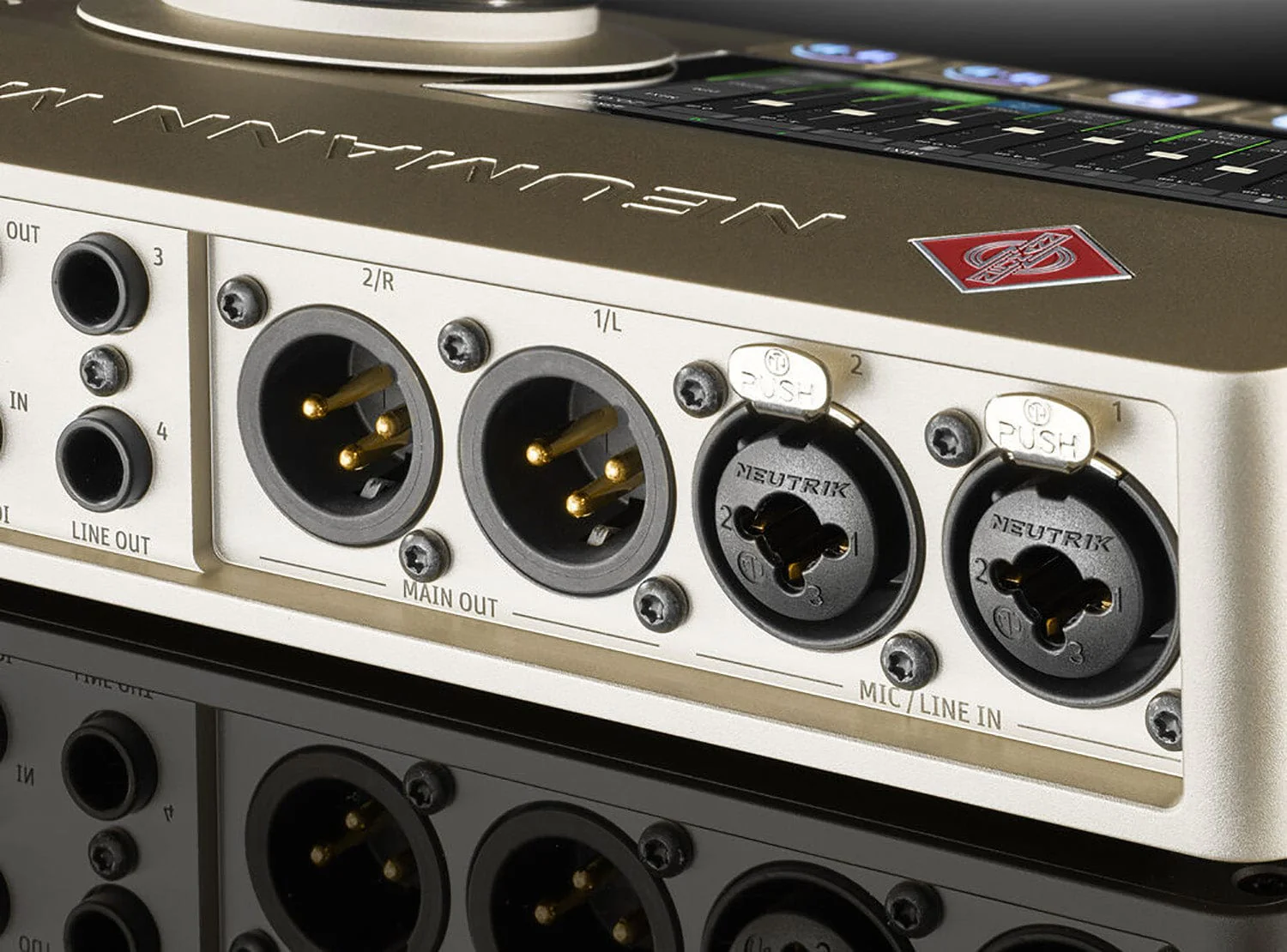

• 4 line/monitor outputs

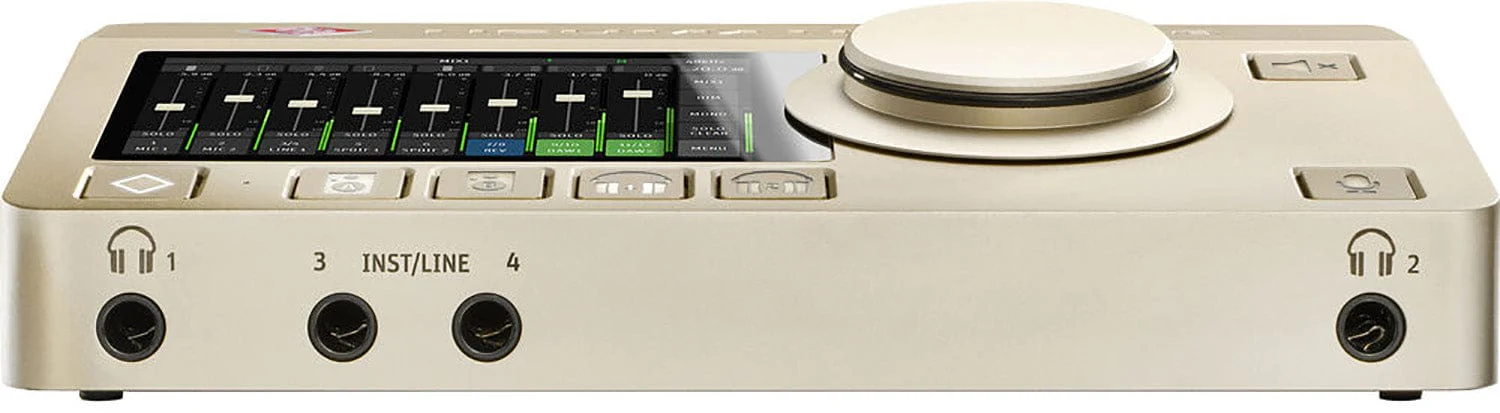

• 2 ultra-low impedance headphone outputs with adjustable crossfeed

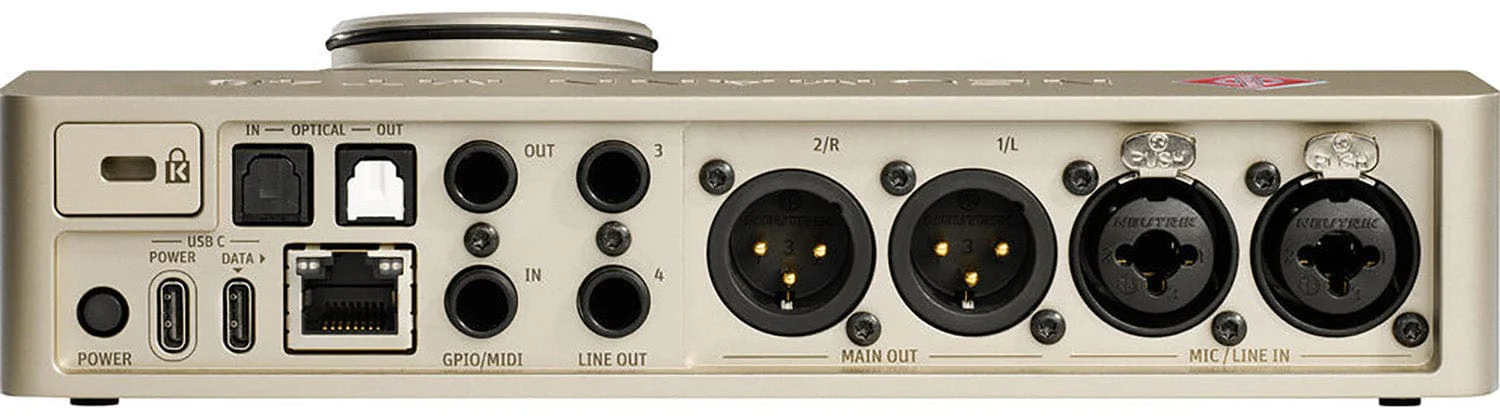

• ADAT / S/PDIF optical I/O, AES67, MIDI/GPIO
• Two driver outputs per input channel for pre-FX and/or post-FX recording

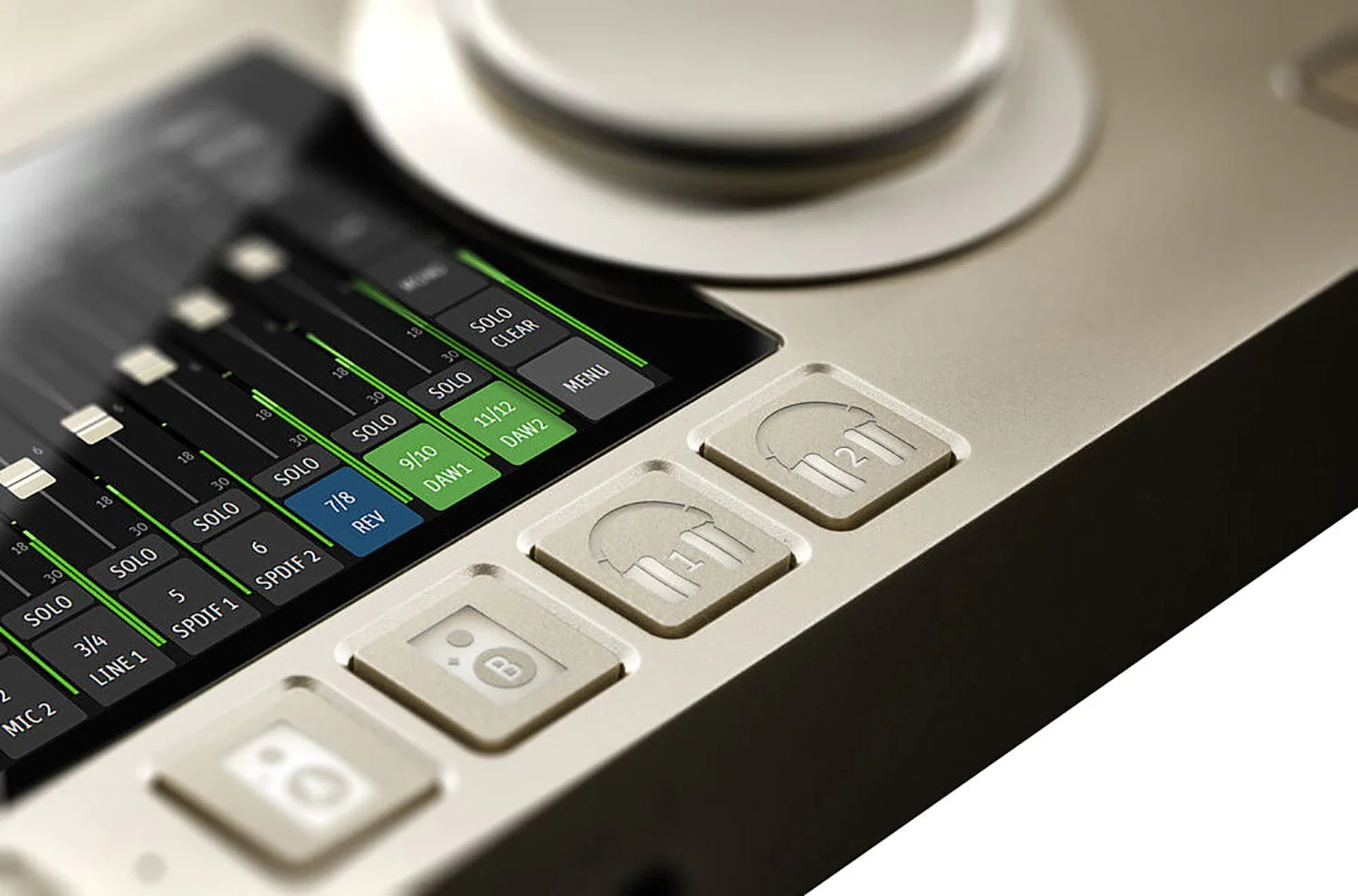

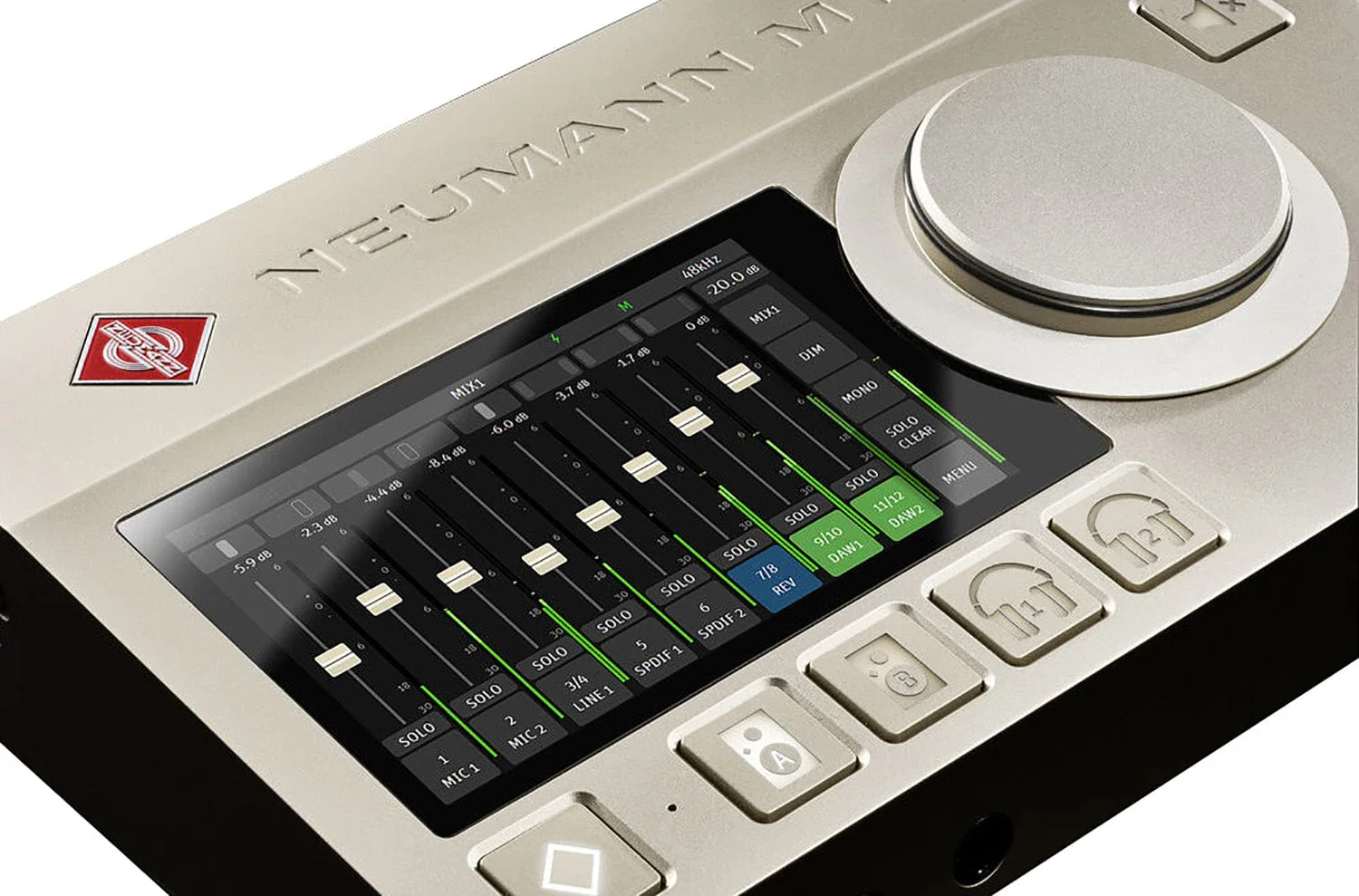

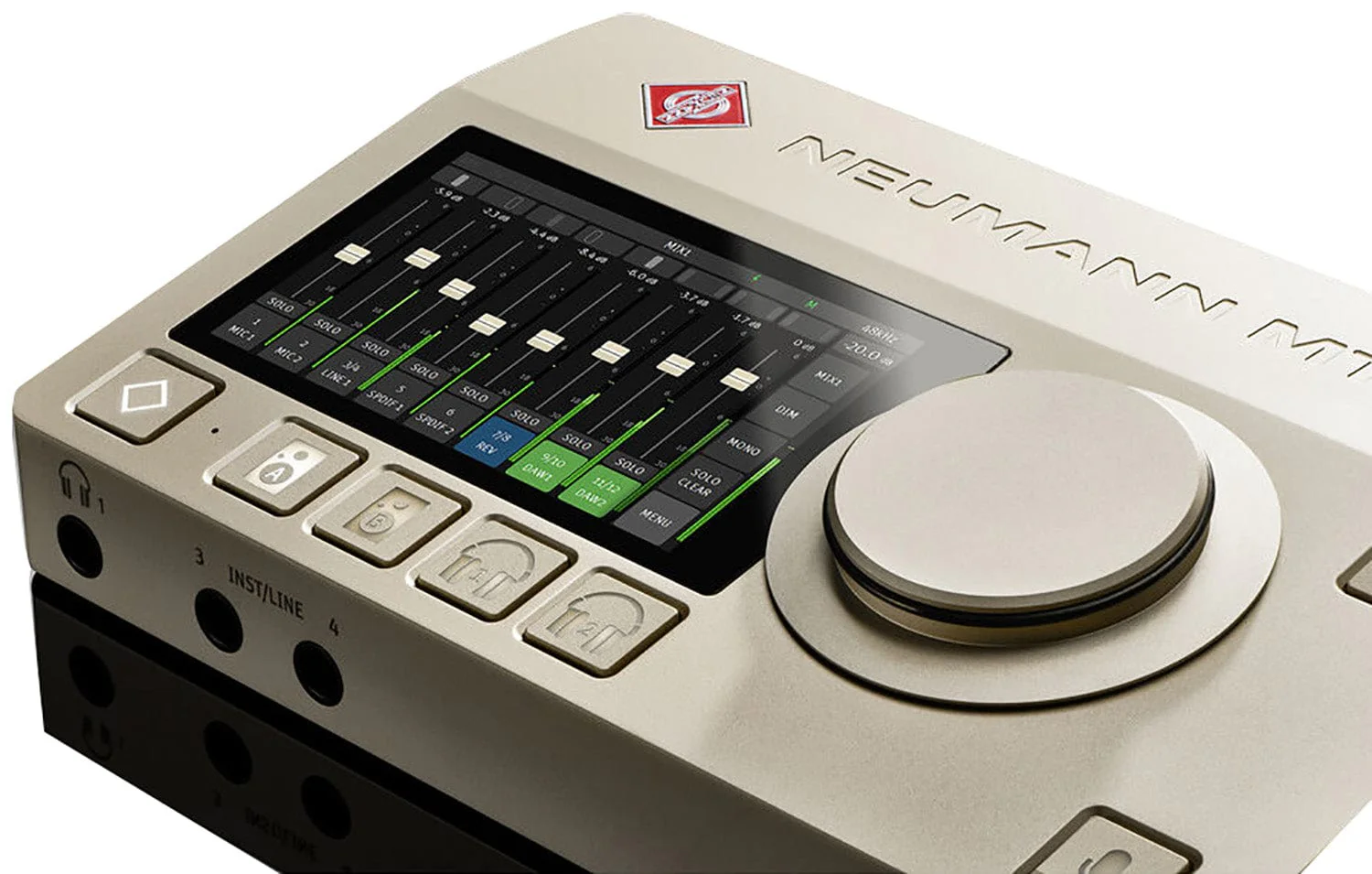

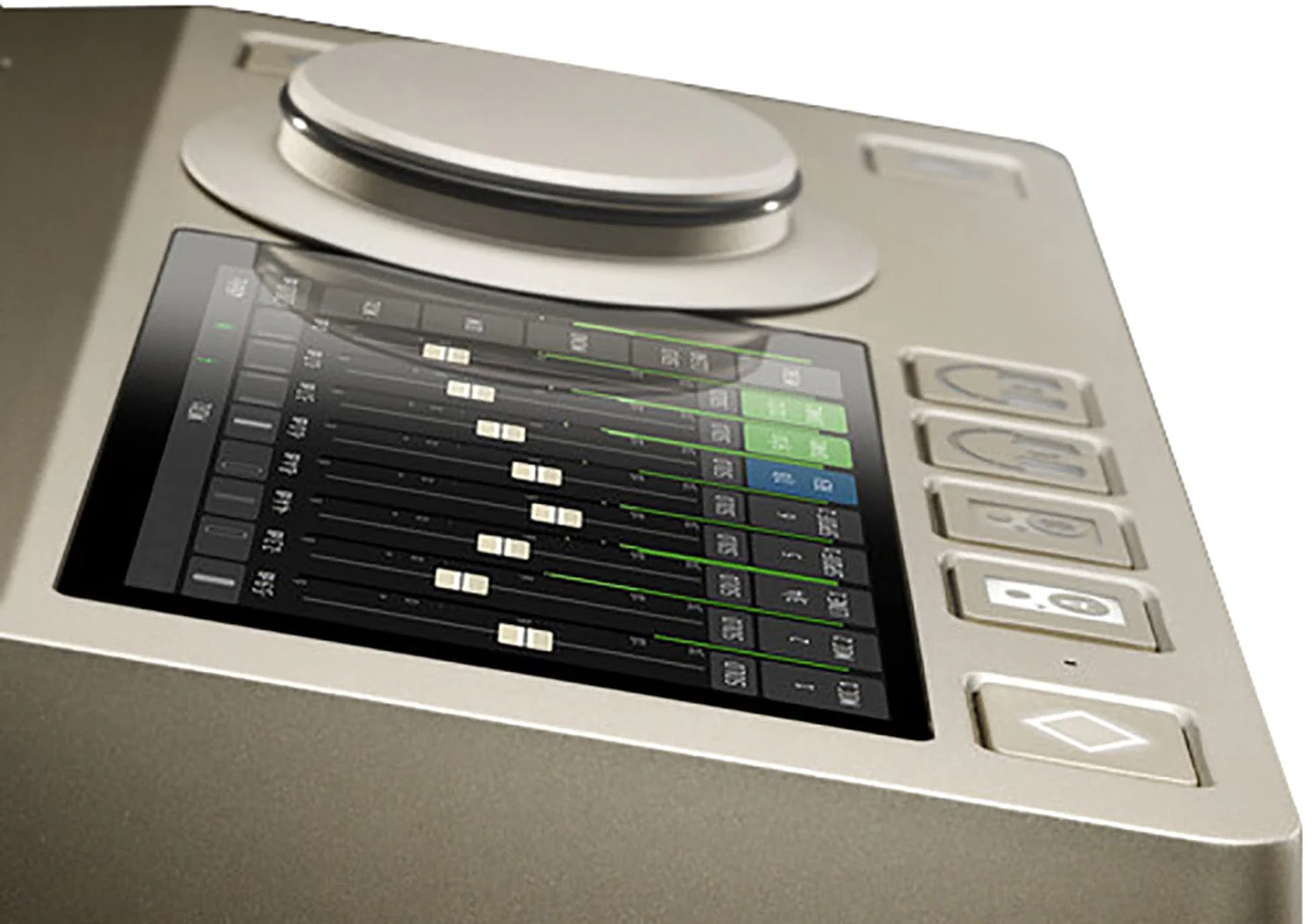

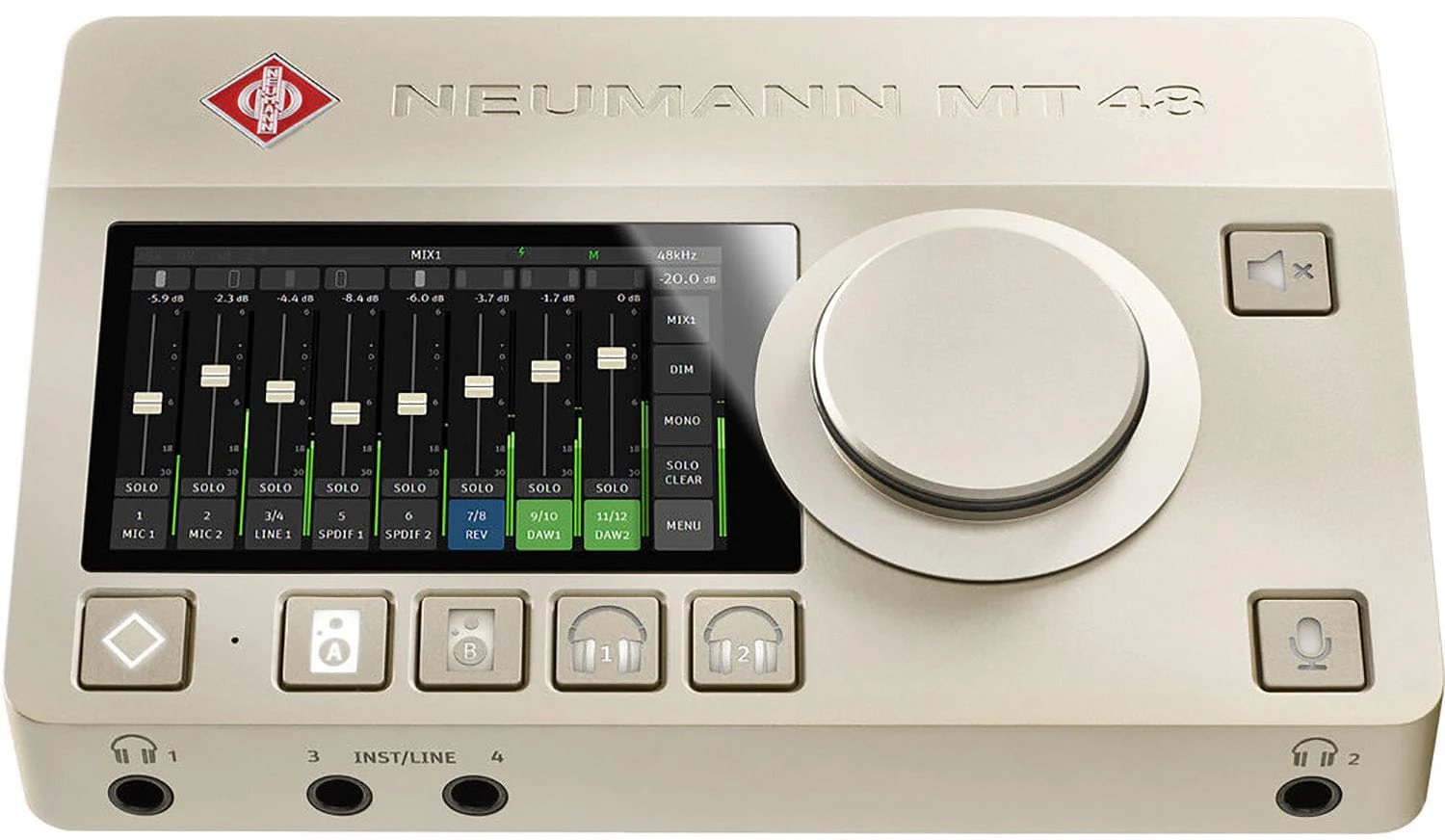

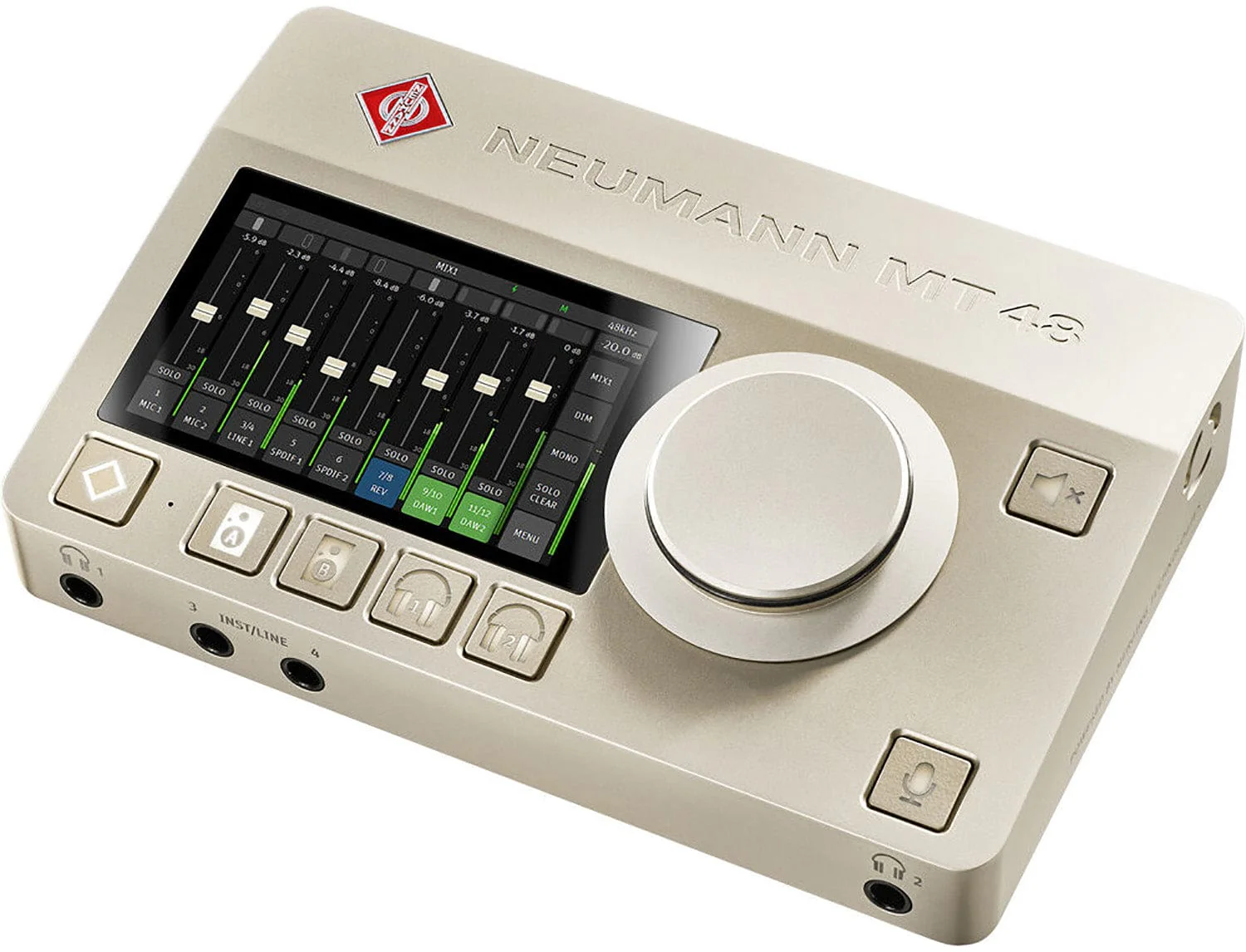

• Intuitive touchscreen user interface

Specifications:

• Mic Inputs 1 -2:
  • Dynamic Range: 136 dB-A
  • Equivalent Input Noise: (150 Ohm) -128 dBu-A
  • Input Impedance: 10 kΩ
  • Gain Range: 12…+78 dB in 0.5 dB steps or 0.1 dB (fine)
  • Pad: 12 dB/24 dB
  • Max. Input Level: 0 /+12/+24 dBu (without Pad/with Pad)
  • THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -110 dB (0.0003%)
• Line Inputs 1-2:
  • Dynamic Range: 138.5 dB-A
  • Input Impedance: 10 kΩ
  • Gain Range: 0…+66 dB
  • Sensitivity: +24 dBu…-42 dBu
  • Max. Input Level: +24 dBu
  • THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -105 dB (0.0006%)
• Instrument/Line Inputs 3 - 4:
  • Dynamic Range: 135 dB-A
  • Input Impedance: 2 MΩ (balanced) / 1 MΩ (unbalanced)
  • Gain Range: 0…+66 dB
  • Sensitivity: +18 dBu … -48 dBu
  • Max. Input Level: +18 dBu
  • THD + N Preamp + ADC @ 1 kHz, 0 dBFS: < -112 dB (0.0003%)
• Line/Monitor Outputs:
  • Output Impedance: < 70 Ω
  • THD+N@ 1 kHz, 0 dBFS: < -110 dB (0.0003%)
  • Dynamic Range: 123 dB-A
  • Max. Output Level : +24 dBu
  • Headphone Outputs
  • Output Impedance: 0.035 Ω
  • Dynamic Range: 122 dB-A (high) / 117 dB (low)
  • Max. Output Level: +16 dBu (high) /+8 dBu (low)
  • AES67/Ravenna: Standard RJ-45 Gigabit-Ethernet-Anschluss
  • Expansion Connectivity: "ADAT/S/PDIF optical I/O, MIDI I/O via 1/4” jack, (DIN5 adapter set available from Neumann: Cat. No.700261)"
  • Computer Interface: USB-C, 2.0 High Speed (480 MB/s) or higher
