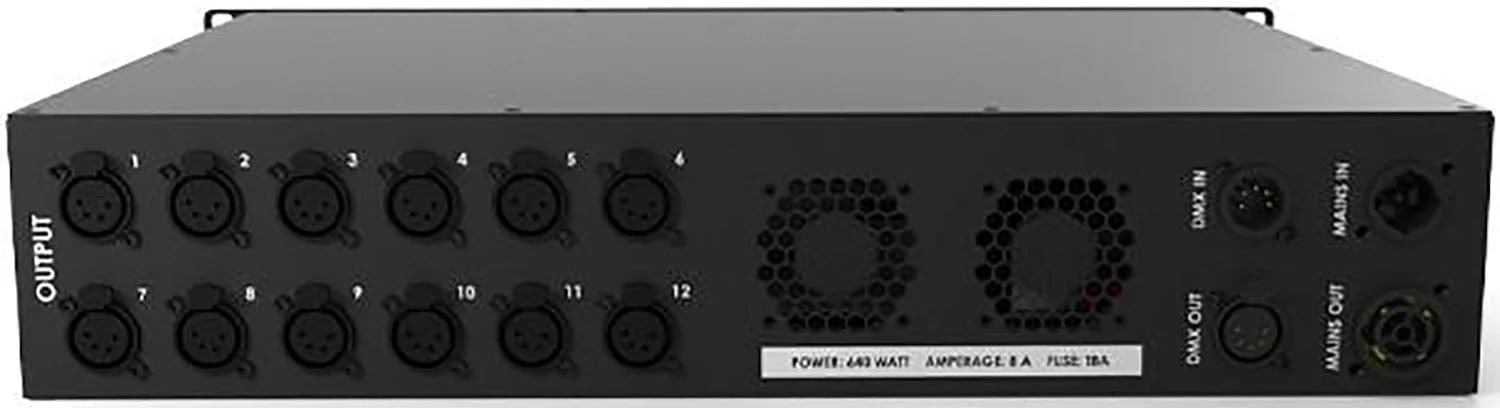

GLP 767170 Rackmount X4 Atom PSU 12 Way Output

GLP 767170 Rackmount X4 Atom PSU 12 Way Output

Rack mounted 19" PSU for up to 12x X4 atom.

Specifications:

• Control:
  • Protocol: DMX (USITT DMX512-A)
  • Display:
    • illuminated graphic LCD
    • backlit buttons
• Connectors:
• Signal connection:
  • XLR 5-Pin
  • In/Out
• Power input:
  • Neutrik PowerCON
  • In/Out
• Operating Conditions:
  • Mains voltage: 100 – 240 VAC / 50 – 60 Hz
  • Power (Watt @ 230V): 35 W / X4 atom Head
  • Fuse: 20mm T 8A
  • Maximum ambient temperature: 45°C / 115°F
  • Operating Position: any
• Mounting Options:
  • Safety wire attachment: 2 eyelets
  • Standing: Rubber feet
  • Hanging (vertically): M10 socket for half coupler, or other clamp
• Housing Colors:
  • Standard colors
  • black
• Shipping:
  • Single fixture: cardboard
• Dimensions & Weight:
  • Height: 108 mm / 4.25 in
  • Width: 197 mm / 7.76 in
  • Length: 314 mm / 12.36 in
  • Weight: 4.1 kg / 9.04 lbs
