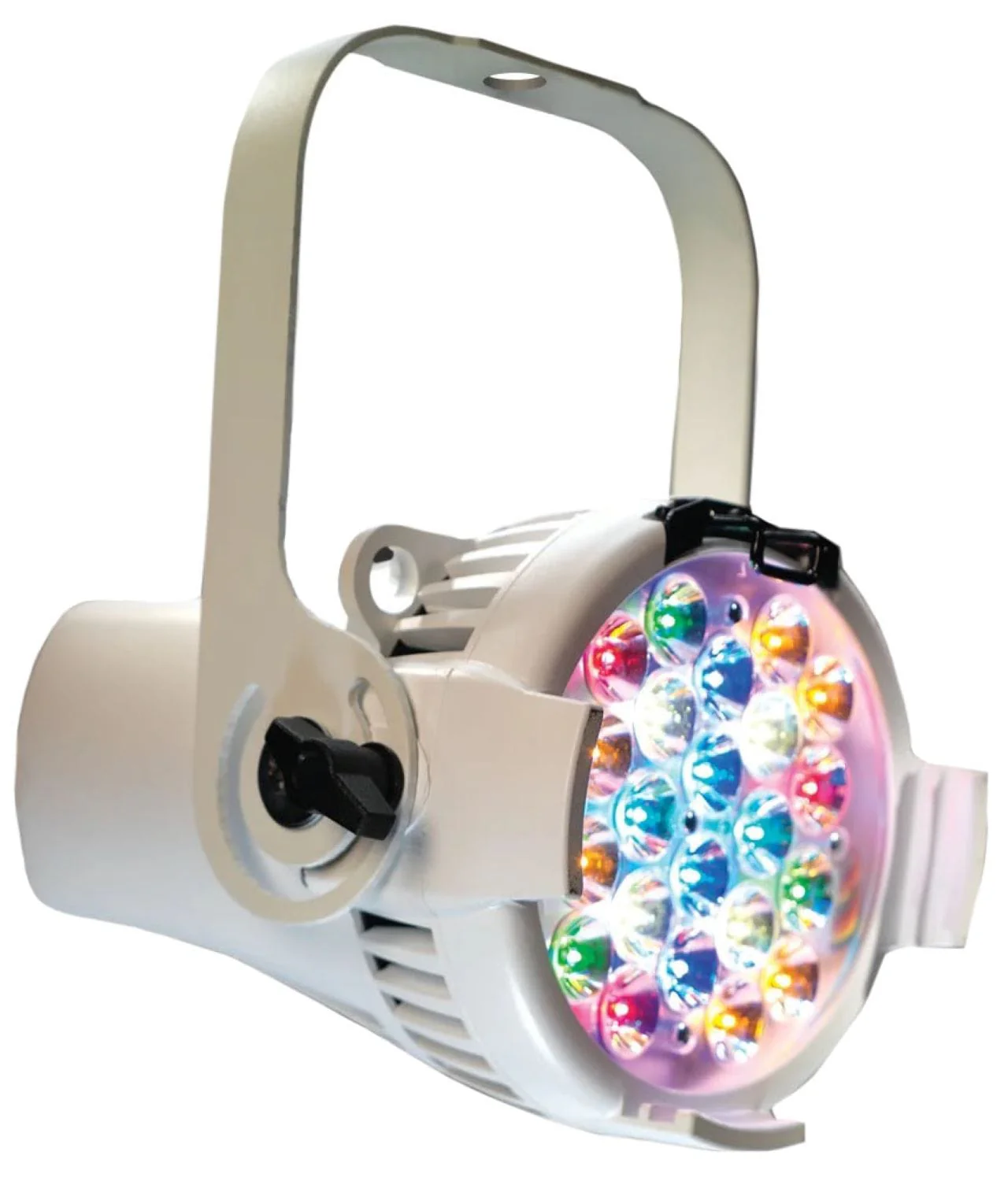

ETC Desire D22 Studio HD Wash Light
ETC Desire D22 Studio HD Wash Light
The Desire D22 Studio HD brings lighting control to a remarkably compact form factor.
This rugged wash light integrates the advanced x7 Colour System into a sleek, round design built on a die-cast enclosure engineered for durability in demanding environments.
The Studio HD creates high-definition white light with variable colour temperatures.

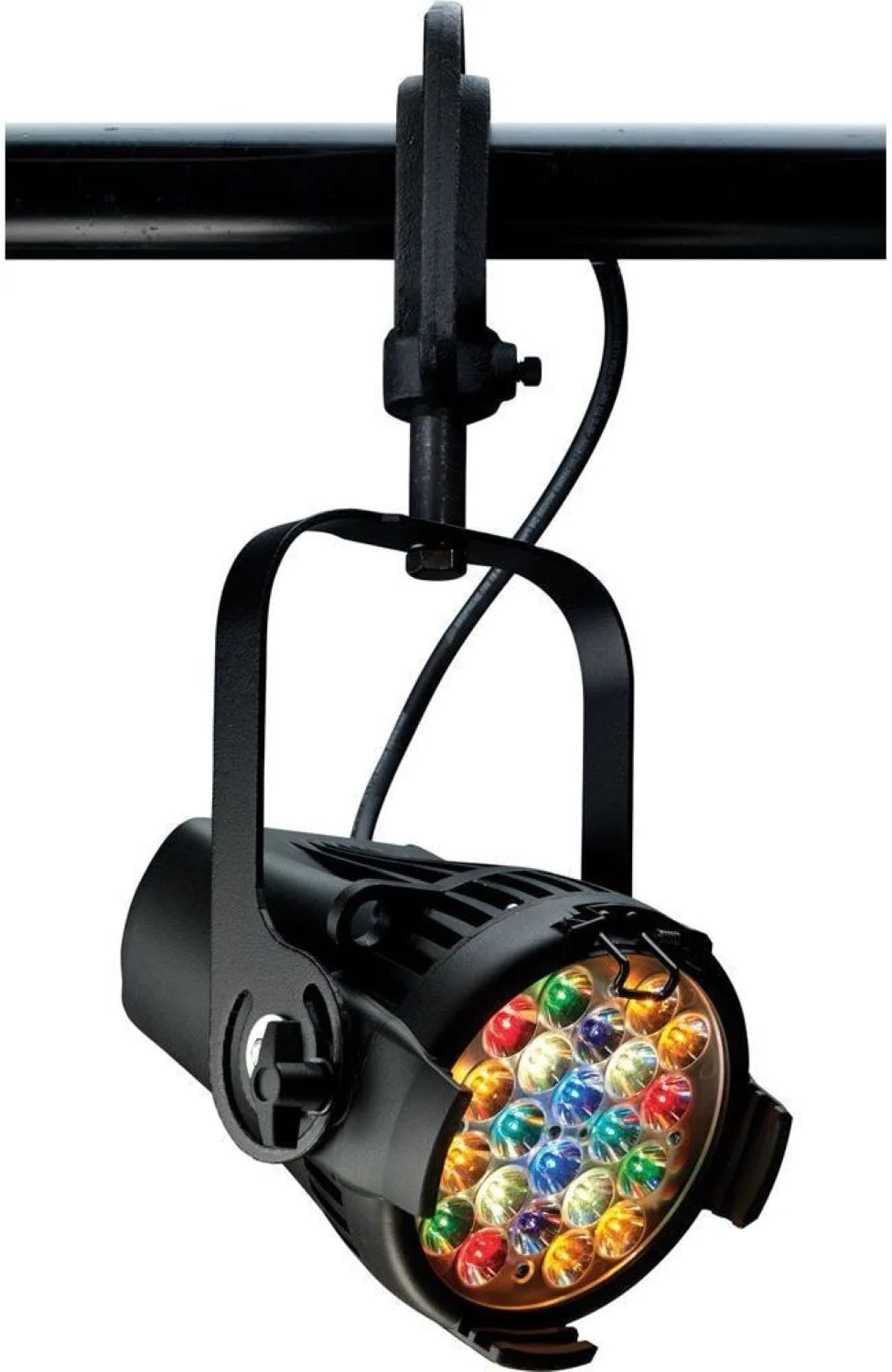

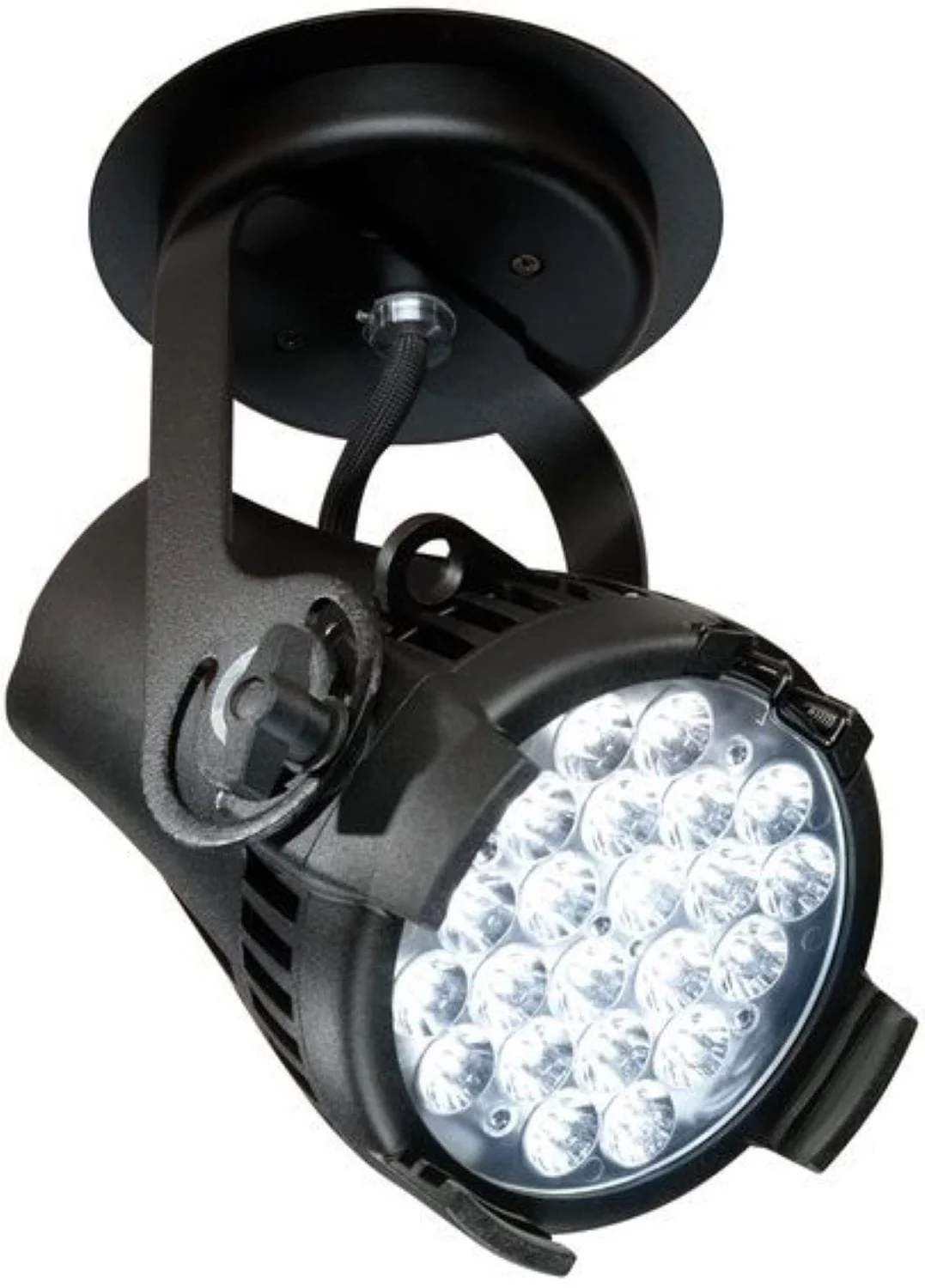

The Desire D22 Studio HD Wash Light is available as portable LED, or ceiling-mount canopy configurations to integrate seamlessly into your rig. It is also available in black, silver or white.
Specifications:
- Source:
- LED details: 22 Lumileds LUXEON® Rebel LED
- Max lumens: 1,247
- Lumens per watt: 31
- L70 rating (hours to 70% output): 50,000 hours
- Colour:
- Colours used: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
- Colour temperature range: 2,700–6,500 K
- Calibrated array: Yes
- Red shift: Yes
- Optical;
- Beam angle: 8°–71°
- Aperture size: 6 in
- Pattern projection: No
- Camera flicker control/Hz range: Yes - 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Control:
- Input method:
- DMX512 via 5-pin XLR (portable only)
- Permanent power input cable
- Protocols: DMX-512/RDM
- RDM configuration: Yes
- UI type: LCD
- Local control: Yes
- Onboard pre-sets: Yes
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Input method:
- Electrical:
- Voltage range: 100–240 VAC 50/60 Hz
- Input method:
- Requires power from a non-dimmable source
- Portable: Edison, Schuko or UK13A connector
- Inrush (over first half-cycle):
- 17 A at 120 V
- 25 A at 240 V
- Fixtures per circuit: 20 (R20 module or similar)
- Wattage typical: 56.5
- Current draw:
- 0.00 A at 110 V
- 0.48 A at 120 V
- 0.00 A at 230 V
- 0.288 A at 240 V
- Thermal:
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: N/A
- BTUs/hour: 192.778
- Physical:
- Materials: Die-cast, all metal housing
- Colour: White
- Mounting option: Install canopy
- IP rating:
- IP20 for portable and canopy versions
- IP40 for track version
- Weight: 3.13 kg (6.9 lb)
- Included accessories: Hanging yoke
