Elation PROTEUS RAYZOR 760 Wash Fixture
Elation PROTEUS RAYZOR 760 IP65 Rated Wash Effects Fixture

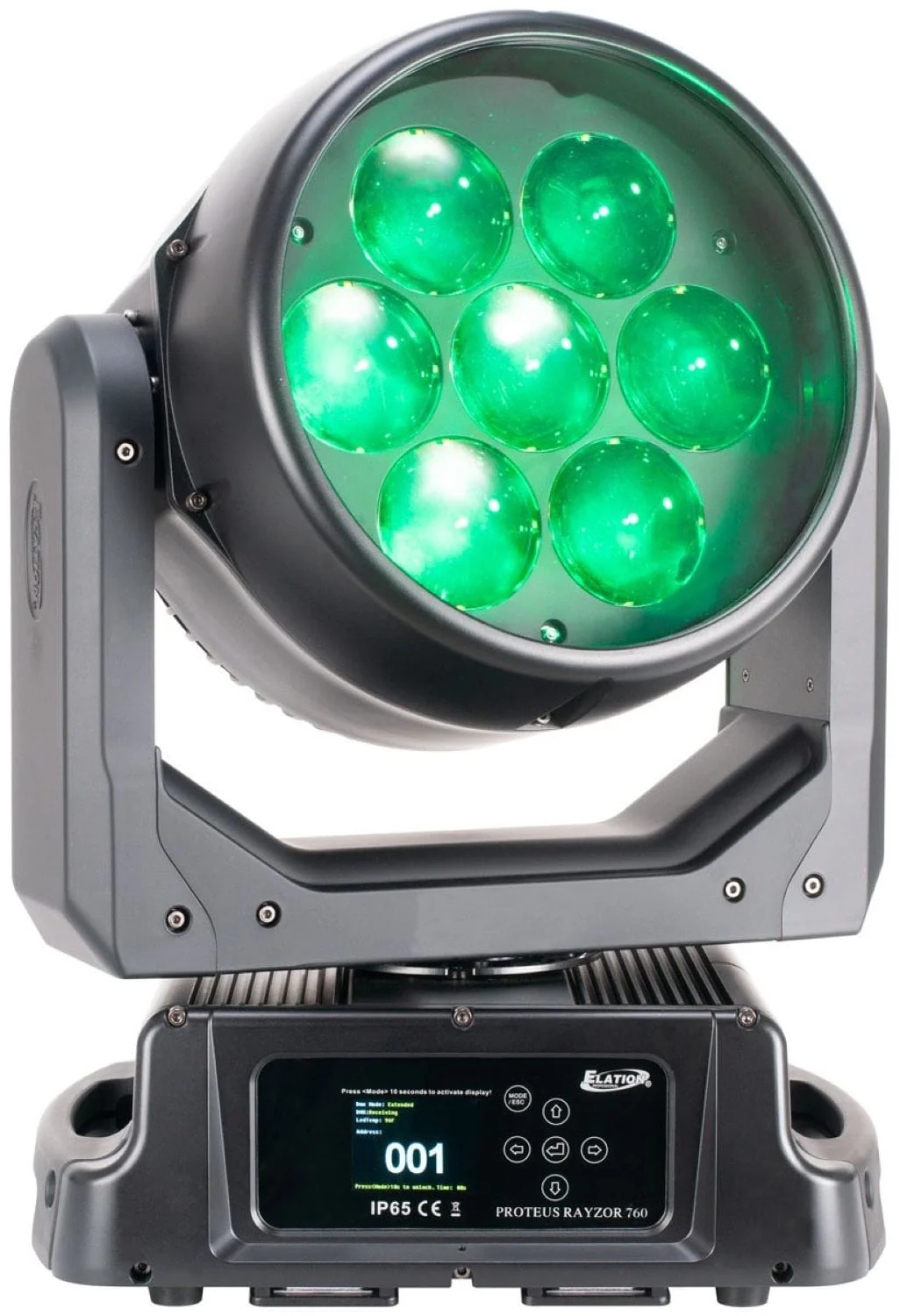

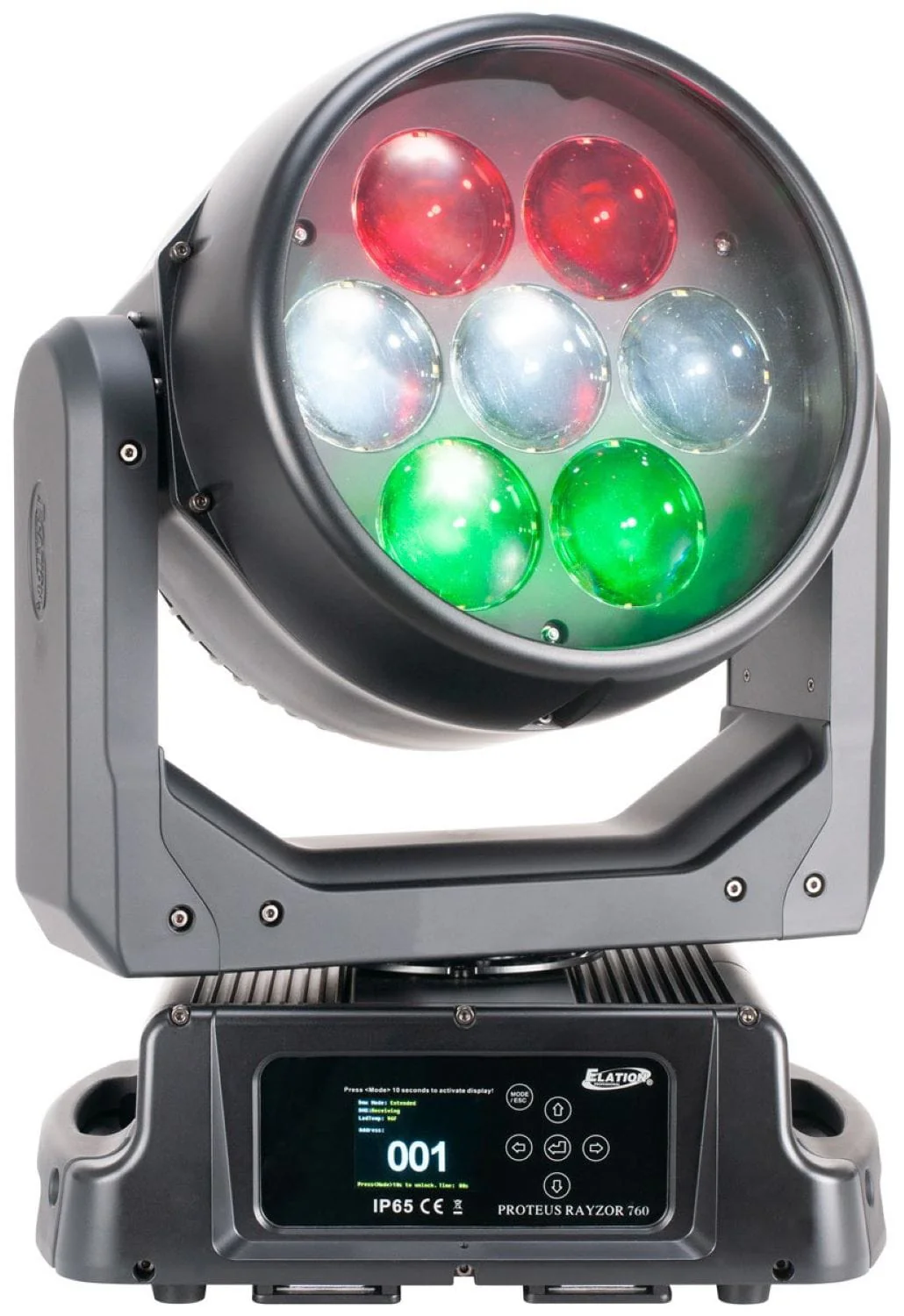

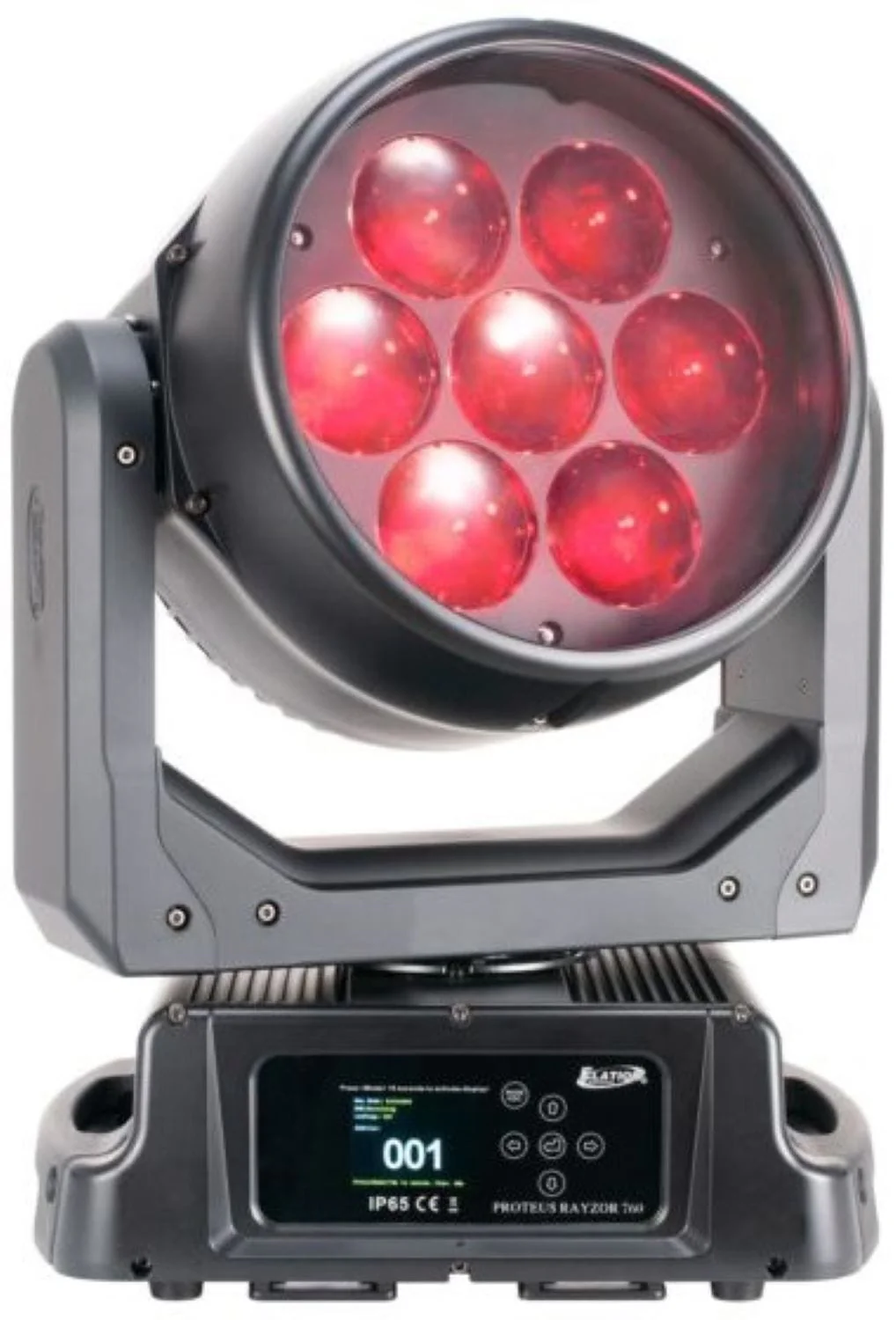

The Proteus Rayzor 760™ is a compact yet extremely powerful IP65 rated Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 7,200 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.
Features:
- IP65 Rated LED Wash Effects Fixture

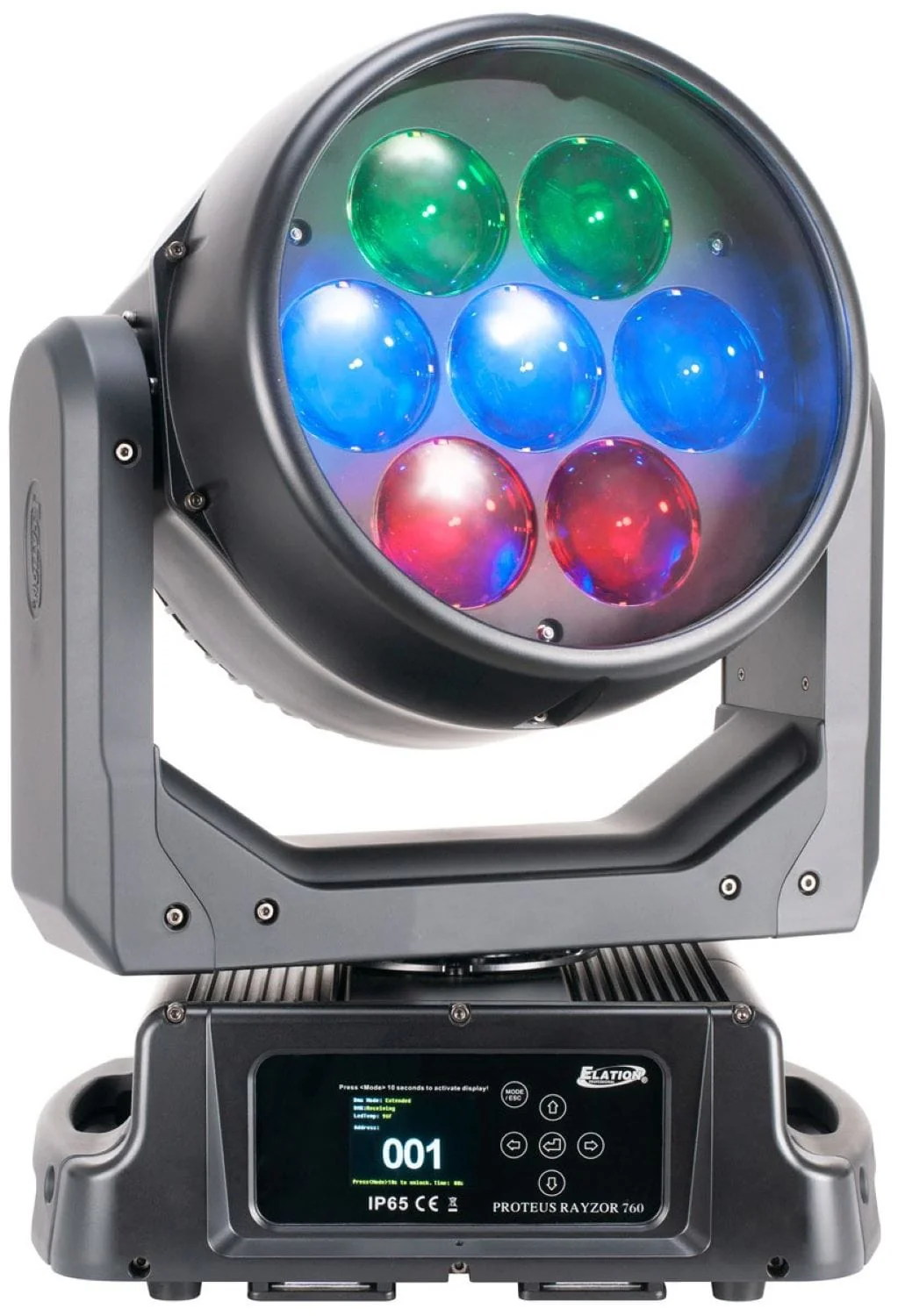

- 7x 60W OSRAM RGBW LED with Pixel Control

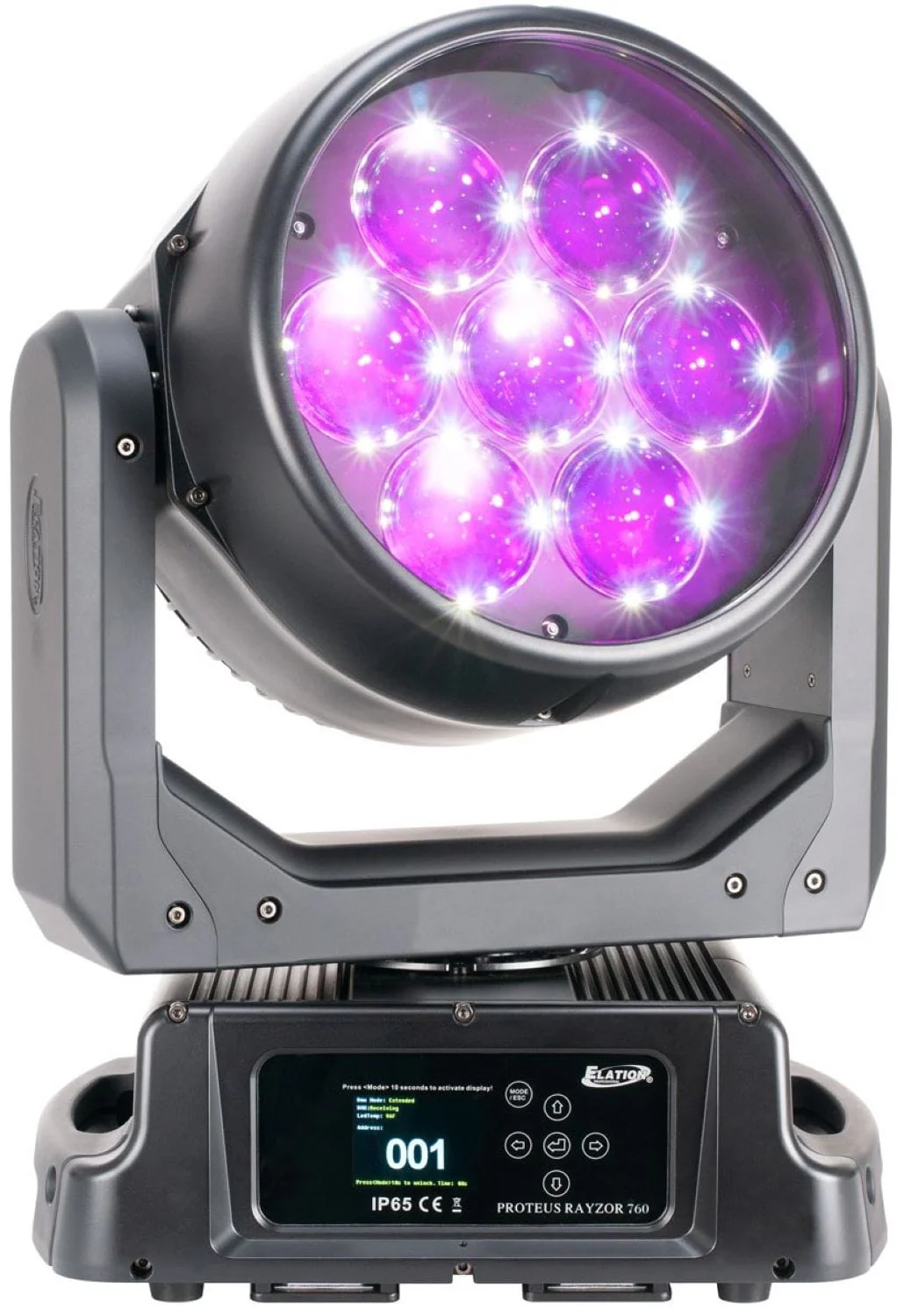

- 28x 2W SparkLED™ Effect with Pixel Control (patent pending)
- Extreme Zoom – 5° for mid-air beam to 77° for even washes
- Fast and precise 360° continuous Pan and Tilt rotation
- Beam FX and Smooth Wash fixture in a compact IP65 certified housing
Specifications:
- Source:
- (7) 60W Osram RGBW LEDs
- (28) 2W White SparkLED™
- 50,000 Hour Average LED Life
- Photometric Data:
- 7,200 Total Lumen Output
- CRI 80
- Zoom Range 5° - 77°
- Beam Angle 5.4° - 56.4°
- Field Angle 8.1° - 74°
- Effects:
- Motorized Zoom
- Linear Color Temperature Presets (2700-8000K)
- RGBW Color Mixing and Pixel Control
- White SparkLED Lens Effect
- Color Presets and Macros
- Electronic Strobe and Variable Dimming Curves
- 16-bit Dimming
- Pan Angle: 540°/630°
- Tilt Angle: 270°/360°
- Control / Connections:
- 3 DMX Channel Modes (25 / 52 / 80 channels)
- 360° Continuous Pan and Tilt Movement
- DMX Adjustable Refresh Rate (900 -25000 Hz)
- (6) Button Touch Panel
- Full Color 180° Reversible LCD Menu Display
- RDM Support

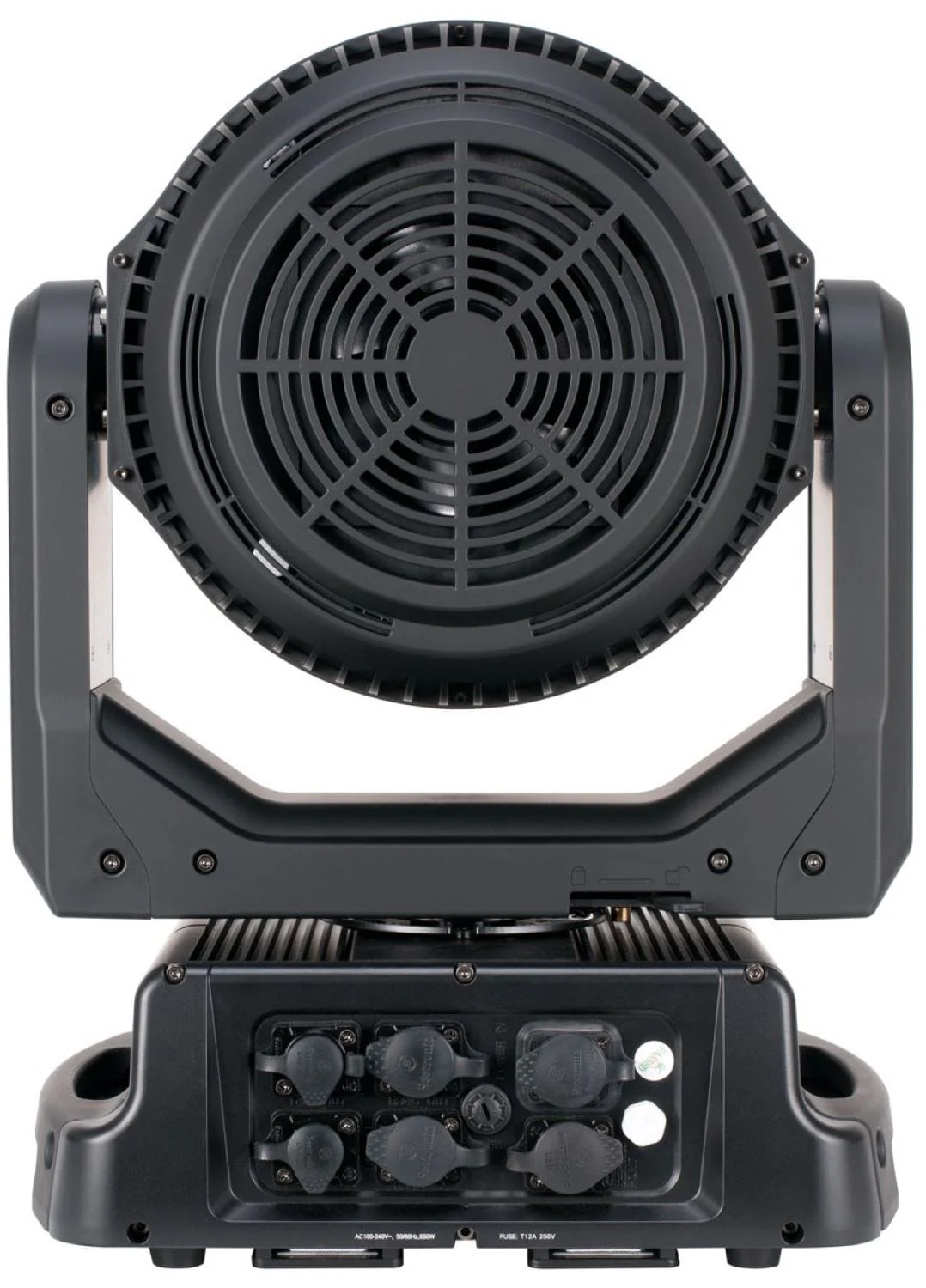

- IP65 5pin XLR DMX In/Out
- IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
- IP65 Locking Power Cable In
- With Wired Digital Communication Network
- Size / Weight:
- Length: 14.31 in (363.4mm)
- Width: 10.24 in (259.97mm)
- Height: 19.43 in (493.44mm)
- Weight: 41.0 lbs. (18.6kg)
- Electrical / Thermal:
- AC 100-240V 50/60Hz
- 700W Max Power Consumption
- BTU/hr (+/- 10%) 2387
- Approvals / Ratings: CE | cETLus | IP65
