Elation FUZE MAX SPOT Fixture
Elation FUZE MAX SPOT Fixture

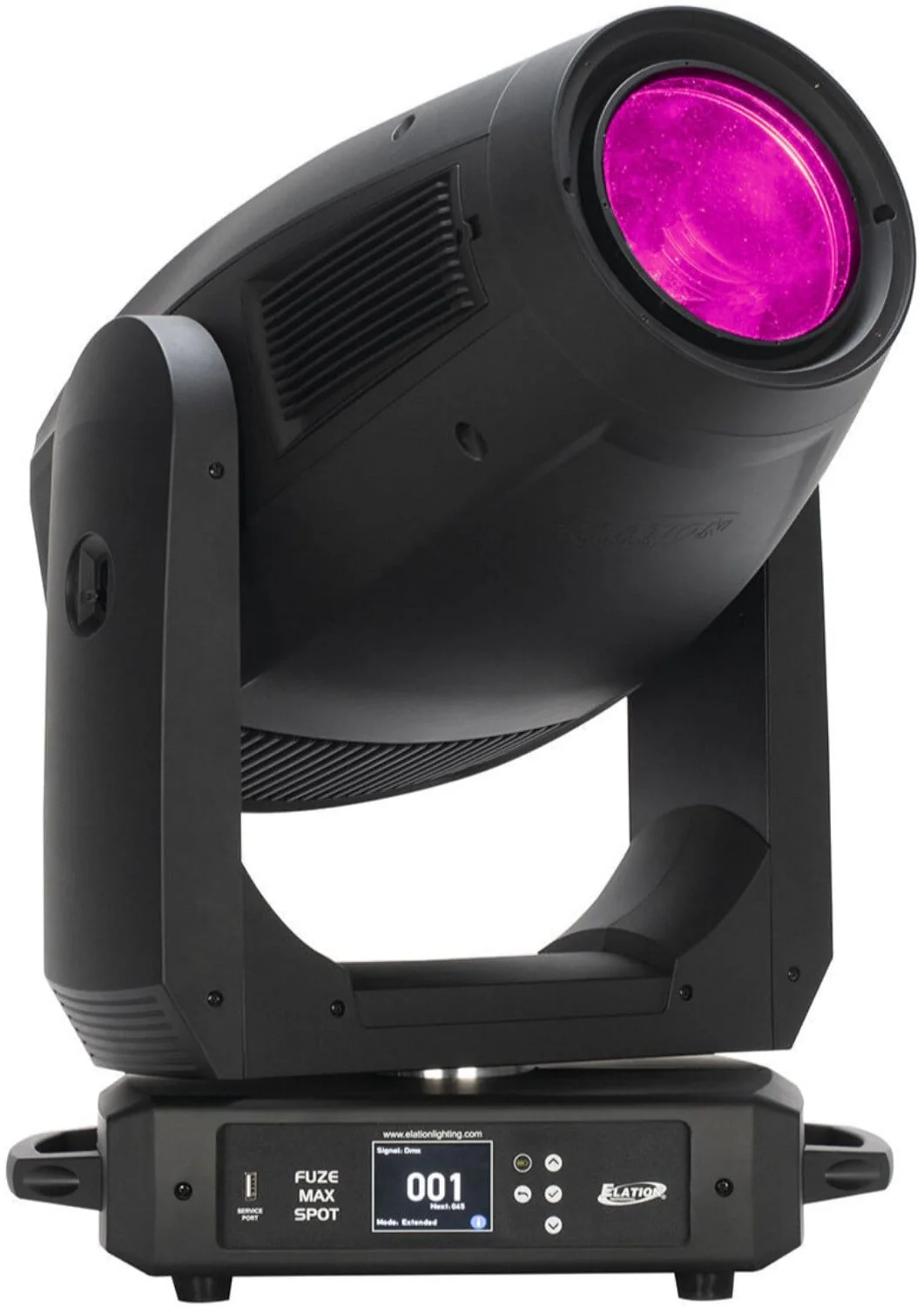

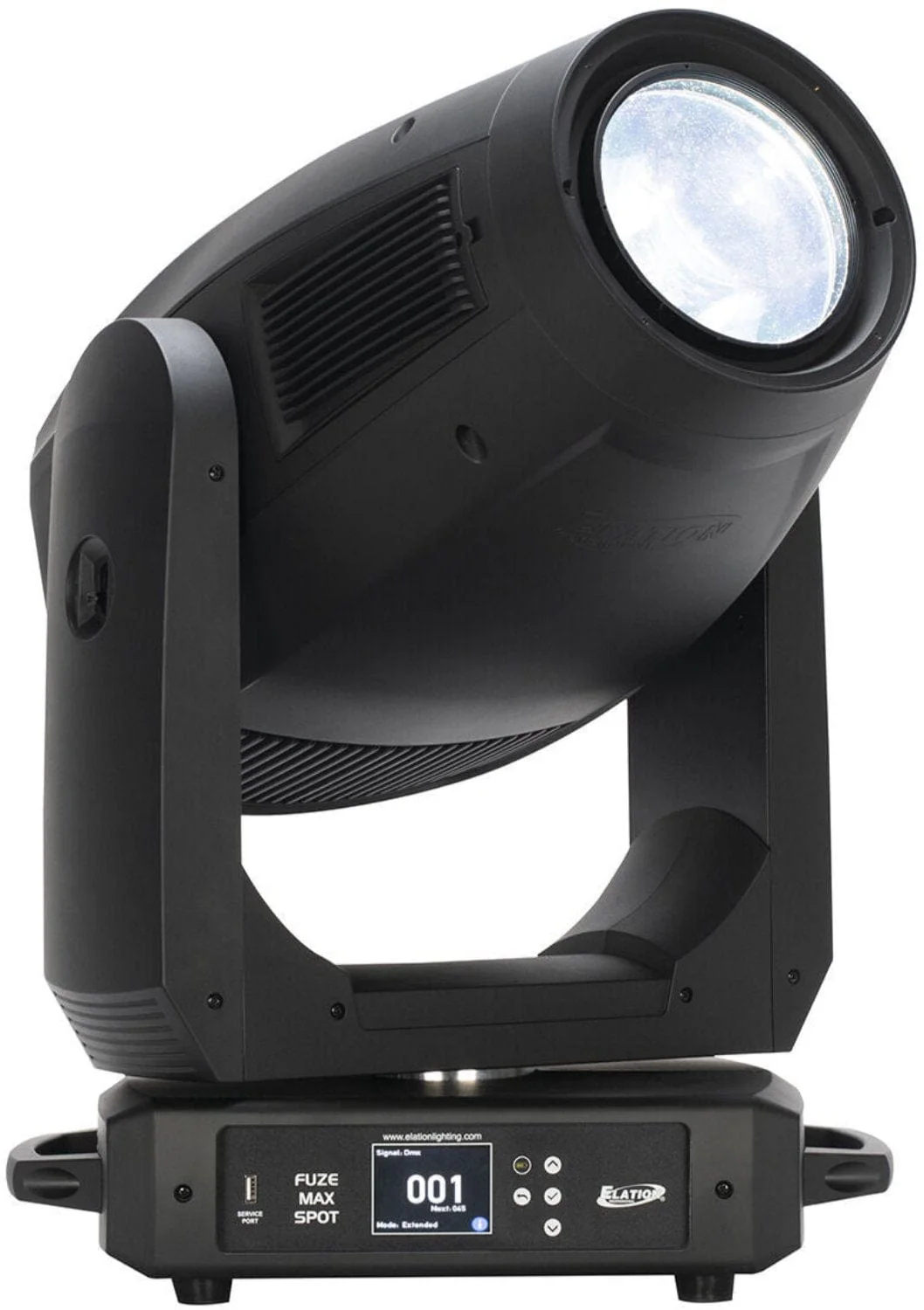

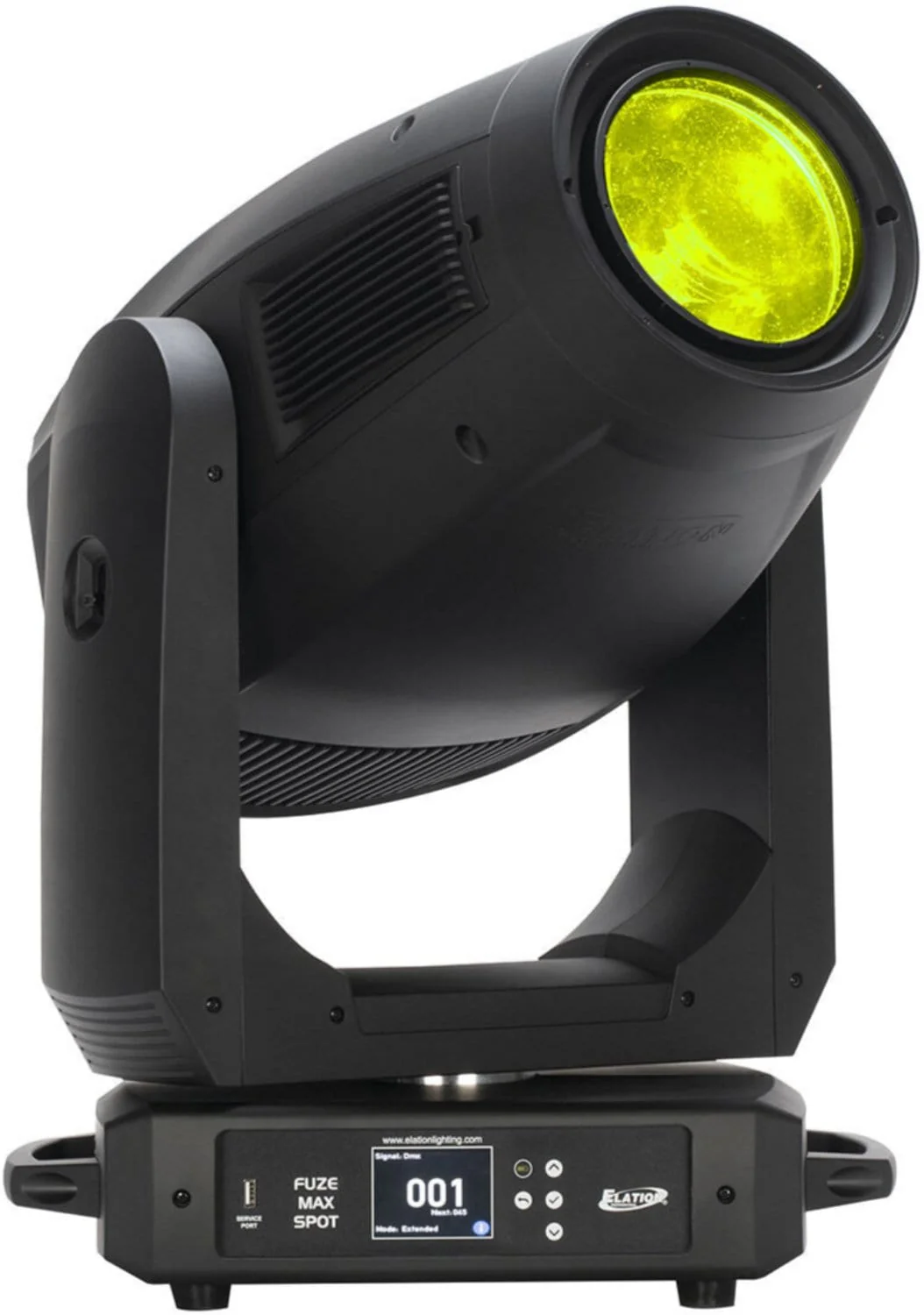

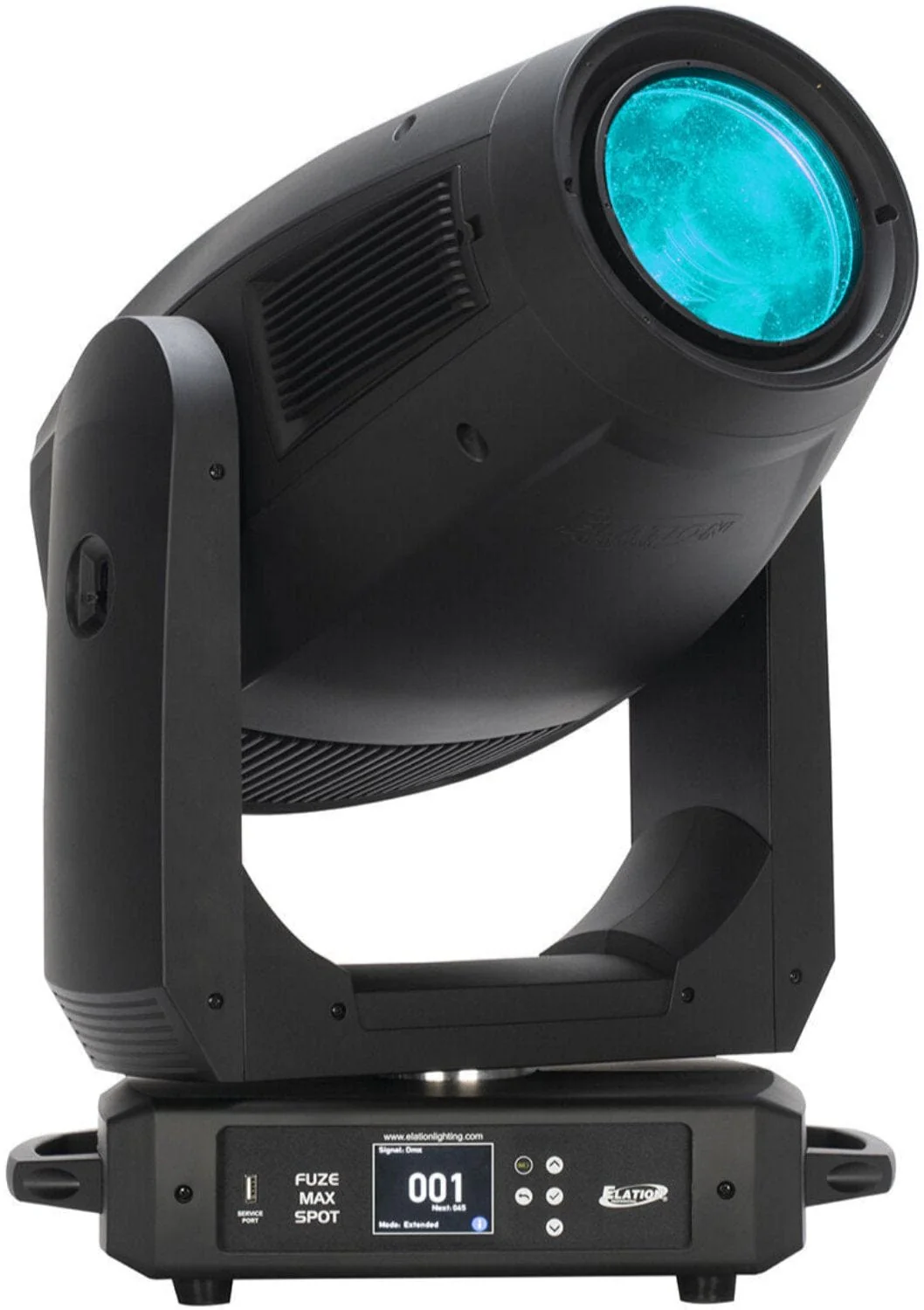

The Elation Professional FUZE MAX Spot is a full-spectrum automated LED spot fixture designed for theatre, television, and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of red, green, blue, mint, and amber sources. The carefully tuned LEDs ensure accurate colour reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual colour temperature, magenta/green adjustment, and CMY emulation provide the designer with immediate access to the impressive LED colour array.
Features:
- Full-spectrum 800W RGBMA LED engine
- Precise dynamic whites from 2400 to 8500K
- Instant color changes; natural color transitions
- Rich and intense primary colors
- Dual rotating and fixed gobos plus animation wheel
- Iris, prism, and dual frost
- Wide zoom range from 7 to 53°
- Large 140mm front aperture
Specifications:
- Fixture Type: Moving Head
- Light Source: Color LED - 800 W
- Colors: Red, Green, Blue, Mint, Amber, Cyan, Magenta, Yellow
- Beam Angle: 7 to 50°
- Control Protocols: DMX512, RDM, Art-Net, sACN
- AC Input Power: 100 to 240 VAC, 50/60 Hz
- Power Consumption: 1214 W

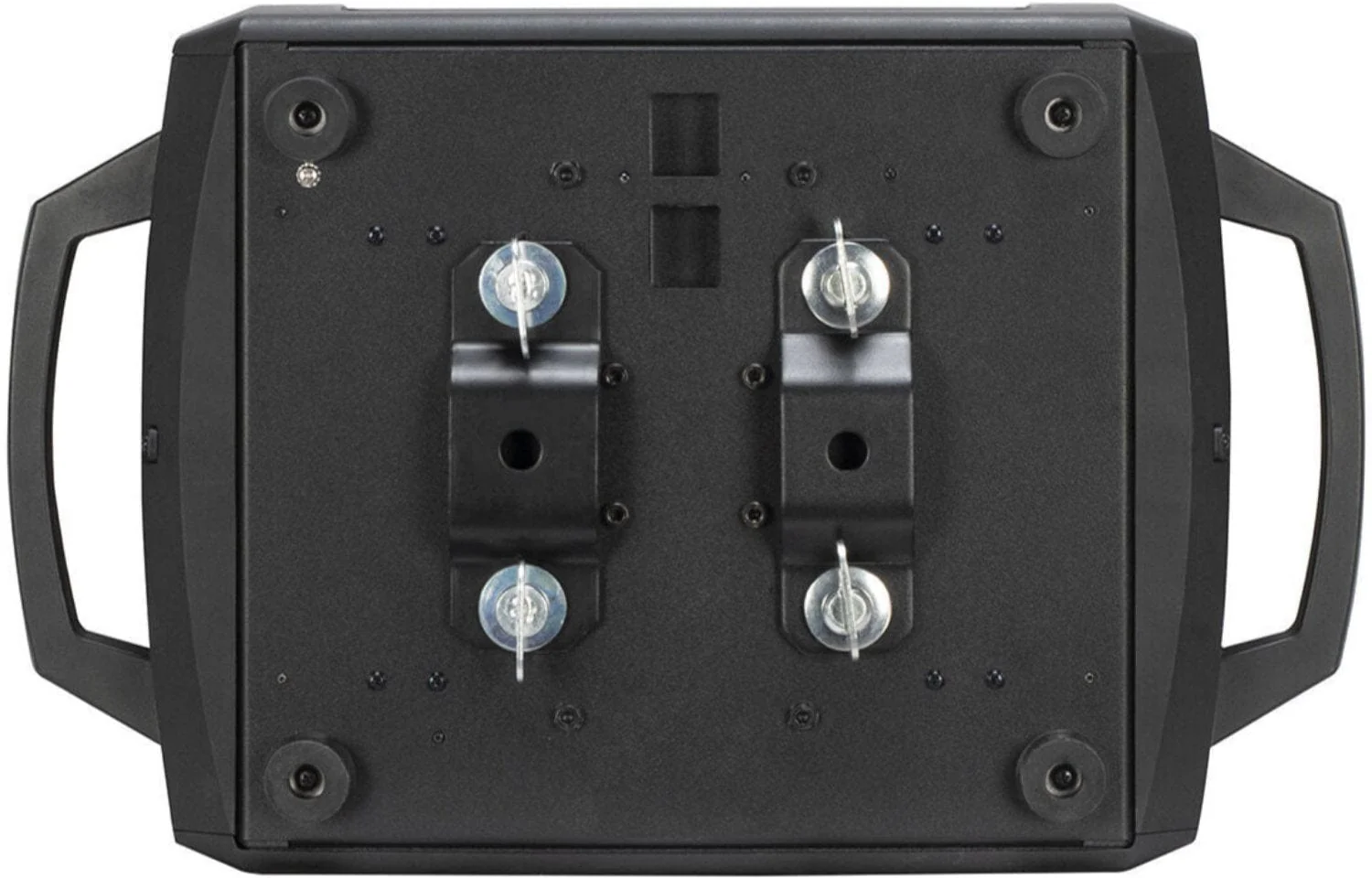

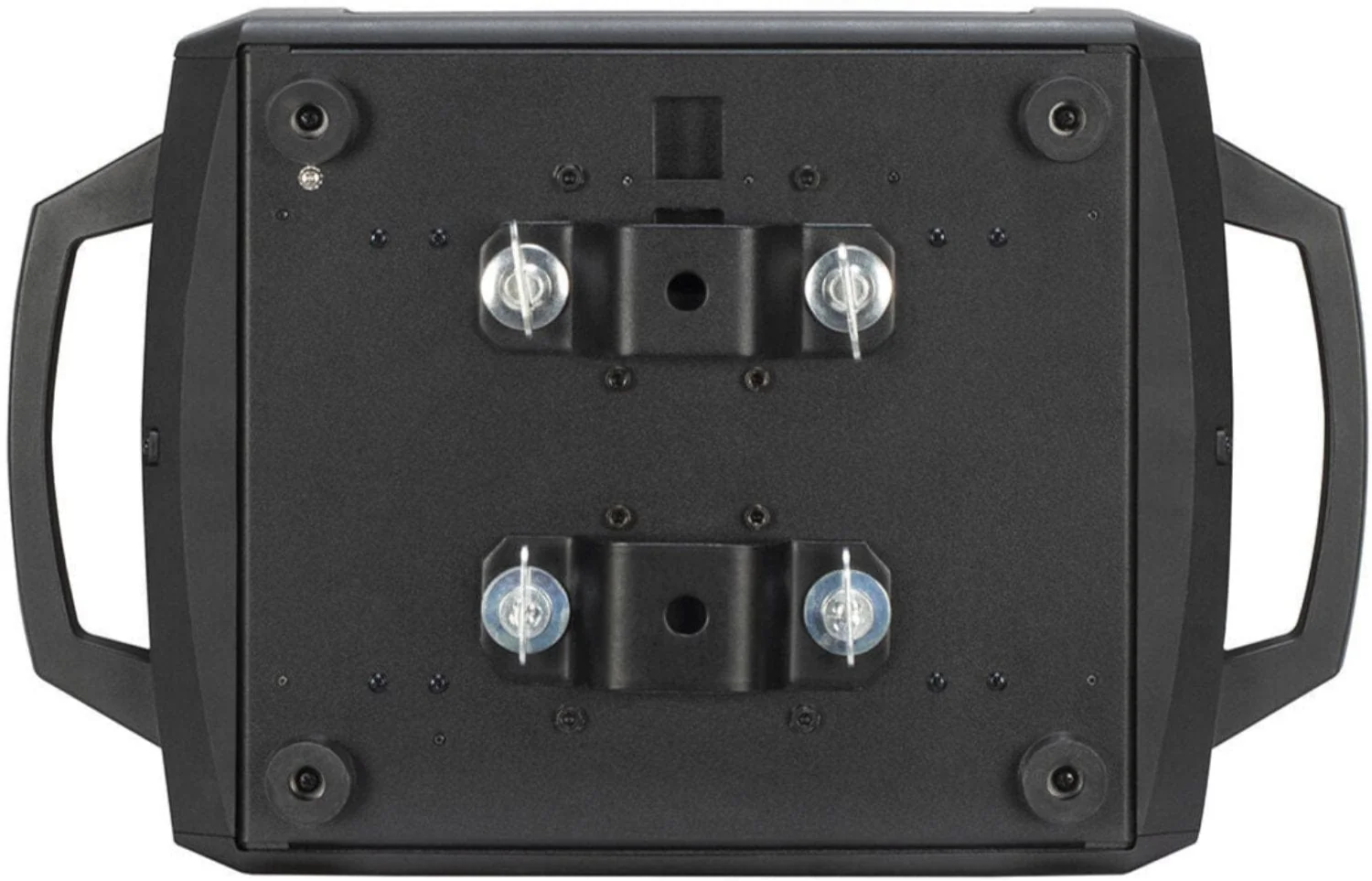

- Mounting: Floor Base, Omega Bracket
- Expected Lamp Life: 30,000 Hours
- Lumen Output: 21,000 Lumens
- Color Temperature: 2400 to 8500K
- Prism: 4-Facet Circular, 4-Facet Linear
- Operating Modes: DMX, Primary/Secondary
- Refresh Rate: 900 Hz to 25,000 Hz (Adjustable)
- DMX Channel Modes: 34 / 44 / 32 / 40-Channel

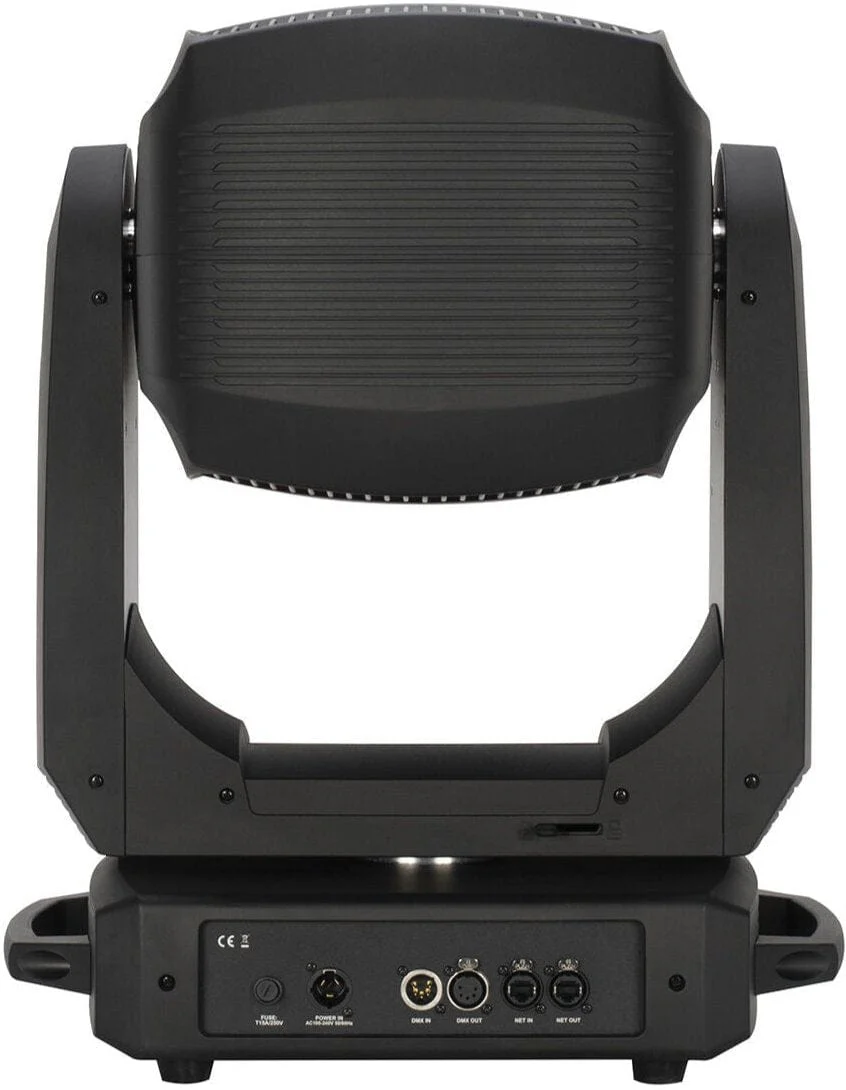

- Inputs/Outputs: XLR 5-Pin DMX, RJ45 Network Input/Output
- AC Power Connector: powerCON TRUE1
