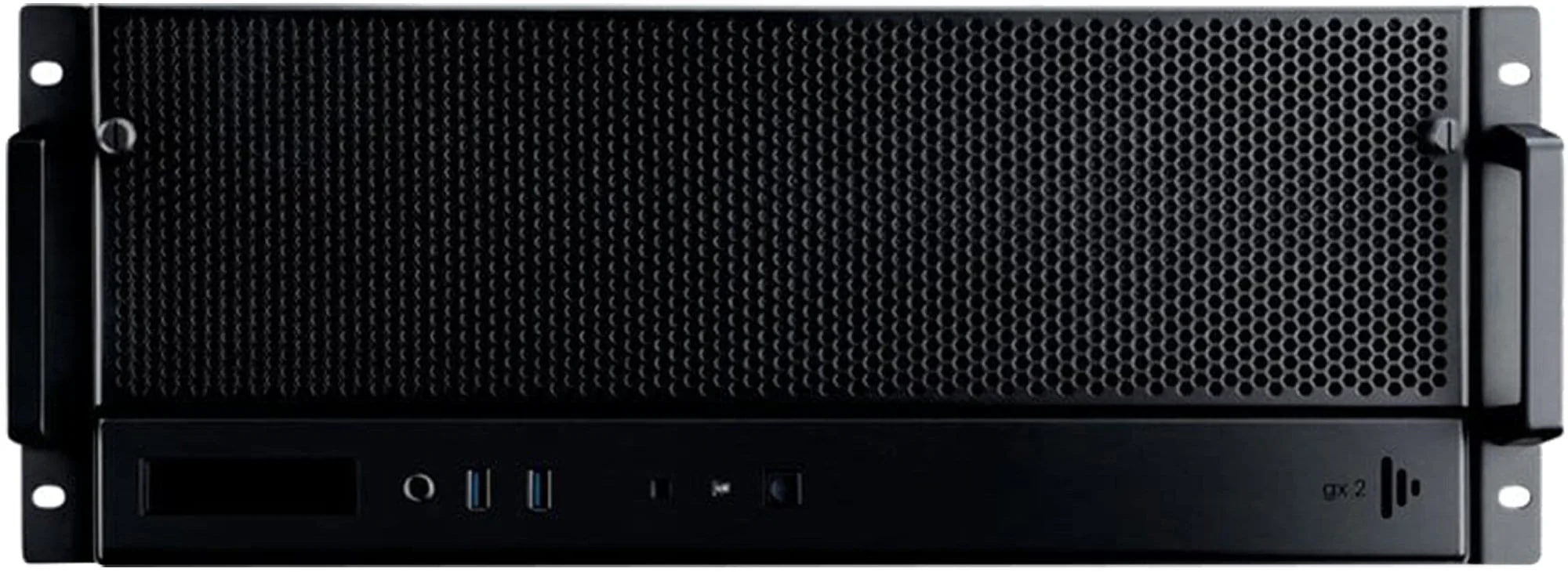

Disguise GX-2C Media Server

Disguise GX-2C Media Server

Sold equipped with 2x VFC1 HDMI2.0 cards.

To match the ever increasing creative demands, and technological disguise have launched the new gx 2c media server, featuring even more GPU processing power, more capture, more storage, as well as 10-bit and HDR support.

Specifications:

• Voltage : 100-240V, 50-60Hz
• Power Consumption : 720VA @ 240V, 50Hz (max)
• Operating System : Windows Enterprise SAC
• CPU : Intel® Xeon® Quad-Core 3.7Ghz

• Memory : 64GB DDR4 RAM
• Environmental Tolerances : Temperature : 5-35°C (40°-95°F)
• Humidity : 5%-95% (non-condensing)
• Altitude : 0-8850ft (0-2700m)
• Mounting System : 4U 19" rack mount
• Audio : RME Professional
• OS : 2x 80GB SSD (Internal System Drive, Restore Drive)
• Storage : 4TB SSD

System Connectivity I/O

• Video Output :
  • 1x DisplayPort 1.2 (GUI)
  • 2x VFC Output Slots (2x HDMI2.0 VFC Cars included)
• Video Input :
  • 8x 3G-SDI or 2x 2160p (Quad Split) (HD-BNC connectors)
• Analogue Audio :
  • 2x Balanced XLR Output
  • 2x Balanced XLR Input
  • 1x 1/4" Headphones Jack
• Digital Audio :
  • ADAT/SPDIF I/O
• MIDI :
  • 1x In, 1x Out
• General Network :
  • 1x Gigabit LAN
• Artnet :

  • 1x Gigabit LAN
• Media Network :

  • 2x 10Gb/sec LAN
• Data/Peripherals :

  • 5x USB 3.0
• Video Sync :
  • BNC Genlock
