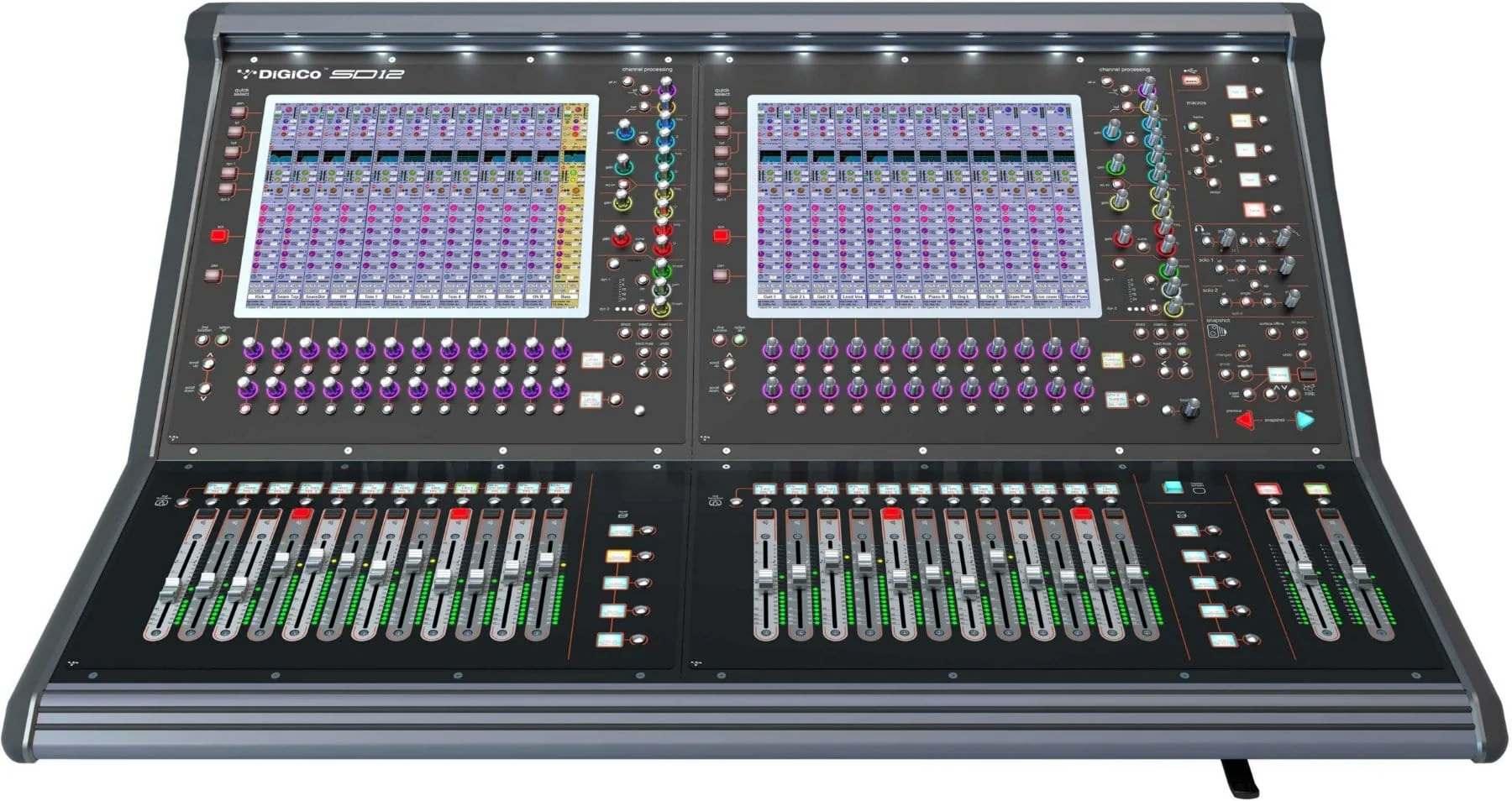

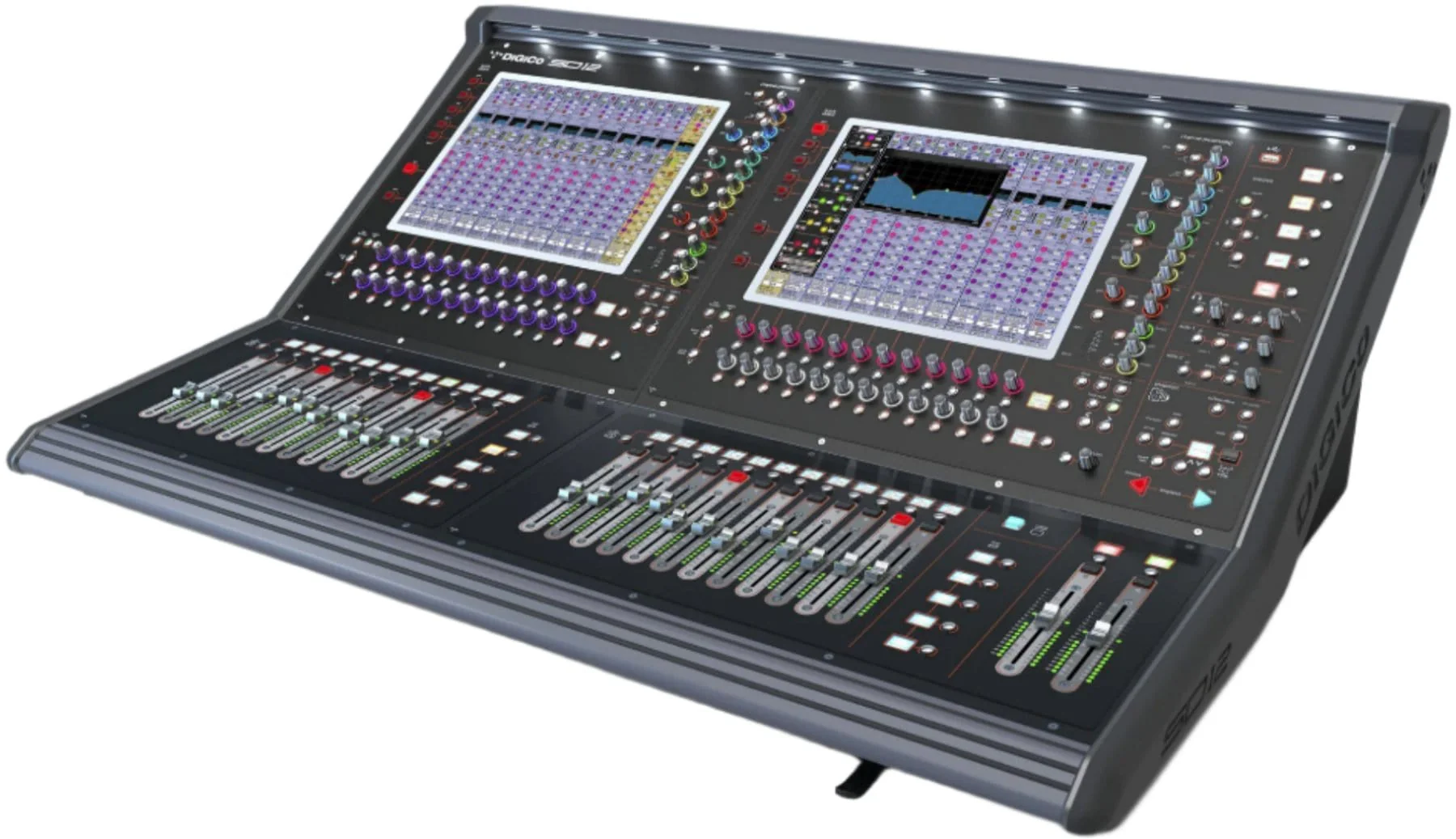

The DiGiCo SD12 is a 72 channel mixing console with 26 physical faders and 2 x 15” LCD high-resolution touchscreens. With Stealth Digital Processing and FPGA technology, the SD12 raises the bar as a multi-application console at an exceptionally affordable price point.

Features:

• 72 Input Channels with full processing
• 36 Aux/Sub-Group busses with full processing
• 12 x 8 Matrix with full processing
• MADI and One Multi-Mode Optics ST
• Assignable channel layout
• User programmable macros
• Capable of redundantly mirroring with another SD12 console
• Redundant PSUs as standard
• Snapshots for seamlessly changing many parameters at once
• 2 DMI Slots to expand the I/O as desired
• Integrated UB MADI
• Offline software
• iPad control
• SD12 96 software option
• Theatre software option

Specifications:

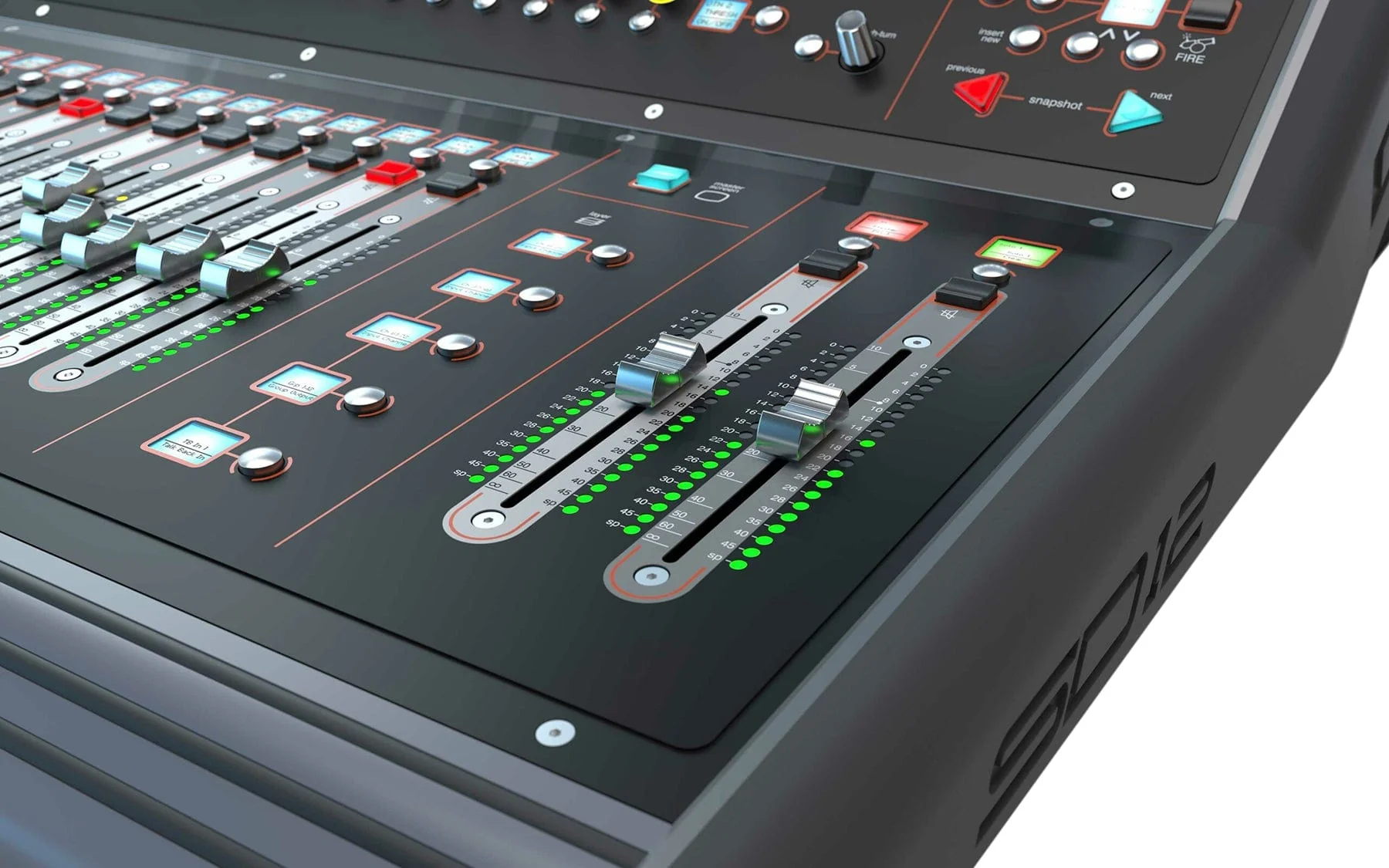

• Faders: 26 x 100mm touch-sensitive, motorised
• Screens: 2 x 15: LCD high - resolution touch screens
• Input Channels: 72
• Busses: Up to 36 plus masters Aux / Group busses with full processing Mono / Stereo / LCR
• Matrix: Up to 12 Input / 8 Outputs with full processing
• Control Groups: Up to 12, selectable for VCA-style, Moving fader, Mute Group
• Graphic Eq: 16 x 32-band, Gain +/- 12dB
• Internal FX: Up to 12 stereo effects comprising of reverbs and delay/chorus/pitch/enhancer

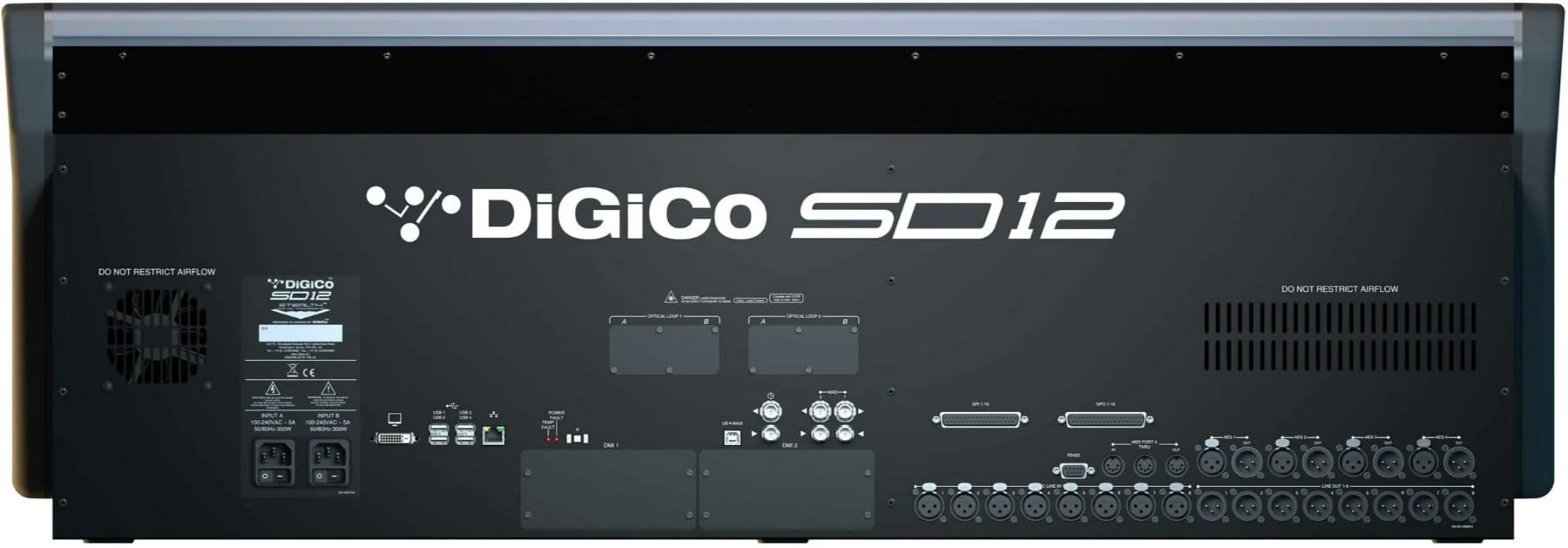

• Local I/O: 8 x mic/line I/O, 8 x AES I/O
• MADI interface: 2 Interfaces, BNC connectivity
• Optic interface: Optional
• Sampling rates: 48kHz / 96kHz
• GPIO: 2 x DSub37
• DMI: 2 x DiGiCo Multichannel Interface
• Ext Sync: Wordclock, AES, MADI, Optics
• SD12 Dimensions: 1124 mm (w) x 795 mm (d) x 389 mm (h)
• SD12 Weight: 42Kg / 96lbs.(130Kg / 287lbs. with optional flightcase)
• SD12 Flightcase: 1270 mm (w) x 570 mm (d) x 1150 mm (h)
• SD12 Power Requirements : 90V-260V, 50-60Hz, 150VA. (140W)
