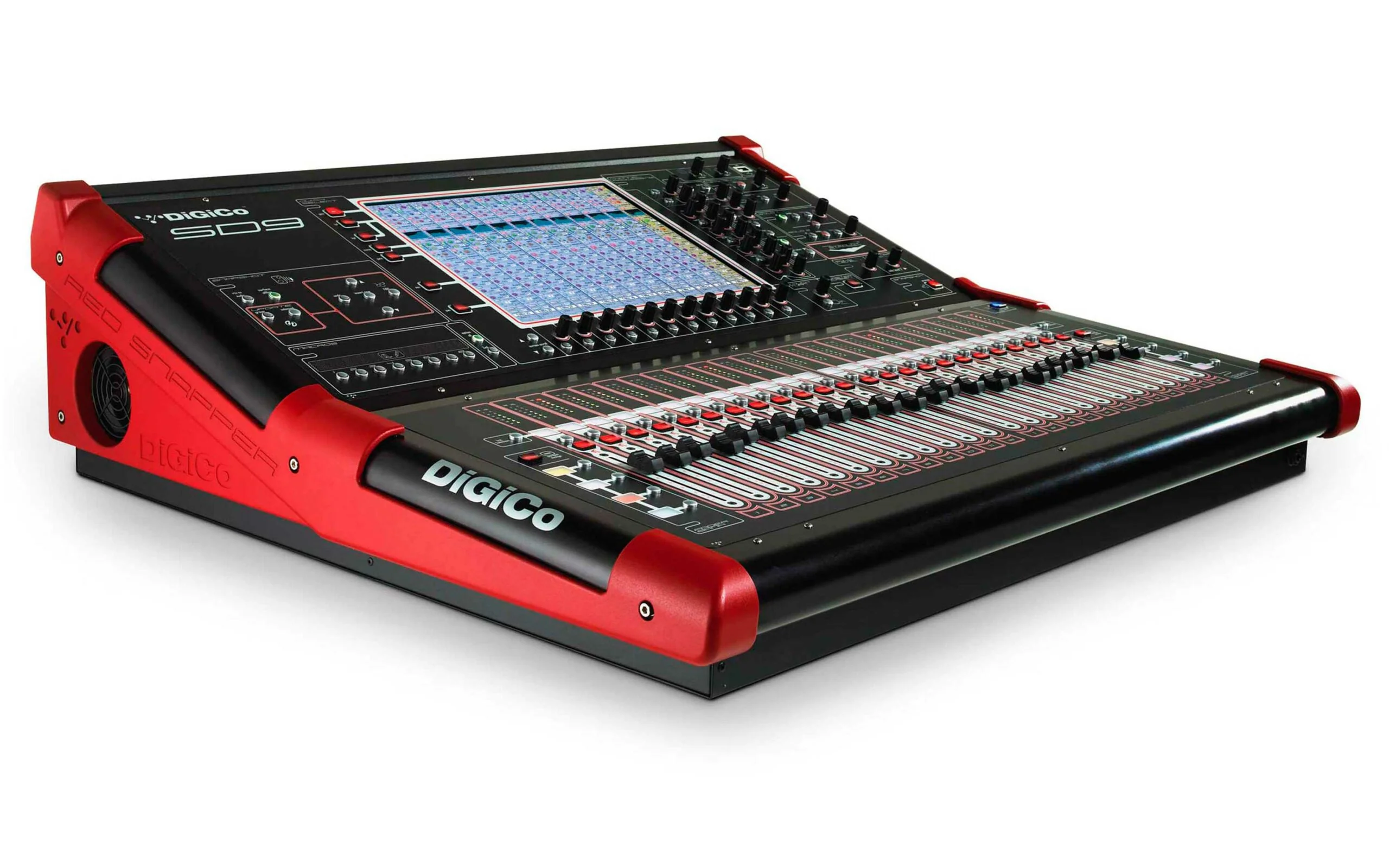

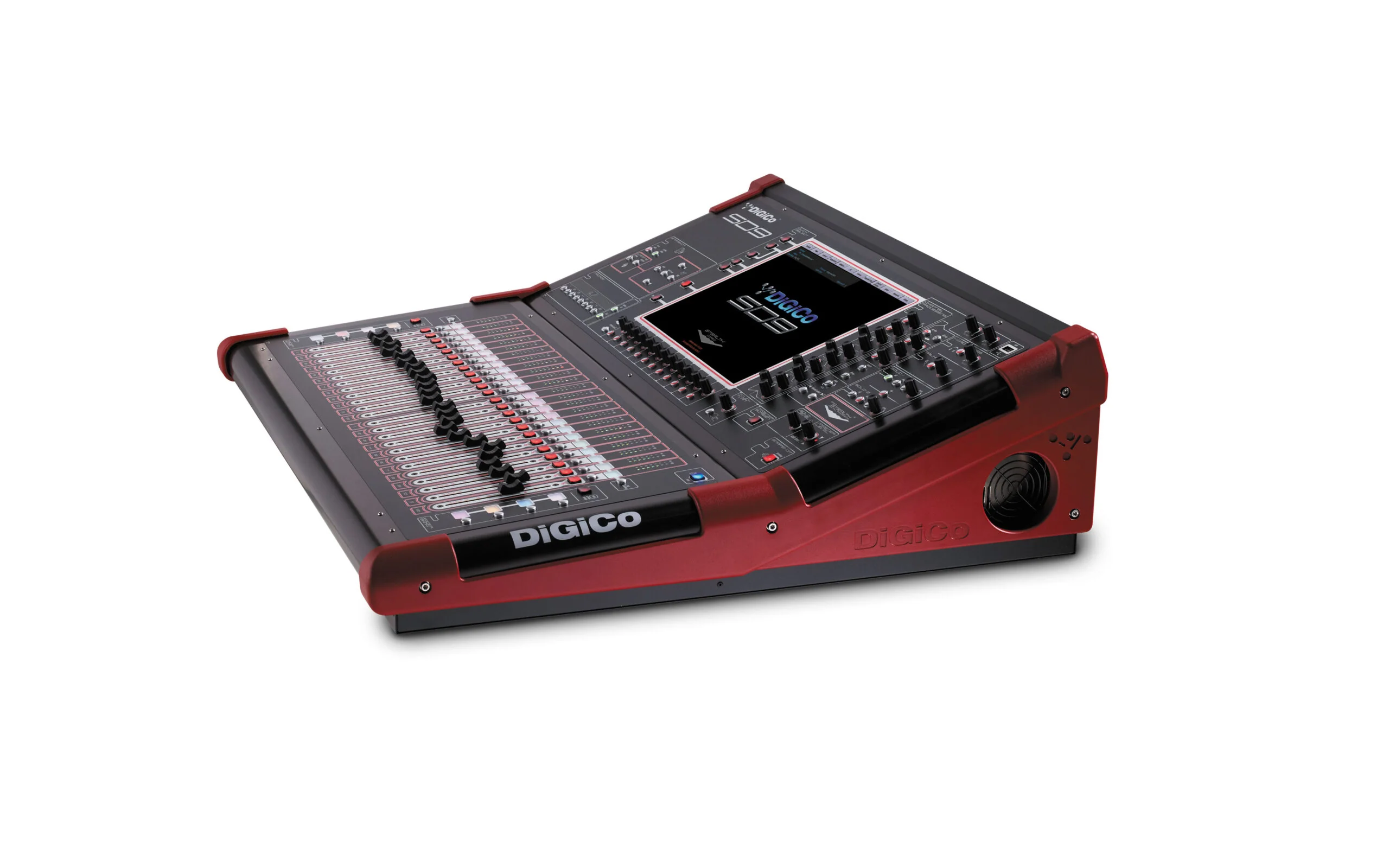

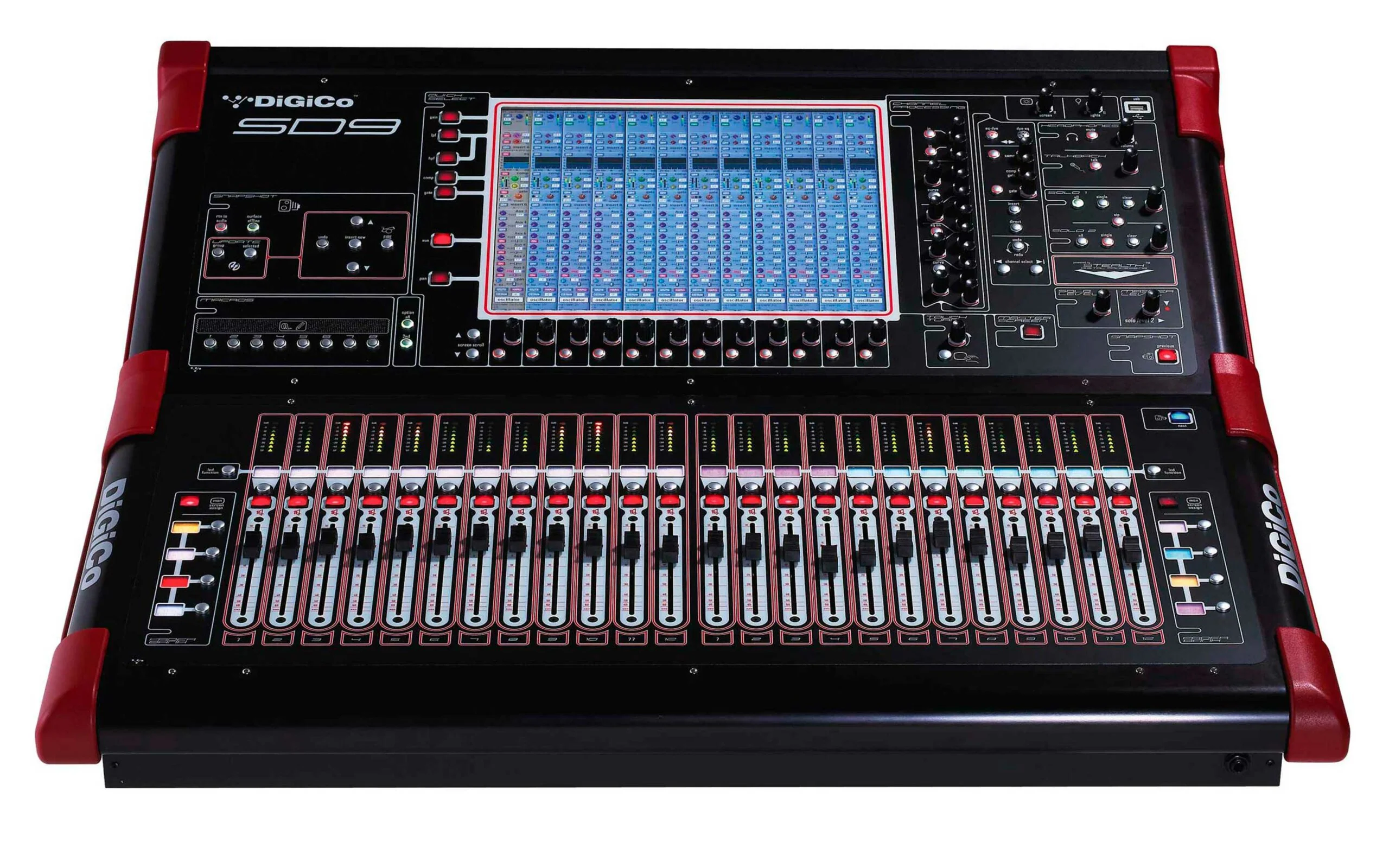

DiGiCo SD9 Digital Mixing Console

DiGiCo SD9 Digital Mixing Console

The SD9 offers 24 touch-sensitive motorised faders and a 15-inch high-resolution backlit TFT LCD touchscreen for intuitive control. It handles up to 96 channels at 48kHz/96kHz and features 155 Dynamic EQ processors, Multiband Compressors, and DiGiTuBes.

The console includes 16 gangable 32-band graphic EQs, 12 stereo effects, and 12 control groups, alongside 48 busses, a 12×8 output matrix, dual solo busses, and a Master buss.

The SD9 supports various configurations including MADI, Multi-Mode Optics ST and Multi-Mode Optics HMA.

The DiGiCo SD9 Digital Mixing Console is also available in the SD9T or SD9B versions.

Features:

• 96 Input Channels
• 48 Aux / Sub-Group Busses
• LR/LCR Master Buss
• 12 x 8 Full Processing Matrix
• 155 Dynamic Equalizers
• 48/96kHz Sample Rate

Specifications:

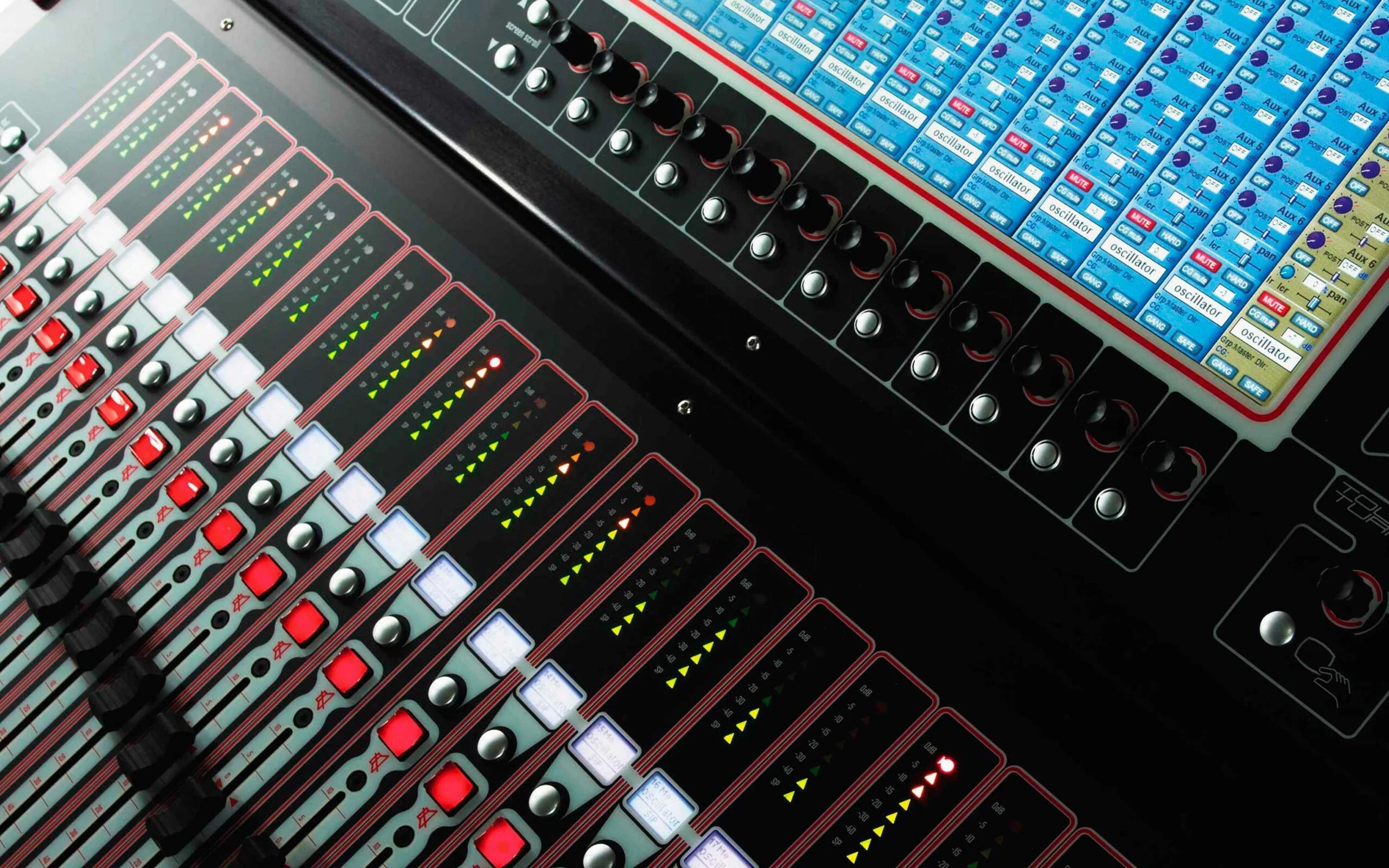

• Faders: 24 x 100mm Touch-sensitive, motorized
• Screen: 15” LCD high-resolution touchscreen
• Meters: 24 x 8-segment LED bargraph
• Input Channels: 96
• Buses: 48 Aux/Sub-Group Buses, 2 Stereo Solo Buses, 12 x 8 Matrix
• Graphic EQ: 16 x 32-band with +/-12dB gain
• Internal FX: 12 Stereo FX Processors

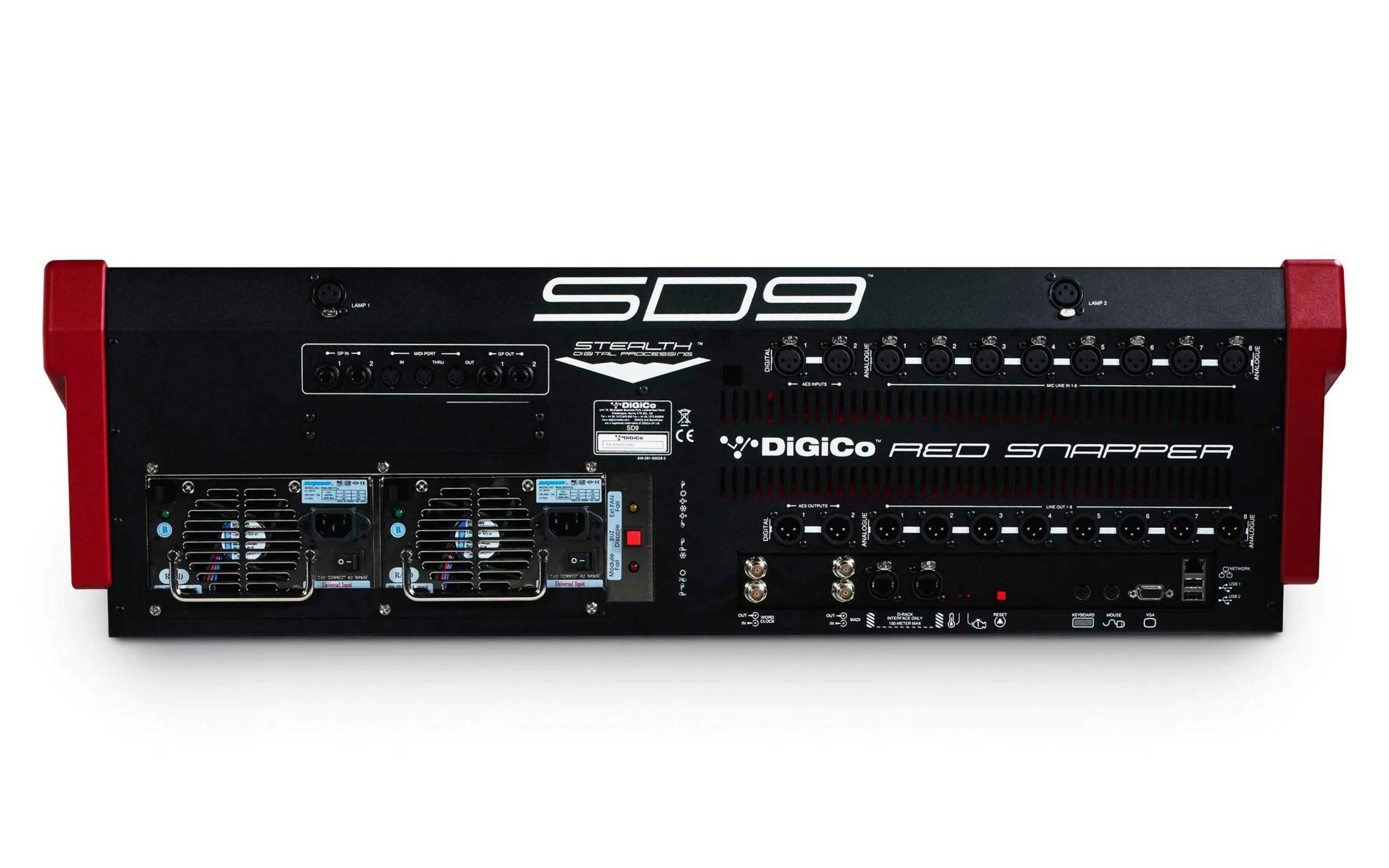

• Local I/O: 8 Mic/Line inputs, 4 AES/EBU (mono)
• MADI Interface: In/Out
• Optional Optics
• USB Ports: 3 x USB 2.0
• VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
• Headphone: 1/4” TRS Unbalanced
• Power: 90-264 VAC, 208W, Auto Sensing
• Dimensions: 878mm (w) x 785mm (d) x 262mm (h)
• Weight: 36kg (105kg with flight case)

I/O Rack:

• DiGiCo SD-Rack

• DiGiCo SD-MiNi Rack Stage Box

• DiGiCo SD-Nano Rack

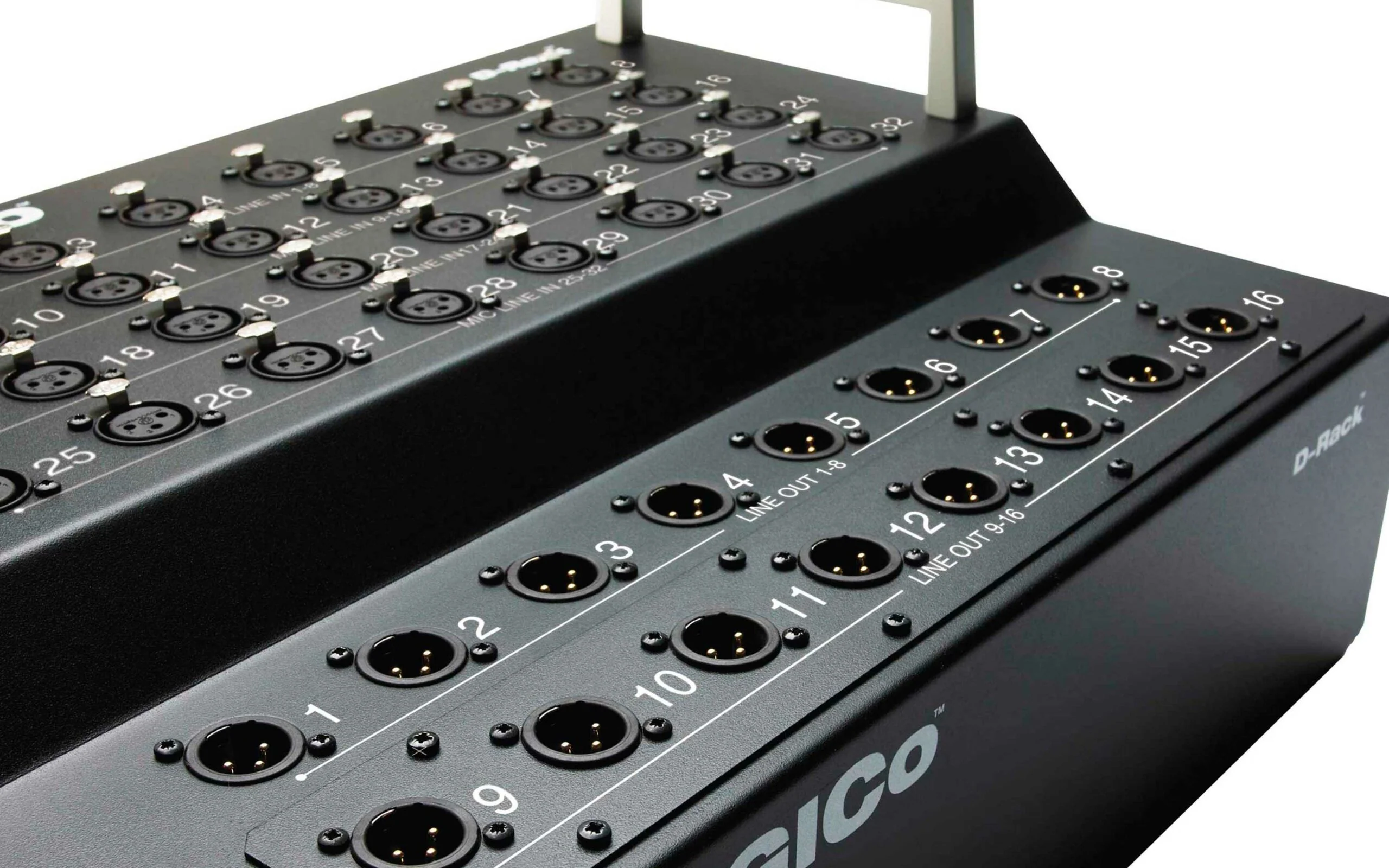

• DiGiCo D-Rack

• DiGiCo D2-Rack

• DiGiCo Purple Box Convertor

• DiGiCo Orange Box I/O Rack

• DiGiCo Little Red USB Audio Interface

• DiGiCo Little Blue Box USB Audio Interface

• DiGiCo UB MADI USB Audio Interface

• DiGiCo Waves SoundGrid I/O Rack
• DiGiCo RR-PSU Power Supply Unit
