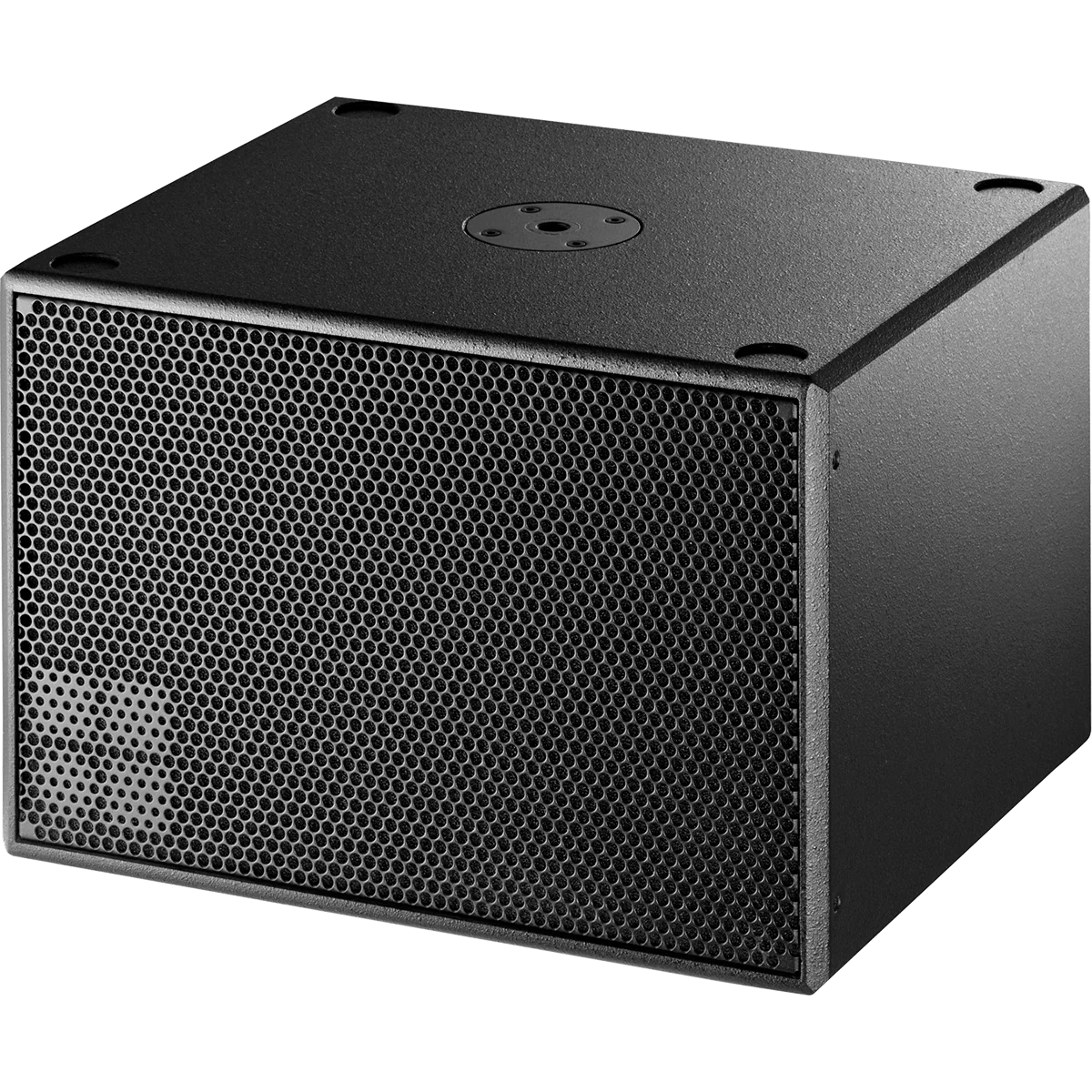

d&b audiotechnik E12X Subwoofer

d&b audiotechnik E12X Subwoofer Compact Subwoofer

The E12X-Sub is a compact, lightweight subwoofer designed for seamless integration with d&b E-Series loudspeakers.

The E12X-Sub features a built-in passive crossover network, and can operate in parallel with the E8 loudspeaker on a single amplifier channel. Alternatively, it supports active operation via its own amplifier channel without the need for any changes to the subwoofer.

The E12X-Sub is available with NL4 Connections or NLT4 F/M Connections and weather-resistant.

Features:

• Components 12″
• Dispersion Omni directional
• SPL max 127 dB
• Weight 18 kg / 40 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 45 Hz - 100 Hz
  • Frequency response (–5 dB 140 Hz mode): 45 Hz - 140 Hz
  • Max. sound pressure:
    • with 10D: 124 dB
    • with D20/5D/30D: 127 dB
    • with D40/D80/40D: 127 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Compact subwoofer
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Components: 12" driver
  • Connections:
    • Faston connector type 2
• Dimensions / weight:
  • Dimensions (H x W x D):
    • 358 x 530 x 448 mm
    • 14.1 x 20.9 x 17.6"
  • Weight:
    • 18 kg
    • 40 lb

Amplifiers:

• d&b audiotechnik D20 Amplifiers
• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik D25 Amplifier
• d&b audiotechnik D90 Amplifier
• d&b audiotechnik 10D Amplifier
• d&b audiotechnik 30D Amplifier
• d&b audiotechnik 40D Amplifier
• d&b audiotechnik 25D Amplifier
