d&b audiotechnik 5S Loudspeaker

d&b audiotechnik 5S Loudspeaker Installation Specific 2-way Compact Coaxial Loudspeaker

The 5S is a lightweight, passive 2-way loudspeaker featuring a ferrite LF driver and a coaxially mounted wide dispersion dome tweeter. It employs a 5” driver in a compact bass-reflex enclosure and offers a symmetrical dispersion pattern.

The 5S is ideal for stand-alone use or combined with different subwoofers from the xS-Series.

The 5S is available weather-resistant.

Features:

• Components 5"/1"
• Dispersion 100° conical
• SPLmax 118 dB
• Weight 2.5 kg / 5.5 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 80 Hz - 20 kHz
  • Frequency response (-5 dB CUT mode): 130 Hz - 20 kHz
  • Max. sound pressure:
    • with 10D: 117 dB
    • with D20/5D/30D: 118 dB
    • with D40/D80/40D: 118 dB
  • Cabinets per amplifier channel: 4
• Loudspeaker data:
  • Configuration: Installation specific 2-way compact coaxial loudspeaker
  • Nominal impedance: 16 Ω
  • Power handling capacity (RMS/peak 10 ms): 60/400 W
  • Nominal dispersion angle (h x v): 100° conical
  • Components:
    • 5" driver
    • 1" dome tweeter coaxially mounted
    • passive crossover network

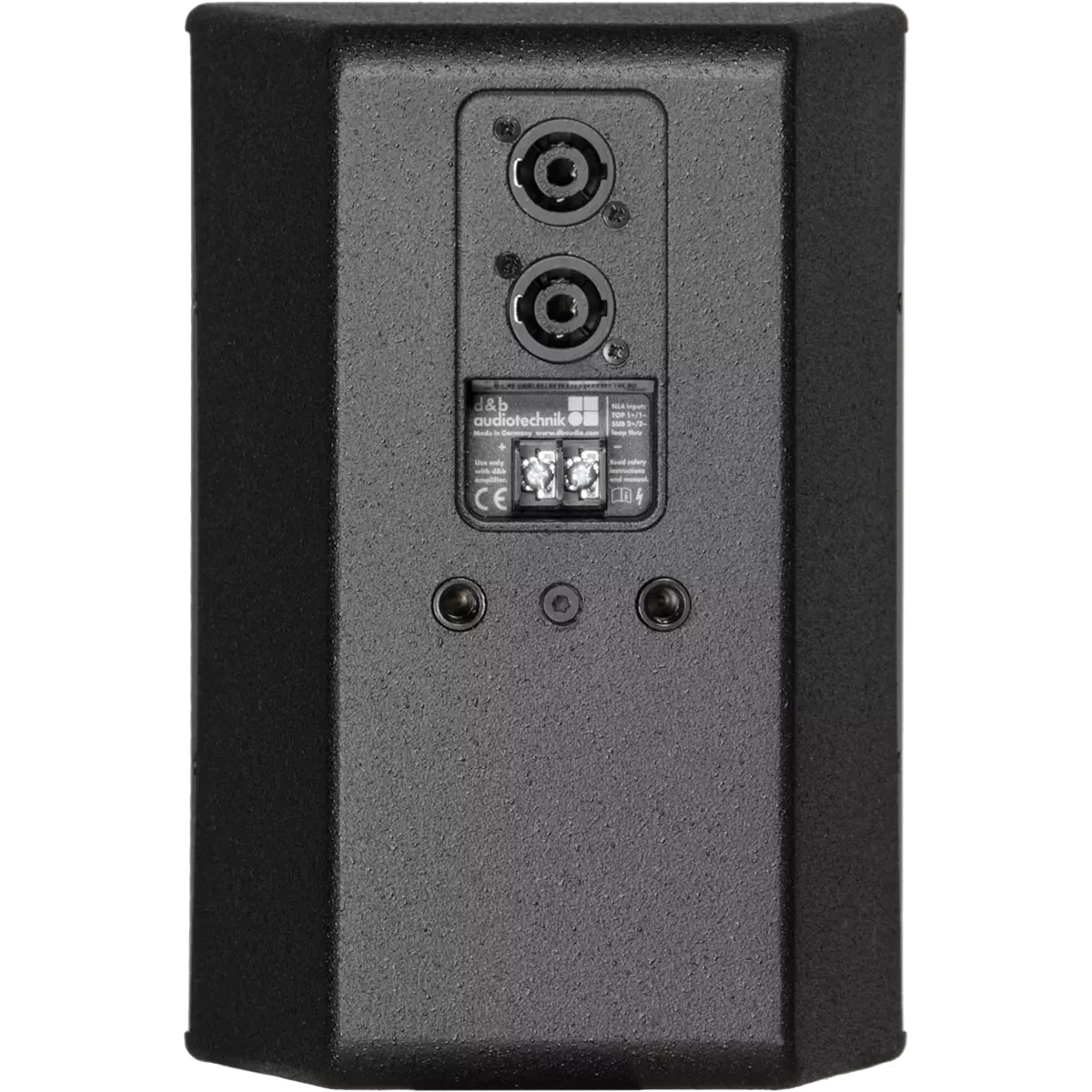

  • Connections:
    • 2 x NL4
    • screw terminal block
• Dimensions / Weight:
  • Dimensions (H x W x D): 240 x 164 x 160 mm / 9.4 x 6.5 x 6.3"
  • Weight: 2.5 kg / 5.5 lb

Amplifiers:

• d&b audiotechnik D20 Amplifiers
• d&b audiotechnik D40 Amplifier
• d&b audiotechnik D80 Amplifier
• d&b audiotechnik D25 Amplifier
• d&b audiotechnik D90 Amplifier
• d&b audiotechnik 5D Amplifier
• d&b audiotechnik 10D Amplifier
• d&b audiotechnik 30D Amplifier
• d&b audiotechnik 40D Amplifier
• d&b audiotechnik 25D Amplifier
