d&b audiotechnik 24C Loudspeaker

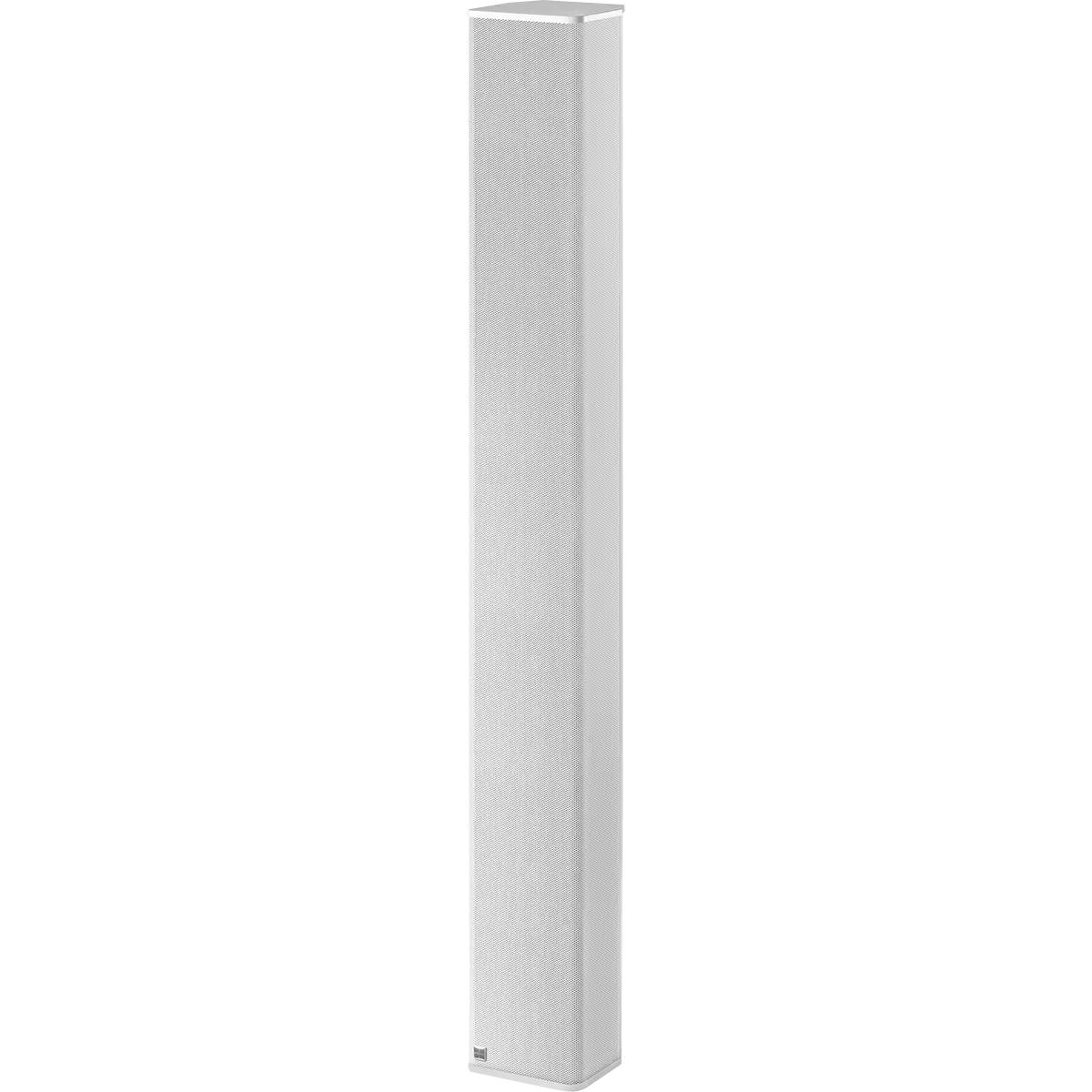

d&b audiotechnik 24C Column Loudspeaker Installation Specific Cardioid Column Loudspeaker

The 24C is a 2-way passive system designed for controlled sound dispersion. It features six 4” neodymium drivers and a HF array of six 1.1” dome tweeters, and delivers a consistent 90° horizontal coverage.

The loudspeaker has a vertically adjustable HF array (0° to -14°) and a 5° downward tilted low/mid driver beam, offering significant directivity down to 370 Hz. Its design ensures a constant directivity pattern of 90° with a broadband rear attenuation of approximately 18 dB.

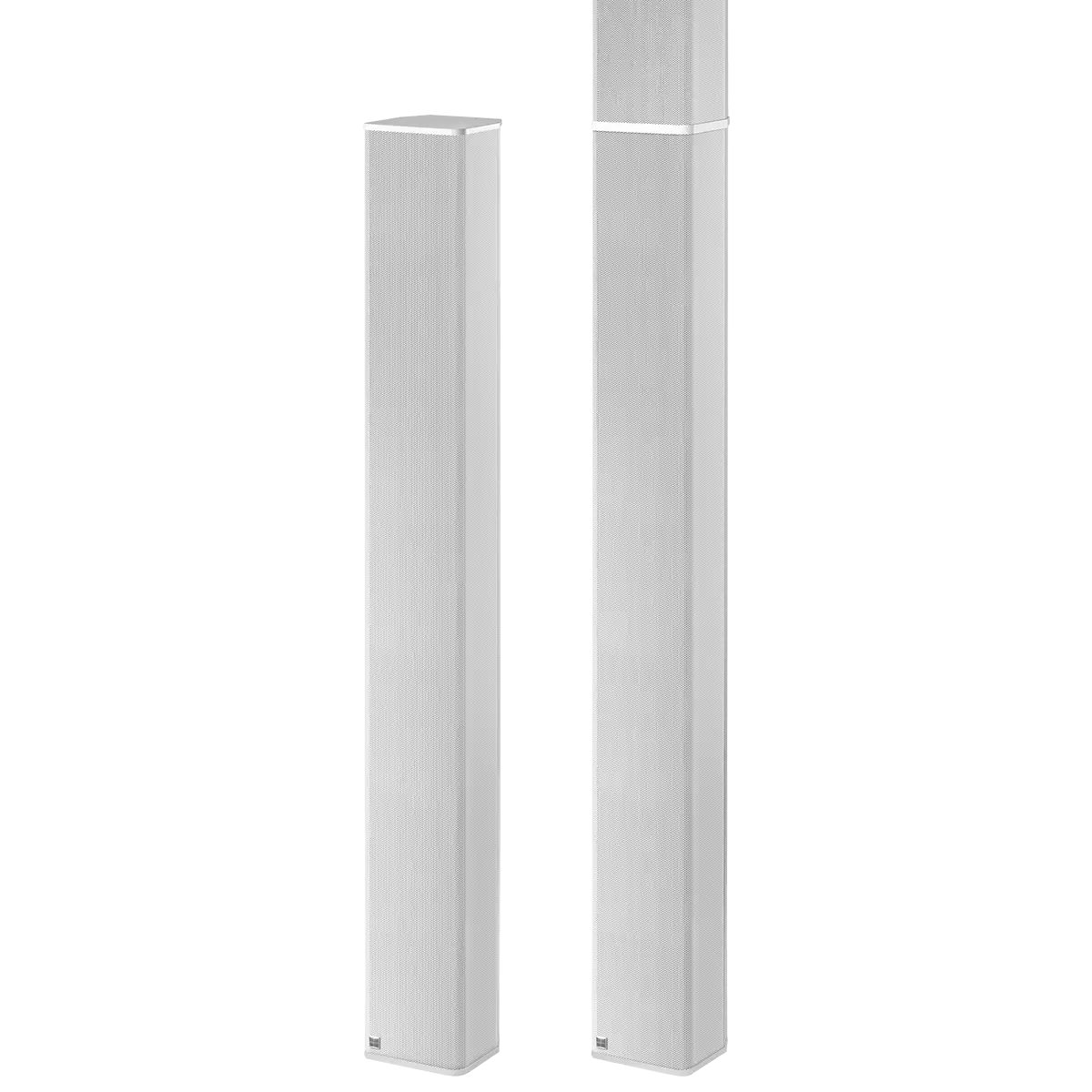

The 24C is available in black or white and weather-resistant.

Features:

• Components 6 x 4"/6 x 1.1"
• Dispersion 90° x 20°
• SPLmax 126 dB
• Weight 9 kg / 19.8 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 110 Hz - 17 kHz
  • Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
  • Max. sound pressure: 126 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: Installation specific cardioid column loudspeaker
  • Power handling capacity (RMS/peak 10 ms): 125/600 W
  • Vertical downtilt of low-mid beam: 5°

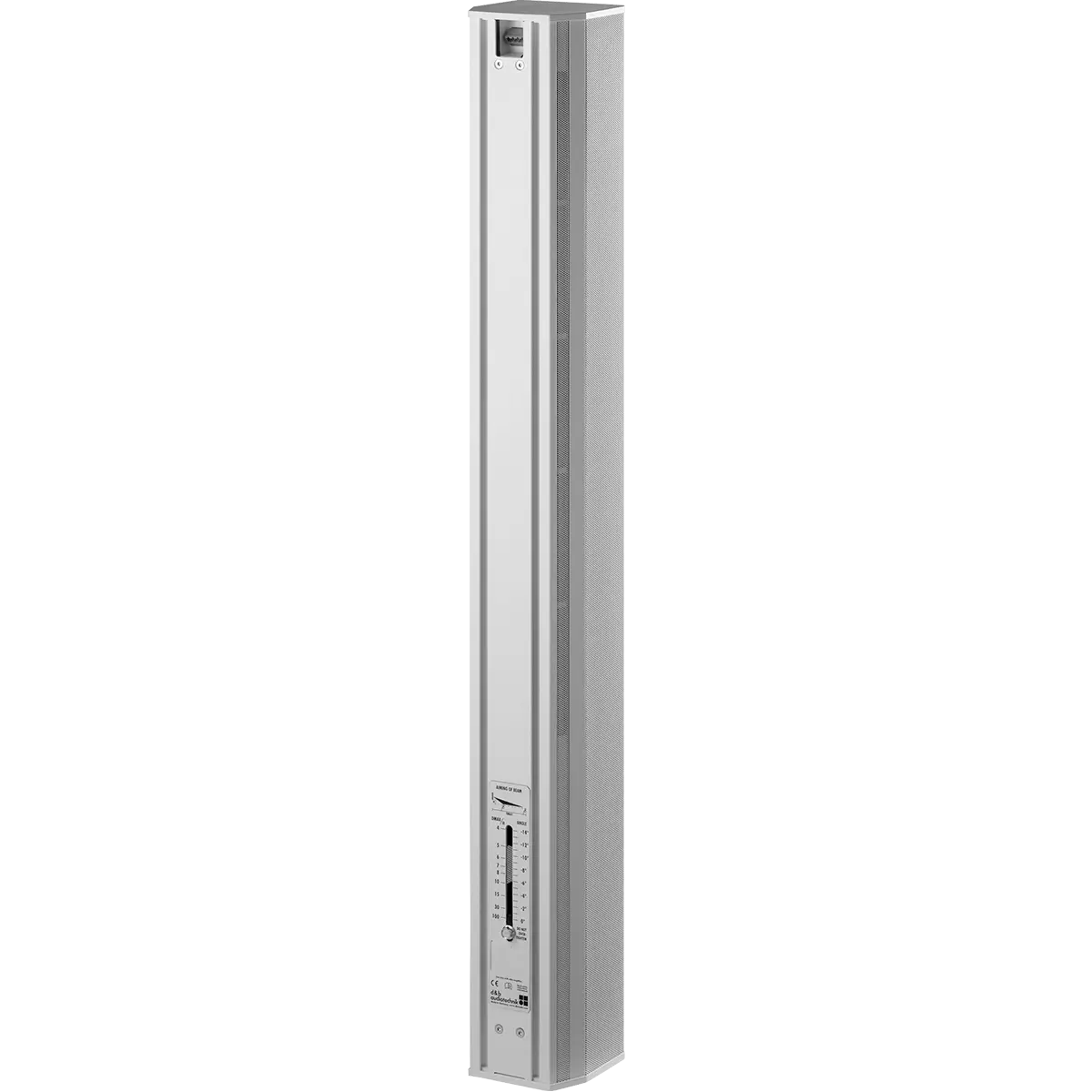

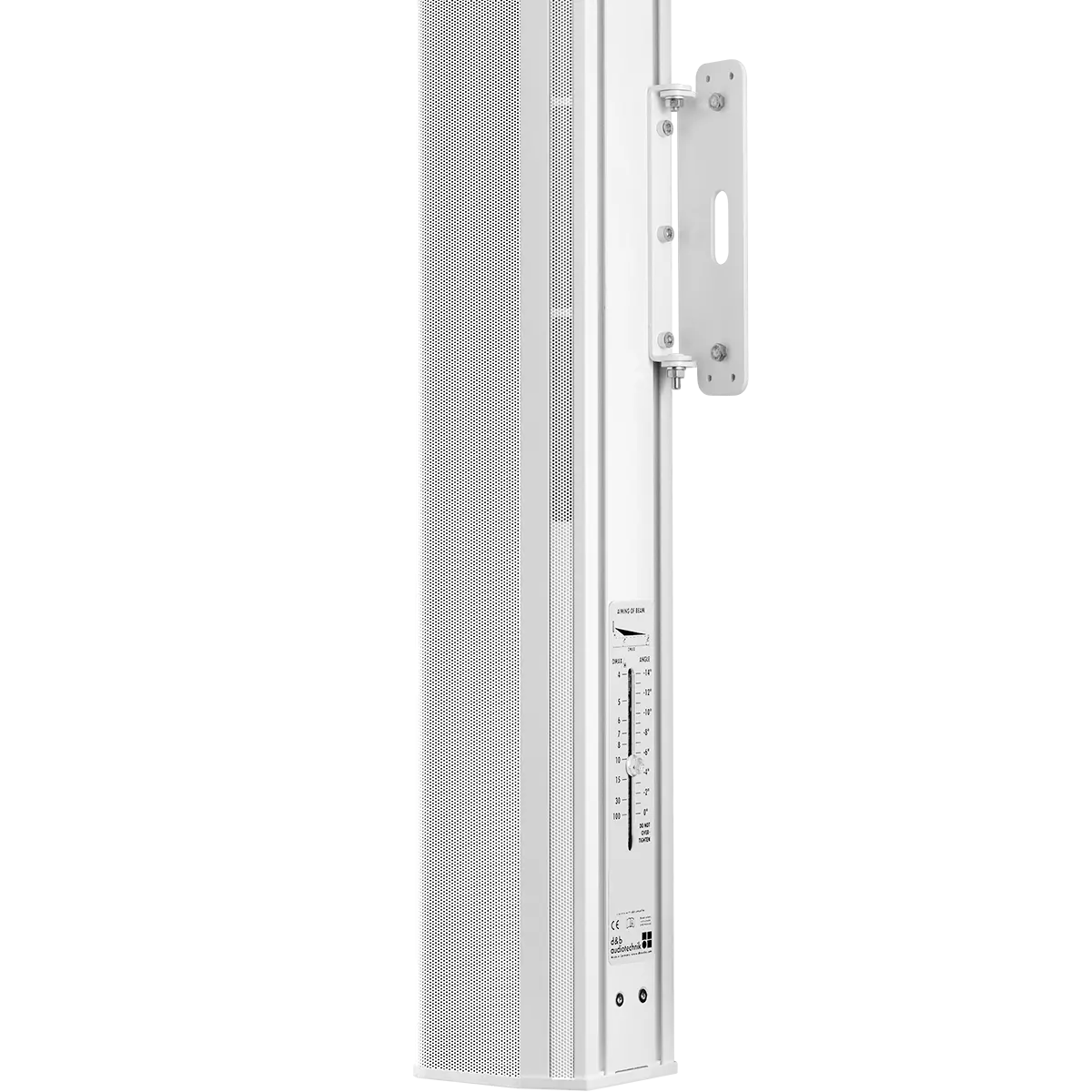

  • Vertical adjustment of HF section: 0° ‒ -14°
  • Nominal dispersion angle (h x v): 90° x 20°
  • Components:
    • 6 x 4" driver with neodymium magnet
    • 6 x 1.1" dome tweeter mounted in vertical horn array
    • Passive crossover network
  • Connections:
  • 4-pole Phoenix terminal and NL4
• Dimensions / Weight:
  • Dimensions (H x W x D):
  • 1000 x 124.5 x 124 mm
  • 39.4 x 4.9 x 4.88"
  • Weight:
  • 9 kg
  • 19.8 lb
