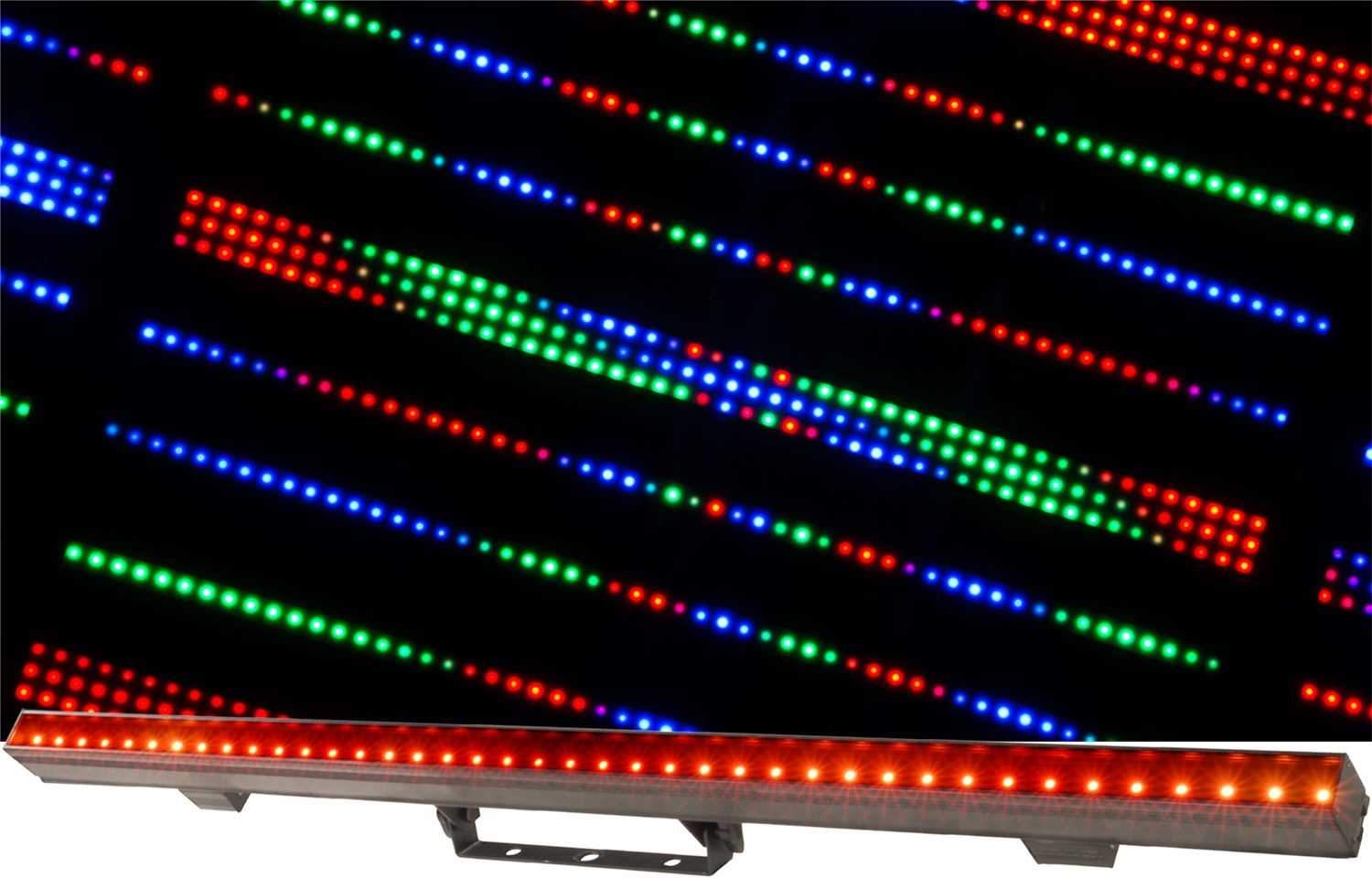

Chauvet EPIX Strip Tour 50 LED Pixel Mapping Light

Chauvet EPIX Strip Tour 50 LED Pixel Mapping Light

Épix Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125º viewing angle. Power and control it through the Épix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN).

Features:

• Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
• Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
• Increase viewing angle by using the optional dome accessory
• ÉPIX Drive 900 required for operation

Specifications:

• OPTICAL
• Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle: 125°
• Viewing Angle (with optional dome accessory): 180°
• Illuminance (white frost filter installed): 1,094 NITS
• Illuminance (with optional dome accessory): 701 NITS
• Illuminance (black stealth filter installed): 267 NITS
• Pixels: 50 x 1Pixel Pitch: 20 mm
• Refresh Rate: 4,700 Hz
• CONSTRUCTION / PHYSICAL
• Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
• Dimensions (with optional dome accessory): 39.37 x 5.31 x 1.18 in (1000 x 135 x 30 mm)
• Weight: 3.44 lb (1.56 kg)
• Weight (with optional dome accessory): 3.51 lb (1.59 kg)
• Exterior Color: Black
• Housing Material: Aluminum
• CONNECTIONS
• Data Connectors: 4-pin XLR
• Physical Linking: 18 inline Epix Strip Tour
• Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
• Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
• Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
• Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
• Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
• Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
• Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)
• CONTROL
• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels: 150
• ELECTRICAL
• Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
• Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
• Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz
• CABLE
• 4PXLREXT16IN
• 4PXLREXT5FT
• 4PXLREXT50FT
• CERTIFICATIONS / QUALIFICATIONS
• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• WHAT'S INCLUDED
• ÉPIX Strip Tour
• White Frost Filter
• REQUIRED ACCESSORIES
• ÉPIX Drive 900
