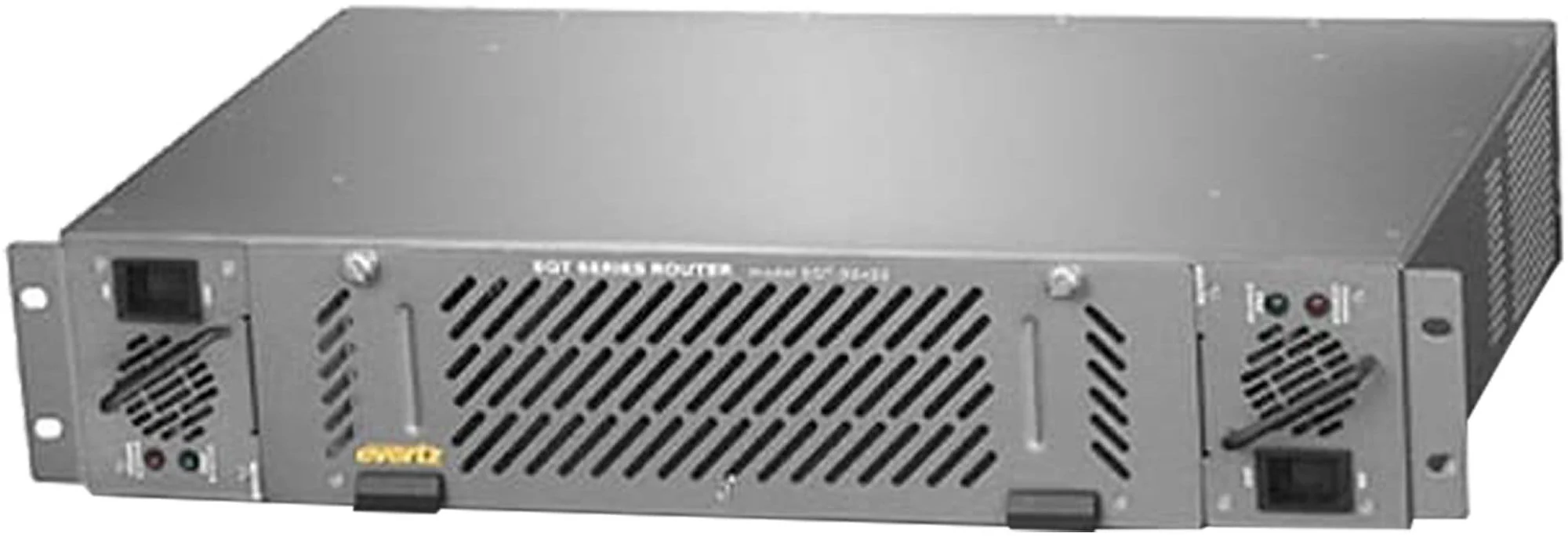

Evertz EQT-3232-3G 3G-SDI Matrix 32:32

The EQT is a routing solution for mission critical applications. Its revolutionary design provides 100% redundancy and easy access to all components for quick replacement, minimizing down time. With this, and the ability to route up to 32x32 signals in a compact 2RU frame, the EQT is ideal for all mission critical and demanding 24/7 environments. Being format independent data paths the EQT supports digital signals from 3Mb/s all the way up to 3Gb/s including SD-SDI, HD-SDI, 3G-SDI, DVB-ASI, SMPTE ST 310. The EQT router is compatible with the existing ranges of Quartz routers, remote control panels and control systems. The EQT router includes, as standard, an internal frame controller module which supports a single Q-Link, a single serial port and a single Ethernet port on the rear of the router. The input and output stage of the EQT is fixed at 32 in the coaxial version and expandable in blocks of 2 in the fiber version. It cannot be expanded beyond its frame size. The EQT router offers a full 3Gb/s bandwidth to handle uncompressed HD signals. In addition, automatic bit rate detection on the input equalizer allows any mix of 3G, HD and SD signals in the same unit. All outputs are reclocking and user configurable.

Features:

Full modular design
All modules are hot swappable
All components are front accessible
Redundant power supply
Output reclocking (On/Off)
Full VistaLINK® PRO command & control, SNMP
Ethernet, Serial RS-232/422, and Q-Link ports

Specifications:

Serial Video Inputs
- Standard: SMPTE ST 292-1, SMPTE ST 259, SMPTE ST 310, SMPTE ST 424, ASI
- Signal Level: 800mV p-p nominal
- Impedance: 10075Ω terminating
- Return Loss: 15dB (5MHz - 1485MHz)
- Cable equalization: Belden 1694A 200m @ 270MHz, 150m @ 1.5Gb/s, 100m @ 3Gb/s
- Connectors: BNC per IEC 61169-8 Annex A
Serial Video Outputs
- Standard: Same as input (Reclocking)
- Signal Level: 800mV p-p ±10%
- Impedance: 75Ω terminating
- Return Loss: 15dB (5MHz - 1485MHz)
- DC offset: 0 ±0.5V
- Connectors: BNC per IEC 61169-8 Annex A
Fiber Inputs -F Version
- Reclocked Date Rates: 270Mb/s, 1.485Gb/s, 2.970Gb/s
- Receive Sensitivity: -20dBm
- Receive Wavelength: 1260nm to 1620nm
- Connector: LC
- Fiber Type: Single Mode
Fiber Outputs -F Version
- Reclocked Date Rates: 270Mb/s, 1.485Gb/s, 2.970Gb/s
- Minimum Average Optical Power: -5dBm
- Output Wavelength: 1310nm
- Maximum Distance @ 3Gb/s: 10km
- Connector: LC/PC
- Fiber Type: Single Mode
Switching Reference
- Reference inputs: Analog 625 or 525, Tri-level HD
- Signal level: 1V p-p ±3dB
- Impedance: 75Ω
- Switching Line:
- Lines 6/319 (625)
- Lines 10/273 (525)
- Line 7 (HD)

Control

Q-Link to remote panels:
Cable Type: 75Ω video cable
Max Length: 500m

Serial:

Signal: RS-232/422

Connector: D9 socket

Ethernet: RJ45

Power

Supply: Auto ranging 100-240V AC, 50/60Hz
Power Consumption: 200 Watts
Power Fail Alarm Output
Relay Contact: Rated 250mA, 50V
Connector: Screw Terminals

Redundant PSU: Optional

Physical

Dimensions: 19"W x 10.3"D x 3.5"H (482.6mm W x 261.62mm H x 88.9mm D)
Weight: 6 kg (13.23lbs)
Operating Temp.: 0-40°C (ambient)
Specification Maintained: 10-30°C (ambient)
Humidity: 10-90% non-condensing
Ventilation: Fan assisted

Configuration

Inputs/Outputs
Coaxial: Fixed at 32x32
Fiber: Configurable in steps of 2
